Husqvarna PP1844 (1991) Tractor

Model: PP1844 (1991)

Back To Assemblies

Save Part Not Listed?
product name

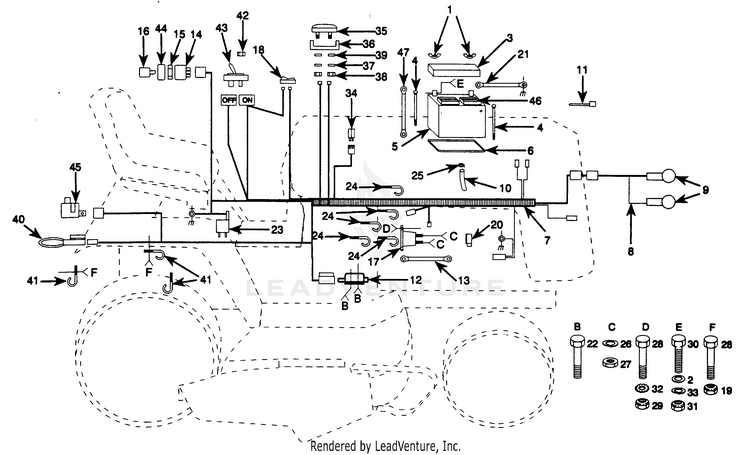

ELECTRICAL

...
...
1
KNOB BLK 1/2 NYLON HUS-532146525
...
2
Washer 9/32 x 5/8 x 16 Gauge HUS-819091016
...
3
SUB= 150109 HUS-532150109
...
4
Bolt, Carriage 1/4-20 x 7-1/2 HUS-872240460
...
5
BATTERY.DRY.30.AMP HUS-532123899
...
6
TRAY.BATTERY HUS-532007603
...
7
Harness, Ignition HUS-532128721
...
8
Harness, Socket, Light (w/4152J) HUS-532136850
...
9
Bulb Light #1156 HUS-532004152
...
10
Tube, Tray, Battery HUS-532007697
...
11
WIRE TIE HUS-532007192
...
12
Switch, Interlock, Clutch HUS-532104445
...
13
Cable, Battery (Battery to Solenoid) HUS-532124710
...
14
KIT.SWITCH.IGNITN HUS-532365402
...
15
Nut Ignition HUS-532124211
...
16
Key, Molded HUS-532122147
...
17
KIT SOLENOID .95 HUS-532146154
...
18
Switch, Light HUS-532110712
...
19
Nut, Hex 1/4-20 HUS-873680400
...
20
Cover, Terminal Red HUS-532154336
...
21
HUS-532004207
...
22
Screw, Tapping, Hex Head #10-24 UNC x 1/2 Type T HUS-817021008
...
23
Relay HUS-532109748
...
24
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
25
Clamp, Hose HUS-532109596
...
26
WASHER, LOCK 1/4 HUS-810040400
...
27
NUT.HEX..25-20.UNC HUS-532050675
...
28
HCS.1/4-20.X1/2 HUS-539990071
...
29
Nut Crownlock 1/4-20 unc HUS-873680400
...
30
Bolt, Hex 1/4-20 x 3/4 HUS-874760412
...
31
NUT.HEX..25-20.UNC HUS-532050675
...
32
WASHER, LOCK 1/4 HUS-810040400
...
33
Washer, Lock 1/4 HUS-810040400
...
34
Fuse, 30 Amp. HUS-532108824
...
35
AMMETER HUS-532009433
...
36
Bracket, Ammeter HUS-532131708
...
37
Washer, lock HUS-810071000
...
38
Nut HUS-873911000
...
39
WASHER HUS-734114601
...
40
Loop, Wire HUS-532102501
...
41
Clip, insulated HUS-532124995
...
42
HEX NUT T HUS-532004022
...
43
SWITCH-PTO HUS-532004021
...
44
Bezel, Ignition HUS-532109787
...
45
SWITCH.SNAPMOUNT.NC HUS-532421062
...
46
Cap, Battery HUS-532121264
...
47
BATTERY CABLE HUS-532004799
...
xx
Decal, Battery Not Shown. HUS-532121549
...
xx
Manual, Operator's Not Shown. HUS-532127875
...
xx
Manual, Parts Not Shown. HUS-532127969
...
xx
Sheet, Instruction, Tractor,15ø Slope Not Shown. HUS-532101539
