product name

Husqvarna PP1644JA (1994) Tractor

Model: PP1644JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CONTROL.THROTTLE HUS-532143443
...
2
HCS 1/4C X 5/8 HUS-539990072
...
4
Muffler HUS-532149723
...
5
Tube Manifold LH HUS-532136215
...
6
Tube Manifold RH HUS-532136216
...
8
Bracket Muffler Mounting HUS-532122439
...
9
HCS.1/4-20.X1/2 HUS-539990071
...
10
Shield Heat LT HUS-532143600
...
11
Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer) HUS-810040500
...
12
Bolt, Fin Hex 1/4-20 x 3/4 (Order from Engine Manufacturer) HUS-874570512
...
14
Nipple Pipe 3/8 Npt X 4-1/2" HUS-813280336
...
15
Elbow Std 90 Degree 3/8-18 Npt HUS-813200300
...
16
WASHER.3/8 HUS-539990118
...
17
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
18
Shield Heat Mech HUS-532133747
...
19
Receptacle 1/4 Turn HUS-532105839
...
20
Retainer 1/4 Turn HUS-532105838
...
22
Stud 1/4 Turn HUS-532123650
...
23
Shield Heat Browning LT/YT HUS-532128953
...
24
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
27
Clip, Fuel Line HUS-532002751
...
29
Kit Spark Arrestor (Flat Scrn) HUS-532137180
...
31
SUB= 151346 HUS-532151346
...
32
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
33
Clamp Hose Blk HUS-532123487
...
34
Pad, Spacer HUS-532106082
...
35
HCS.5/16-18X3/4 HUS-539976934
...
36
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
37
Line Fuel 54" HUS-532008543
...
39
Pad, Idler HUS-532109227
...
40
Bushing HUS-532003645
...
41
Stem Tank Fuel HUS-532139277
...
42
SUB= 132781 HUS-532132781
...
43
Nut HUS-873680600

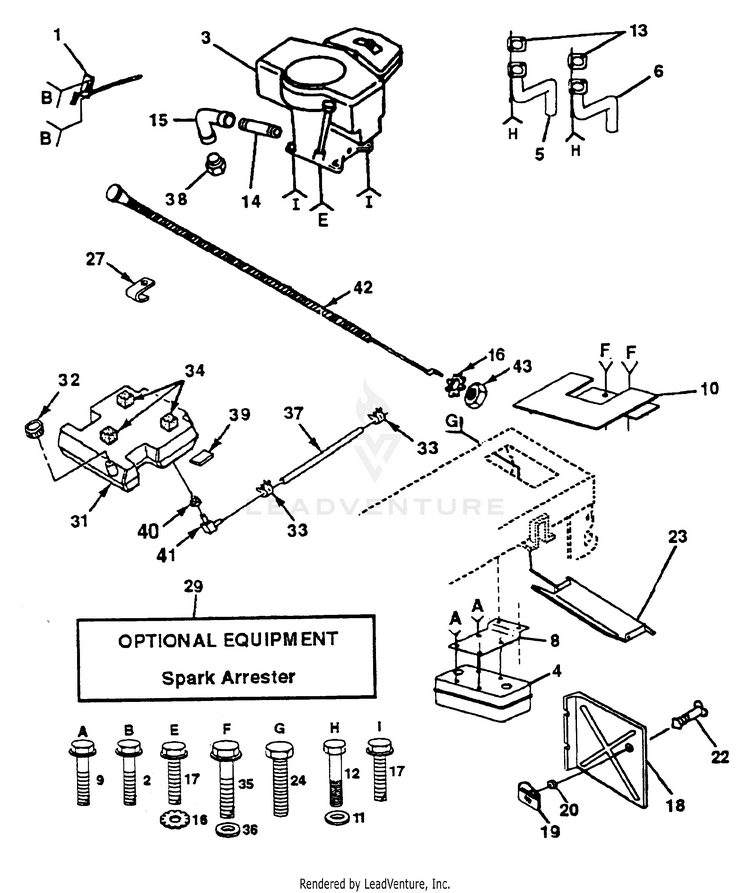

Schematic Image Zoomed
