Husqvarna PP1644J (1994) Tractor

Model: PP1644J (1994)

Back To Assemblies

Save Part Not Listed?
product name

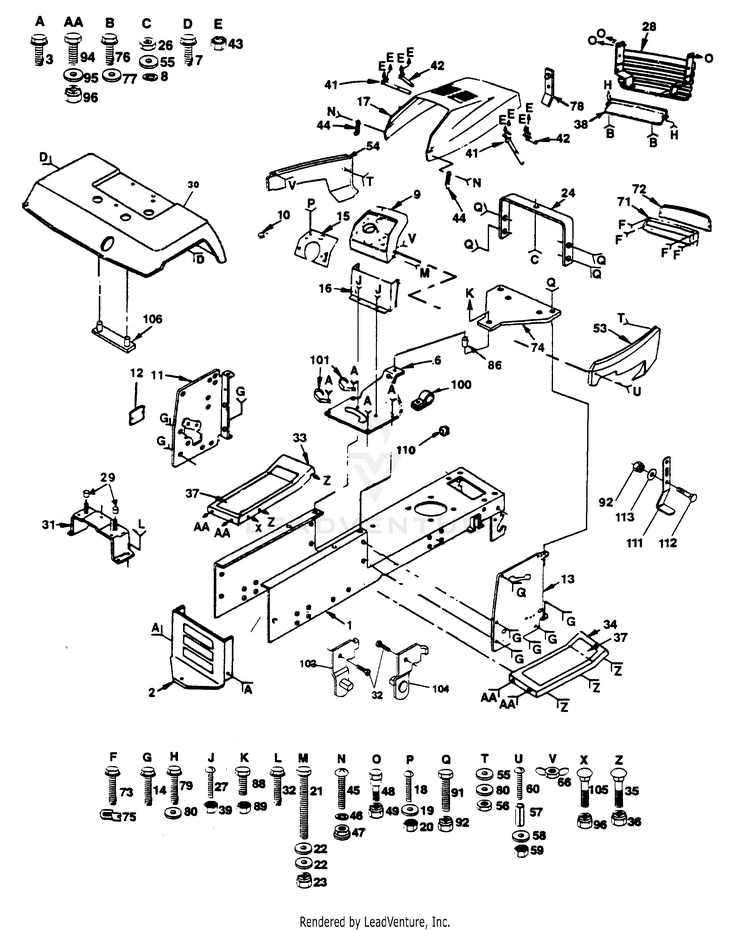

CHASSIS AND ENCLOSURES

...
...
1
Chassis Weldment 11ga HUS-532145501
...
2
HUS-532145009
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
6
Saddle Slkscr HUS-532127543
...
7
Screw Thdrol 3/8 - 16 x Ty-TT HUS-817490608
...
8
Washer Lock Hvy. Helical 1/4 HUS-810040400
...
9
Dash Black Yard Pro HUS-532140398
...
10
Plug Dash Blk 5009 Dia. E. Lift HUS-532125085
...
11
Panel Pnt Dash Lh HUS-532136967
...
12
Cover Access Black Square HUS-532121794
...
13
Panel Pnt Dash Rh HUS-532136970
...
14
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
15
Plate Silkscreened Dash HUS-532142122
...
16
Dash Pnt Lower HUS-532104805
...
17
Hood Pnt HUS-532144524
...
18
Screw Mach Trhd 5/16 - 18 UNC x 3/4 HUS-874180512
...
19
WASHER - 15X7.3X1.6 HUS-734116301
...
20
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
21
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
22
WASHER HUS-734117201
...
23
Nut HUS-873680600
...
24
Support Pnt Dash HUS-532124130
...
26
NUT.HEX..25-20.UNC HUS-532050675
...
27
Screw mach Trhd 5/16 - 18 UNC x 3/4 HUS-874180512
...
28
Grille Asm HUS-532131681
...
29
Nut Push Nylon HUS-532105531
...
30
Fender Pnt HUS-532144523
...
31
Bracket Pnt Fender HUS-532137113
...
32
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
33
Footrest Pnt Lh HUS-532124888
...
34
Footrest Pnt Th HUS-532124889
...
35
Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4 HUS-872110606
...
36
Nut HUS-873680600
...
37
Pad Footrest HUS-532133671
...
38
Strap Grille HUS-532124978
...
39
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
41
Strap Asm Pnt Hinge Rear (blk) HUS-532106784
...
42
Strap Asm Pnt Hinge Front HUS-532104618
...
43
Nut Crownlock 1/4-20 unc HUS-873680400
...
44
Latch Chute Blk HUS-532109808
...
45
Screw, Pan Hd. #10-24 UNC HUS-871191008
...
46
Washer Lock #10 HUS-810071000
...
47
NUT.WELD.#10-24 HUS-532002029
...
48
BOLT HUS-532007605
...
49
Nut Crownlock 1/4 - 20 UNC HUS-873680400
...
53
Panel Pnt Rh Side HUS-532144526
...
54
Panel Pnt Lh Side HUS-532144525
...
55
WASHER - M6 HUS-734115201
...
56
NUT.HEX..25-20.UNC HUS-532050675
...
57
Spacer Split #10 x 3/4 Cad/Zin HUS-532007206
...
58
WASHER HUS-734114601
...
59
NUT HUS-873271000
...
60
SCREW.PAN.HEAD HUS-874981024
...
66
KNOB BLK 1/2 NYLON HUS-532146525
...
71
Beze. Asem. HUS-532124392
...
72
Lens Headlight Bar Clear HUS-532106395
...
73
Screw Hex Whd Tap #10-16 x 5/8 HUS-817211010
...
74
Plate Pnt Sprt Battery (blk) HUS-532140181
...
75
Fastener "J" HUS-532104755
...
76
HCS.5/16-18X3/4 HUS-539976934
...
77
WASHER HUS-734117201
...
78
Bracket Grille Galv HUS-532132644
...
79
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
80
Washer 9/32 x 5/8 x 16 Ga. HUS-819091016
...
86
Spacer Split 59/ x 1.25 Blk/zin HUS-532121236
...
88
Bolt Fin Hex 5/16 - 18 x 2 HUS-874760532
...
89
Nut Lock Hx w/Ins. 5/16 - 18 HUS-873800500
...
91
Bolt Hex 3/8 - 16 x 3/4 HUS-874780616
...
92
Nut HUS-873680600
...
94
Bolt Fin Hex 3/8 - 16 Unc x 1 HUS-874780616
...
95
WASHER HUS-734117201
...
96
Nut HUS-873680600
...
100
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
101
Clip Insulator HUS-532126471
...
103
Bracket Asm Pivot Lh HUS-532139886
...
104
Bracket Asm Pivot Rh HUS-532139887
...
105
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
106
Strap Asm. Fender HUS-532140675
...
110
SNAP BUSHING T HUS-532009151
...
111
Stop Over Center HUS-532142992
...
112
Bolt Carriage 3/8-16 x 1 HUS-872240608
...
113
Washer 13/32 x 1 x 12 Ga. HUS-819131612
