Husqvarna PP1644J (1994) Tractor

Model: PP1644J (1994)

Back To Assemblies

Save Part Not Listed?
product name

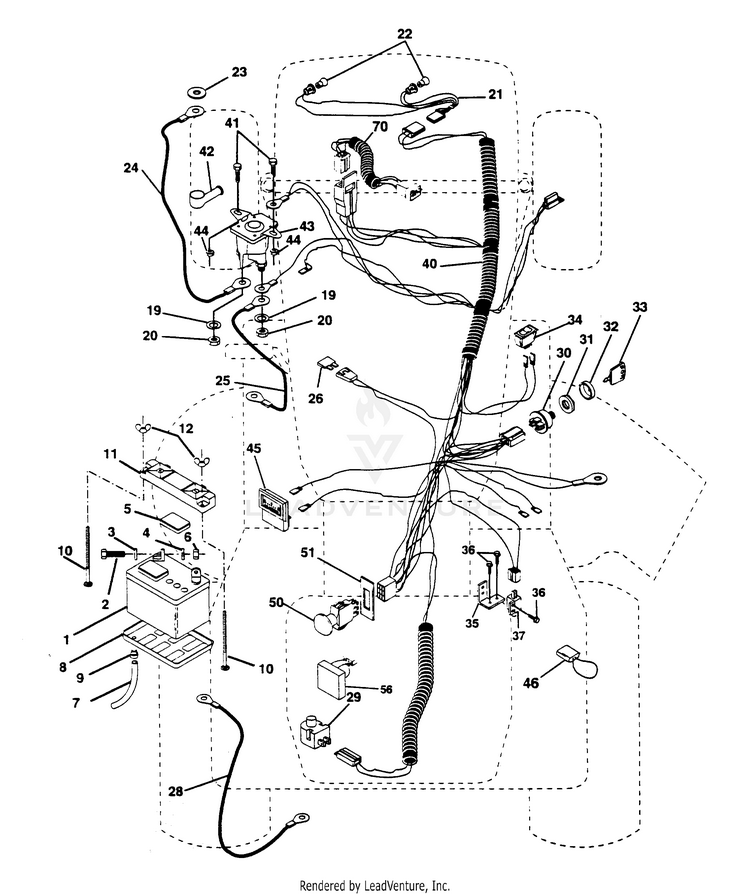

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
Bolt, Hex Head 1/4-20 x 3/4 HUS-874760412
...
3
Washer 9/32 x 5/8 x 16 Gauge HUS-819091016
...
4
Washer, Lock 1/4 HUS-810040400
...
5
Caps, Battery HUS-532121264
...
6
NUT.HEX..25-20.UNC HUS-532050675
...
7
Tube, Tray, Battery HUS-532007697
...
8
TRAY.BATTERY HUS-532007603
...
9
Clamp, Hose HUS-532109596
...
10
Bolt, Carriage 1/4-20 x 7-1/2 HUS-872240460
...
11
SUB= 150109 HUS-532150109
...
12
KNOB BLK 1/2 NYLON HUS-532146525
...
19
WASHER, LOCK 1/4 HUS-810040400
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
Harness, Socket, Light (Includes Key #11) HUS-532136850
...
22
Bulb, Light HUS-532004152
...
23
Washer, Lock, Internal Tooth 1/4 HUS-811150400
...
24
BATTERY CABLE HUS-532004799
...
25
BATTERY CABLE HUS-532004799
...
26
Fuse HUS-532108824
...
28
HUS-532004207
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
IGNITION SWITCH KIT HUS-532158913
...
31
KIT-WASHER/NUT HUS-532145774
...
32
Bezel, Ignition HUS-532141226
...
33
Key, Molded HUS-532140401
...
34
Switch, Light HUS-532110712
...
35
Bracket Switch Interlock HUS-532108236
...
36
Screw, Hex Tap #10-24 UNC HUS-817021008
...
37
Switch, Clutch, Interlock HUS-532104445
...
40
Harness, Ignition HUS-532140420
...
41
HCS.1/4-20.X1/2 HUS-539990071
...
42
Cover, Terminal Red HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
44
Nut, Hex, Keps 1/4-20 HUS-873640400
...
45
Ammeter Rectangular HUS-532122822
...
46
Protection Wire Loop HUS-532141940
...
50
PTO SWITCH HUS-532174651
...
51
Ring, Retainer PTO HUS-532140405
...
70
Harness Eng. Koh. Tw 18 AR HUS-532140427
