Husqvarna PP15H42KB (1995) Tractor

Model: PP15H42KB (1995)

Back To Assemblies

Save Part Not Listed?
product name

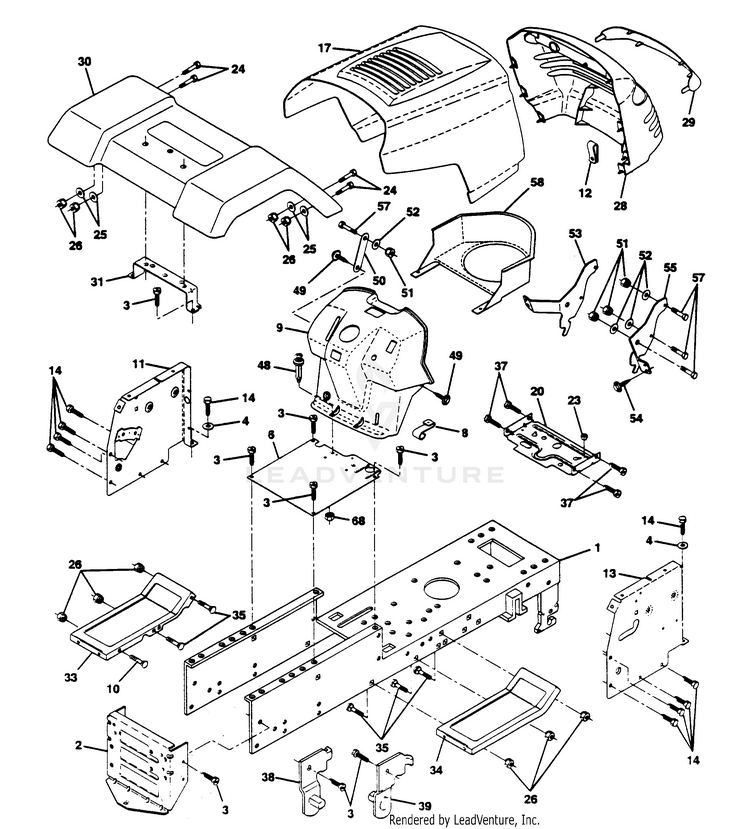

CHASSIS AND ENCLOSURES

...
...
1
Chassis Weldment 11ga HUS-532145501
...
2
HUS-532145009
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
4
Washer 13/32 x 3/4 x 16 Ga. HUS-819131216
...
5
WASHER.3/8 HUS-539990118
...
6
Saddle LT Fender Shift HUS-532145206
...
8
Clip Insulator .406 HUS-532126471
...
9
Dash Private Label HUS-532140621
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
11
Panel Pnt Dash Lh HUS-532140311
...
12
Clip Tinnerman Grille P/L HUS-532145660
...
13
Panel Dash Rh Weldment HUS-532140816
...
14
Screw Thdrol 3/8-16x1/2 Ty-tt HUS-817490608
...
17
Hood Paint Steel Private Label HUS-532144473
...
20
Plate Mtg Battery Fuel Tank Fr HUS-532180679
...
23
Bushing HUS-532124028
...
24
Bolt Fin Hex 3/8-16unc X1 HUS-874780616
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
28
GRILL/LENS ASM. HUS-532179101
...
29
Lens Grille Private Label HUS-532140273
...
30
Fender Pnt HUS-532141324
...
31
Bracket Pnt Fender HUS-532136619
...
33
Footrest Pnt Lh HUS-532147947
...
34
Footrest Pnt Rh HUS-532147948
...
35
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 HUS-872110606
...
37
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
38
Bracket, Asm. Pivot, L.H., Mower Rear HUS-532139886
...
39
Bracket, Asm. Pivot, R.H., Mower Rear HUS-532139887
...
48
Rivet Push HUS-532138096
...
49
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
50
Brace HUS-532142779
...
51
NUT.1/4C.NYLOC HUS-539976978
...
52
Washer 9/32 x 7/8 x 16 Ga. HUS-819091416
...
53
Bracket Grille Lh HUS-532144697
...
54
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
55
Bracket, Grille Rh HUS-532144696
...
57
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
58
SUB= 150127 HUS-532150127
...
68
Nut Crownlock 1/4-20 unc HUS-873680400
...
xx
SNAP BUSHING T Not Shown. HUS-532009151
...
xx
Plug Button Not Shown. HUS-532005479
