Husqvarna PP15H42KB (1995) Tractor

Model: PP15H42KB (1995)

Back To Assemblies

Save Part Not Listed?
product name

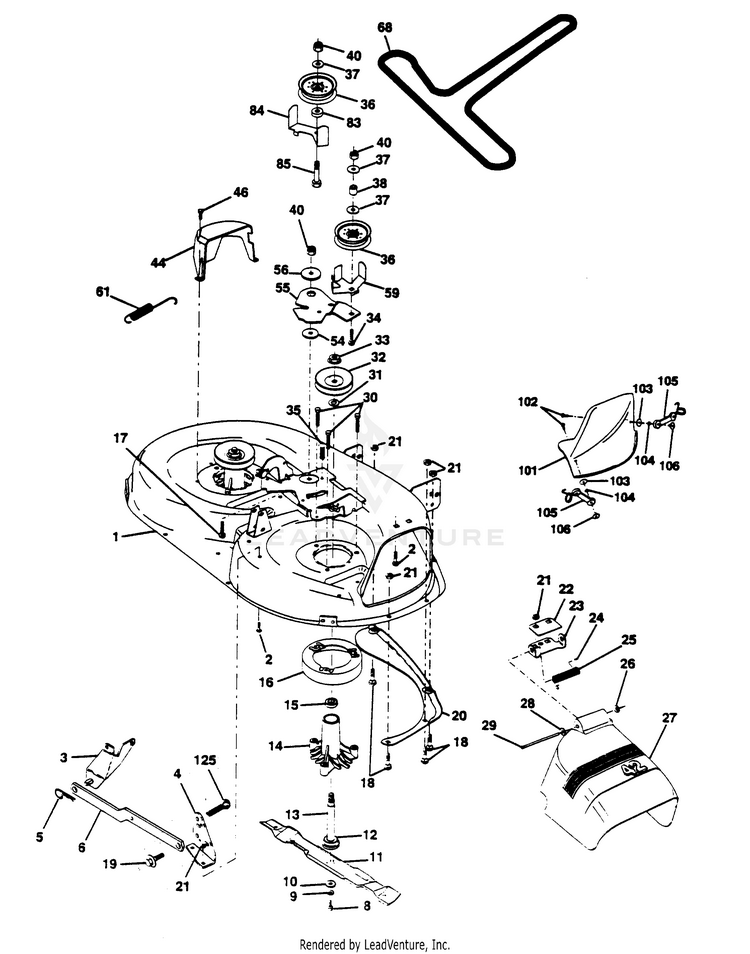

MOWER DECK

...
...
1
HSG ASM 42" MOWER DECK HUS-532176031
...
2
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
3
Bracket Asm Fr Sway Bar HUS-532138017
...
4
Bracket Asm Deck Sway Bar 42" HUS-532138440
...
5
RETAINER SPRING HUS-532085902
...
6
Bar Sway Deck HUS-532178024
...
8
Bolt 3/8-24x1 25 Gr8 Patched HUS-532850857
...
9
WASHER.3/8 HUS-539990118
...
10
Washer Hard Blade Mower Vented HUS-532140296
...
11
Blade HUS-5321341-49
...
12
BALL-BEARING 6204-2RS HUS-738220419
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
Housing Mandrel Vented(machd) HUS-532128774
...
15
Bearing Ball Mandrel HUS-532110485
...
16
Stripper, Mower HUS-532174493
...
17
Bolt Rdhd Sqnk 3/8-16 X 2-1/4 HUS-872110618
...
18
Bolt Rdhd Sqnk 5/16-18 X 5/8 HUS-872140505
...
19
Bolt Shoulder 5/16 - 18 HUS-532132827
...
20
BAFFLE.VORTEX HUS-532159770
...
21
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
22
Bracket Deflector Mower 42" HUS-532177563
...
23
Bracket Deflector Mower 42" HUS-532177563
...
24
Cap Sleeve 80x 112 Blk Mower HUS-532105304
...
25
Spring Torsion Deflector 2 52 HUS-532123713
...
26
Nut Push Phos & Oil HUS-532110452
...
27
Shield Deflector Mower 42" Blk" HUS-532130968
...
28
WASHER - 15X7.3X1.6 HUS-734116301
...
29
Rod Hinge 42" 6 75 Wlg HUS-532131491
...
30
BOLT, MANDREL HUS-532173984
...
31
SPACER, MANDREL HUS-532187690
...
32
Pulley, Mandrel HUS-532173436
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
Bolt Rdhd 3/8-16uncx1-3/4 Gr5 HUS-872110622
...
35
Fastner Christmas Tree HUS-532133835
...
36
PULLEY.IDLER.FLAT HUS-532173438
...
37
Washer 13/32 X 13/16 X 16 Ga HUS-819131316
...
38
Spacer Spring Stop Idler HUS-532132823
...
40
Nut Crownlock 3/8-16 UNC HUS-873680600
...
44
Guard Mandrel LH Black HUS-532140088
...
46
Screw Hex Thd Cut 1/4-20x5/8 T HUS-532137729
...
54
Washer Hardened HUS-532178515
...
55
CAM ROLLER KIT HUS-532151785
...
56
Spacer Retainer HUS-532165723
...
59
Guard TUV Idler HUS-532141043
...
61
Spring Ext. Elect. Clutch 38/42" HUS-532131950
...
68
V-Belt Mower HUS-532144200
...
83
Washer Sintered HUS-532120958
...
84
SUB= 156084 HUS-532156084
...
85
Bolt Rdhd Sq 3/8-16 x 2-1/4 HUS-872110618
...
101
Cover Mulching 42" Black HUS-532136418
...
102
Screw #10-24 x 5/8 HUS-871081010
...
103
Washer #10 HUS-819061216
...
104
Washer Lock #10 HUS-810071000
...
105
Latch Hook Asm. HUS-532160793
...
106
NUT.WELD.#10-24 HUS-532002029
...
125
Pin Cotter 1/4 x 1 plated HUS-876020816
...
xx
Mandrel Asm Service Not Shown. HUS-532130794
...
xx
Deck Serv 42" MB Elect TP Not Shown. HUS-532145452
