Husqvarna PP15H42KB (1995) Tractor

Model: PP15H42KB (1995)

Back To Assemblies

Save Part Not Listed?
product name

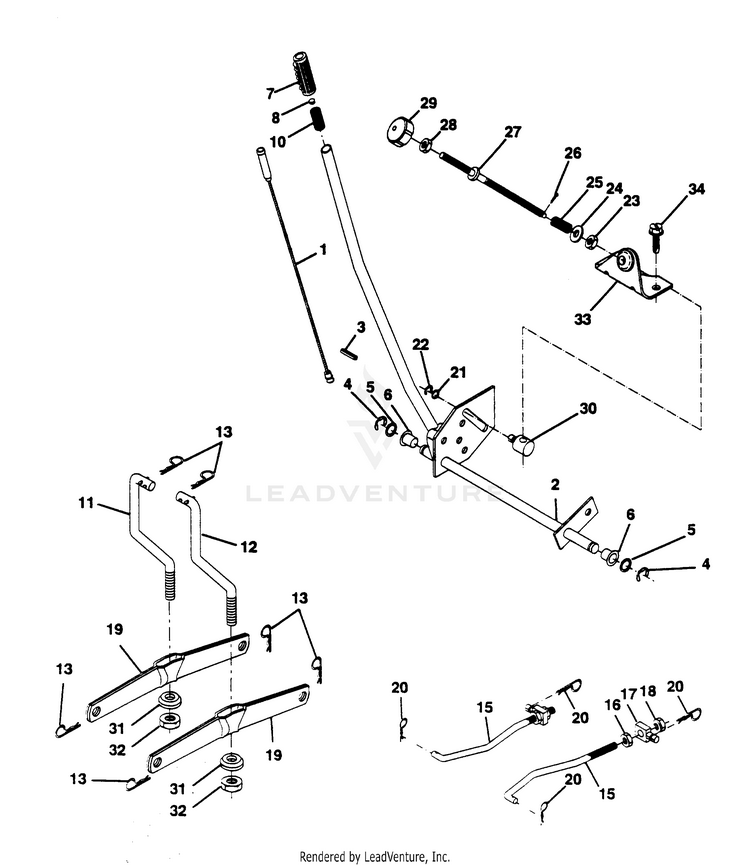

LIFT

...
...
1
Wire Asm Inner w/plunger HUS-532136973
...
2
Shaft Asm Lift LH Inf Hgt P/L HUS-532140278
...
3
Pin Groove HUS-532138284
...
4
E Ring #5133-62 HUS-812000002
...
5
Washer PLTD 21/32 X 1 X 21ga HUS-819211621
...
6
Bearing Nylon Blk 629 Id HUS-532120183
...
7
GRIP, HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
10
Spring Cprsn 3 750 Oiled HUS-532122512
...
11
LIFT LINK LH HUS-532145537
...
12
LIFT LINK RH HUS-532145536
...
13
RETAINER SPRING HUS-532085902
...
15
Link Front HUS-532127218
...
16
Nut Jam Hex 1/2-13 Unc HUS-873350800
...
17
Trunnion Blk Zinc HUS-532175689
...
18
NUT.1/2C.NYLOC HUS-539101331
...
19
Arm Suspension Rear HUS-532139868
...
20
SPRING RETAINER HUS-532003146
...
21
Washer 15/32 X 3/4 X 16ga HUS-819151216
...
22
Ring Klip HUS-812000037
...
23
Nut Special HUS-532110807
...
24
Washer 13/32 x 5/8 x 16 ga HUS-819131016
...
25
SPRING HUS-532002876
...
26
COTTER PIN HUS-532003145
...
27
Rod Adj Lift HUS-532126971
...
28
Nut, Hex 3/8-16 HUS-873220600
...
29
Knob Inf 3/8-16 UNC HUS-532138057
...
30
Trunnion Dp Stop HUS-532110810
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
32
Nut Crownlock 3/8-24 HUS-873540600
...
33
Bracket Stop Inf Hgt HUS-532140168
...
34
Screw Thdrol 3/8-16 x 1/2 HUS-817490608
