Husqvarna PP15H42KB (1995) Tractor

Model: PP15H42KB (1995)

Back To Assemblies

Save Part Not Listed?
product name

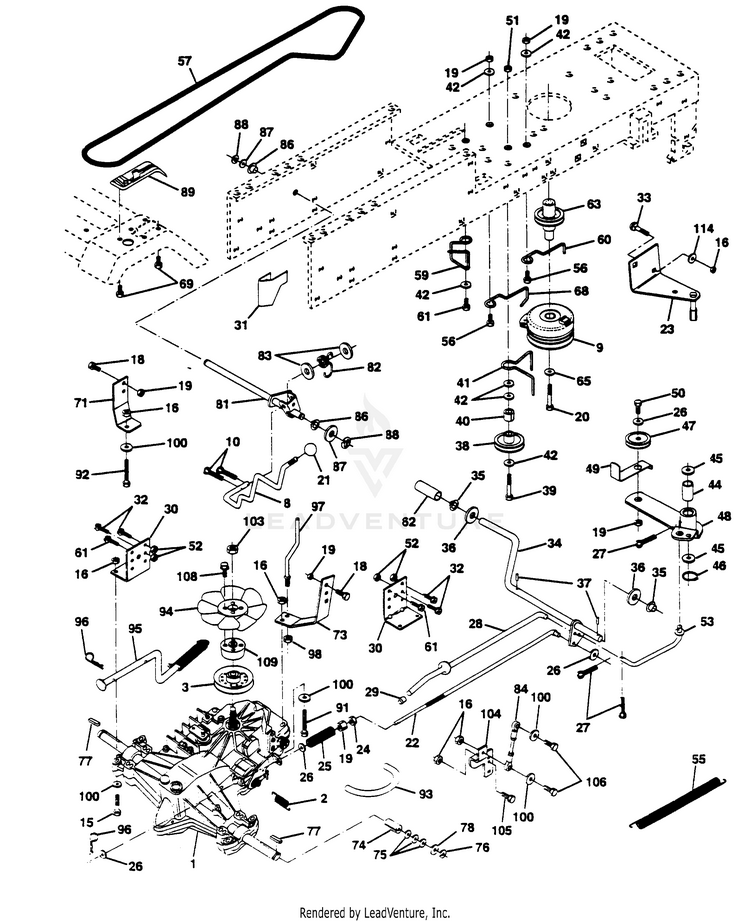

DRIVE

...
...
1
Transaxle Assembly 1-5/8 TT HUS-532140607
...
2
Spring, Return, Brake HUS-532142431
...
3
Pulley, Transaxle HUS-532144698
...
8
Rod Shift Fender LT HUS-532141003
...
9
Clutch, Elect. EVX LT Mag 5217-2 HUS-532145028
...
10
Pin Cotter 1/8 x 1 CAD HUS-876020416
...
15
Bolt Fin Hex 5/16-18 Unc HUS-874780544
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
18
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
19
Nut HUS-873680600
...
20
SUB= 150280 HUS-532150280
...
21
Knob, Duckhead 1/2-13 HUS-532121274
...
22
Rod, Brake Hydro HUS-532145627
...
23
BRACKET, ASM CLUTCH MTG HUS-532154978
...
24
Nut, Hex 3/8-16 HUS-873220600
...
25
SPRING, BRAKE ROD HUS-532151332
...
26
Washer HUS-819131316
...
27
Pin Cotter 1/8 x 3/4 CAD. HUS-876020412
...
28
Rod, Parking Brake HUS-532145204
...
29
Cap, Parking Brake HUS-532071673
...
30
Bracket, Transaxle HUS-532130807
...
31
Keeper Belt Lh HUS-532127275
...
32
HCS.5/16-18X3/4 HUS-539976934
...
33
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
34
Shaft, Foot Pedal HUS-532149001
...
35
Bearing, Nylon HUS-532120183
...
36
Washer HUS-819211616
...
37
DRIVE PIN HUS-532002882
...
38
Pulley, Idler, Flat HUS-532123674
...
39
Bolt HUS-874760644
...
40
Spacer, Split HUS-532124965
...
41
Keeper, Belt Retainer HUS-532109070
...
42
WASHER HUS-734117201
...
44
Bearing, Nylon HUS-532105706
...
45
Washer, Hardened HUS-532110812
...
46
Ring, Klip HUS-812000039
...
47
Pulley, Idler V Groove HUS-532139245
...
48
Bellcrank Assembly HUS-532123789
...
49
Retainer, Belt HUS-532123205
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
51
Nut HUS-873680600
...
52
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
55
Spring, Return, Clutch HUS-532105709
...
56
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
57
V-Belt, Ground Drive HUS-532141416
...
59
Keeper, Center Span HUS-532169691
...
60
Keeper, Belt Engine HUS-532105730
...
61
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
62
Cover, Pedal HUS-532008883
...
63
Pulley, Clutch Electric EVX HUS-532145868
...
65
LOCKWASHER.7/16 HUS-539990247
...
68
Keeper Belt Engine HUS-532121218
...
69
Screw HUS-532142432
...
71
Strap Torque Lh Hydro HUS-532141417
...
73
Strap Torque Rh Hydro HUS-532141418
...
74
Spacer, Split HUS-532121199
...
75
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
76
E-Ring HUS-812000001
...
77
Key, Square HUS-532123583
...
78
Washer 25/32 x 1-5/8 x 16 Gauge HUS-532121748
...
81
Shaft Asm. Cross Hydro HUS-532141420
...
82
Spring Torsion T/A HUS-532123782
...
83
BUSHING HUS-734117771
...
84
Rod, Tie Hydro HUS-532141423
...
86
Bushing Rod Steering 629/632 ID HUS-532071208
...
87
Washer 21/32 x 1-1/4 x 16 Ga. HUS-819212016
...
88
Ring Klip #5304-62 HUS-812000008
...
89
HUS-532153764
...
91
Bolt Fin Hex 5/16-18 x 2-1/4 HUS-874780536
...
92
HCS.5/16-18X1 1/2.GR5 HUS-539976935
...
93
Line Fuel Hydro 4" HUS-532142564
...
94
Fan, Hydro 7" HUS-532140462
...
95
CONTROL.ASM.BYPASS.HYDRO.99 HUS-532167696
...
96
RETAINER M HUS-532004497
...
97
Keeper Belt Rh Hydro HUS-532144201
...
98
Nut Keps Hex 3/8-16 Unc HUS-873510600
...
100
WASHER - 15X7.3X1.6 HUS-734116301
...
103
Nut Nylon Insert 1/2-20 Unf. HUS-873940800
...
104
Arm, Control Hydro HUS-532141421
...
105
Screw Cap Hex 5/16 x 18 x 1 HUS-871070516
...
106
Bolt 5/16-18 x 1-1/4 HUS-874520520
...
108
Screw Hex Wh Hd #10-24 x HUS-817541026
...
109
Adaptor Fan Hydro LT Hyd Alum HUS-532145098
...
114
Washer 11/32 x 3/4 x 14 Ga. HUS-819111214
