Husqvarna PP15H42KB (1995) Tractor

Model: PP15H42KB (1995)

Back To Assemblies

Save Part Not Listed?
product name

SEAT

...
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
2
Bracket Pivot Seat 8 720 HUS-532140551
...
3
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
4
Washer 13/32 X 3/4 X 10 Ga HUS-819131610
...
5
Clip Push-In Hinged HUS-532145006
...
6
Nut HUS-873680600
...
7
SRPING.SEAT HUS-539110300
...
8
Screw 3/8-16 x 1-1/2 Smgml Tap/R Z HUS-817000616
...
9
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
10
PAN, SEAT HUS-532195530
...
11
Knob Seat Adj. Wingnut HUS-532166369
...
12
Bracket Mounting Switch HUS-532174648
...
13
Bushing Snap Blk Nyl 50 Id HUS-532121248
...
14
Bolt Rdhd Sht Nk 1/4-20x1-3/8 HUS-872050411
...
15
Spacer Split 28x 96 Yel Zinc HUS-532121249
...
16
Spring Cprsn 1 27 Blk Pnt HUS-532123740
...
17
Nut Crownlock 1/4-20 unc HUS-873680400
...
21
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
22
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
24
Washer 17/32 X 1-3/16 X 12 Ga HUS-819171912
...
25
Bolt Shoulder 5/16-18 X 62 HUS-532127018

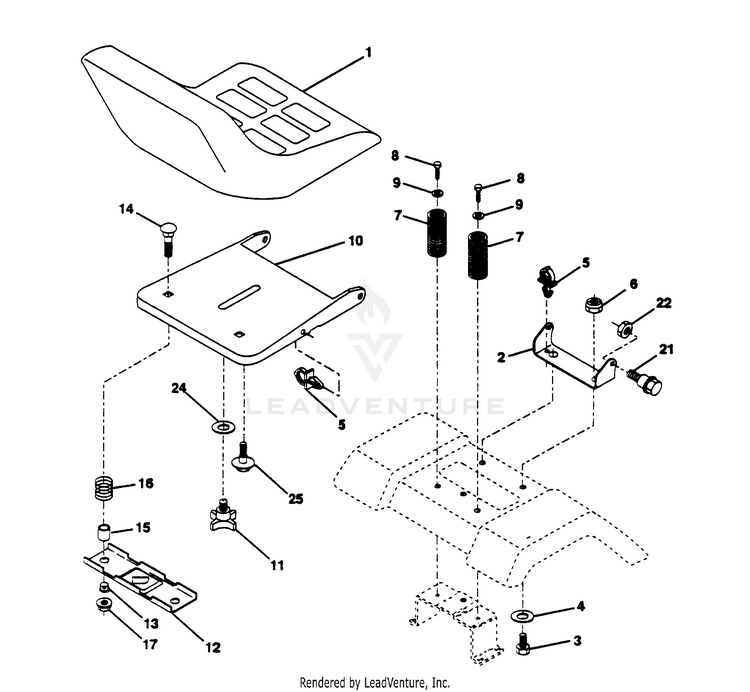

Schematic Image Zoomed
