Husqvarna PP15H42KB (1995) Tractor

Model: PP15H42KB (1995)

Back To Assemblies

Save Part Not Listed?
product name

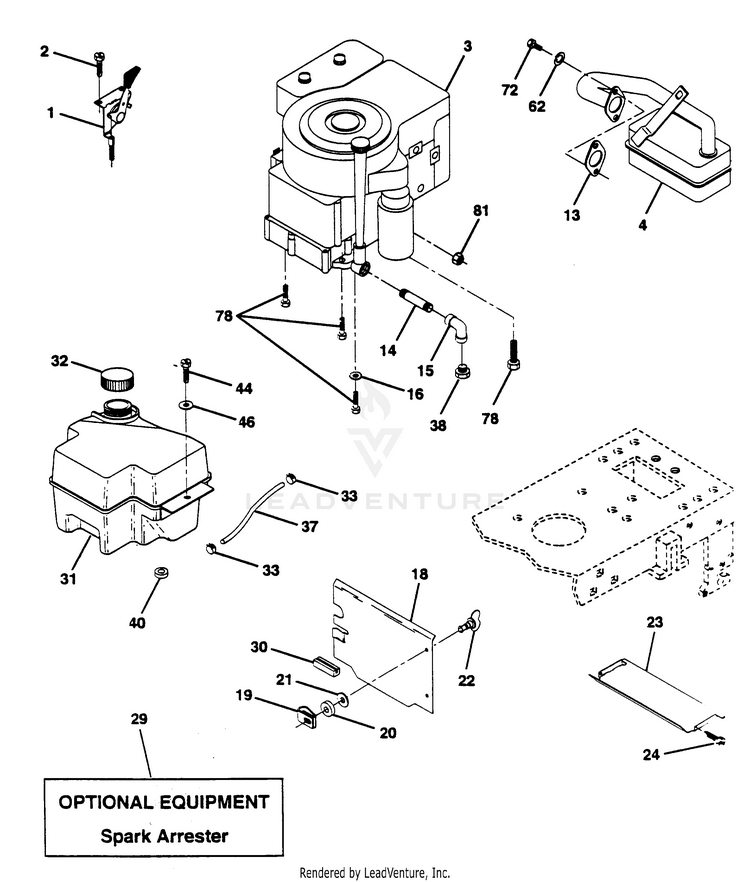

ENGINE

...
...
1
CONTROL TH/CH FLAG HUS-532170551
...
2
HCS 1/4C X 5/8 HUS-539990072
...
4
Muffler LT B&s 14 HP IC OHV HUS-532137352
...
13
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
14
Nipple Pipe 3/8 Npt X 3" HUS-813280324
...
15
Elbow Std 90 Degree 3/8-18 Npt HUS-813200300
...
16
WASHER.3/8 HUS-539990118
...
18
Shield Heat LT HUS-532136718
...
19
Receptacle 1/4 Tum dacrotized HUS-532105839
...
20
Retainer 1/4 Tum 365 OD x .222 ID HUS-532105838
...
21
Washer 9/32 x 5/8 x 16 Ga HUS-819091016
...
22
Stud 1/4 Tum (replaces 105751) HUS-532123650
...
23
Shield Heat Browning LT/YT HUS-532128953
...
24
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
29
Kit Spark Arrestor 1 25 HUS-532137180
...
30
Pinch Weld Hood Black 2.00 HUS-532127057
...
31
GAS TANK 2GAL HUS-532180645
...
32
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
33
Clamp Hose Blk HUS-532123487
...
37
Line Fuel 9 20" HUS-532137040
...
40
Bushing Snap Nyl Blk Fuel HUS-532124028
...
44
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
46
Washer 9/32 X 7/8 X 16ga HUS-819091416
...
62
Washer Lock Hvy Hlcl Spr 5/16 HUS-810040500
...
72
Screw Socket Hd 5/16-18 x .75 HUS-532192334
...
78
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
81
Nut Crownlock 1/4-20 unc HUS-873680400
