Husqvarna PP14H44 (1991) Tractor

Model: PP14H44 (1991)

Back To Assemblies

Save Part Not Listed?
product name

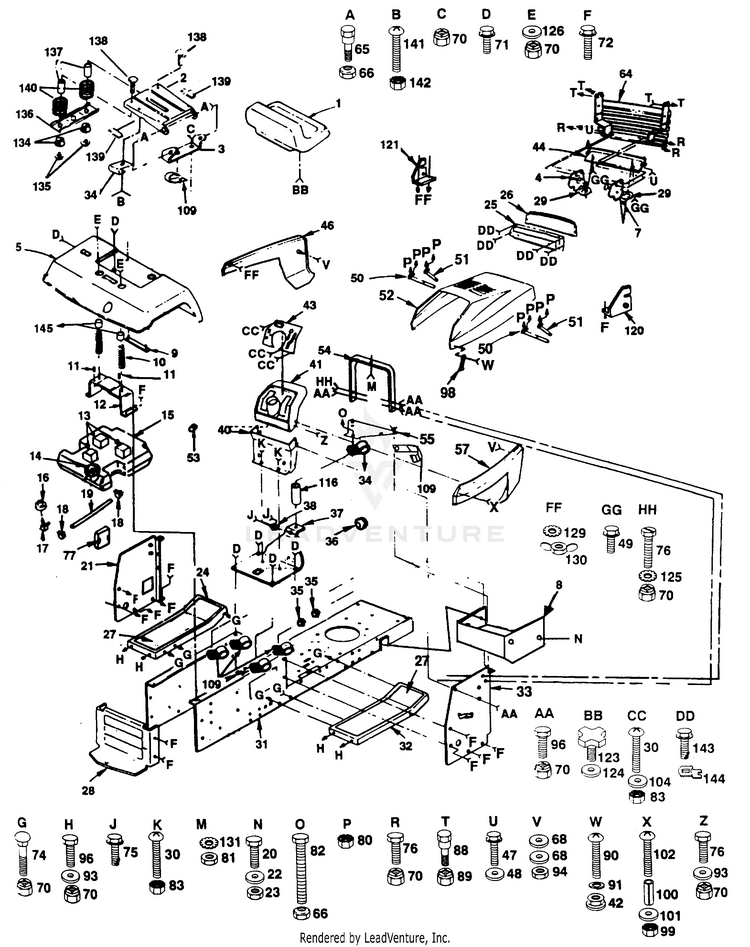

CHASSIS AND ENCLOSURES

...
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
2
Pan, Seat HUS-532124294
...
3
Bracket, Pivot, Seat HUS-532126656
...
4
Bracket, Asm. L.H. Pivot HUS-532110855
...
5
Fender HUS-532124998
...
7
Bracket, Asm. R.H. Pivot HUS-532110854
...
8
Shield, Heat Front HUS-532123665
...
9
SUB= 140675 HUS-532140675
...
10
SRPING.SEAT HUS-539110300
...
11
Nut, Push HUS-532105531
...
12
SUB= 137113 HUS-532137113
...
13
Pad, Spacer HUS-532006431
...
14
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
15
Tank, Fuel HUS-532106020
...
16
Bushing HUS-532003645
...
17
FUEL TANK STEM GT HUS-532008710
...
18
Clamp, Hose HUS-532123487
...
19
Line, Fuel HUS-532008542
...
20
Bolt, Hex Hd. 1/4-20 UNC X 3/4 HUS-874760412
...
21
Panel, Dash, L.H. HUS-532124118
...
22
Washer 9/37 X 7/8 X 16 Ga. HUS-819091416
...
23
Nut, Self Retaining, 1/4-20 HUS-532126850
...
24
Footrest, L.H. HUS-532124888
...
25
Bezel, Assembly HUS-534124939
...
26
Lens HUS-532106395
...
27
Pad, Footrest HUS-532108256
...
28
HUS-532145009
...
29
WASHER - 15X7.3X1.6 HUS-734116301
...
30
Screw, Cr. Thd. 5/16-18 x 3/4 HUS-874180512
...
31
Chassis HUS-532127166
...
32
Footrest, R.H. HUS-532124889
...
33
Panel, Dash, R.H. HUS-532110828
...
34
Clip, Insulated HUS-532124967
...
35
SNAP BUSHING T HUS-532009151
...
36
Grommet HUS-532124934
...
37
SADDLE HUS-532121195
...
38
KIT/BUSH HUS-532155108
...
40
Dash Assembly, Lower HUS-532104805
...
41
Dash Black Yard Pro HUS-532140398
...
42
NUT.WELD.#10-24 HUS-532002029
...
43
Plate, Dash HUS-532124769
...
44
Strap, Grill HUS-532124978
...
46
Panel, Side, L.H. HUS-532124986
...
47
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
48
WASHER - M6 HUS-734115201
...
49
HCS.5/16-18X3/4 HUS-539976934
...
50
Strap Assembly, Hinge, Rear HUS-532106784
...
51
Strap Assembly, Hinge, Front HUS-532104618
...
52
Hood HUS-532124976
...
53
Plug, Button HUS-532005479
...
54
Support, Dash HUS-532110829
...
55
Plate, Support, Battery HUS-532106965
...
57
Panel, Side R.H. HUS-532124989
...
64
Grill Assembly HUS-532122100
...
65
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
66
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
68
WASHER - M6 HUS-734115201
...
70
Nut, Crownlock 3/8-16 HUS-873680600
...
71
Screw, Hex Washer Thread Rolling 3/8-16 x 1/2 HUS-817490608
...
72
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
74
Bolt, Carriage 3/8-16 x 3/4 HUS-872140606
...
75
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
...
76
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
77
Cover, Access HUS-532121794
...
80
Nut Crownlock 1/4-20 unc HUS-873680400
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
82
Bolt, Hex 5/16-18 x 2 HUS-874760532
...
83
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
88
BOLT HUS-532007605
...
89
Crownlock Nut 1/4-20 HUS-873680400
...
90
Screw, Pan Hd. #10-24 UNC HUS-871191008
...
91
Washer, Lock #10 HUS-810071000
...
93
WASHER HUS-734117201
...
94
NUT.HEX..25-20.UNC HUS-532050675
...
96
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
98
Latch, Hood HUS-532109808
...
99
NUT HUS-873271000
...
100
Spacer, Split 10 x 3/4 HUS-532007206
...
101
WASHER HUS-734114601
...
102
SCREW.PAN.HEAD HUS-874981024
...
104
WASHER - 15X7.3X1.6 HUS-734116301
...
109
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
116
Spacer HUS-532121236
...
120
Bracket Assembly, R.H. HUS-532110853
...
121
Bracket Assembly, L.H. HUS-532110852
...
123
Knob Seat Adj. Wingnut HUS-532166369
...
124
Washer 17/32 x 1-3/16 x 12 Ga. HUS-819171912
...
125
WASHER.3/8 HUS-539990118
...
126
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
129
WASHER, LOCK 1/4 HUS-810040400
...
130
KNOB BLK 1/2 NYLON HUS-532146525
...
131
WASHER, LOCK 1/4 HUS-810040400
...
134
Bushing, Snap .80 HUS-532121248
...
135
Nut Crownlock 1/4-20 unc HUS-873680400
...
136
Bracket Mounting Switch HUS-532174648
...
137
Spacer, Split .28 x .88 HUS-532121249
...
138
Bolt, Carr. 1/4 x 1-1/4 HUS-872170410
...
139
Foam Strip HUS-532121251
...
140
Spring. Compression HUS-532121250
...
141
Screw, Pan Hd. #10-32 HUS-874641008
...
142
HUS-873161000
...
143
Screw, Hex WH HD Tap #10-16 X 5/8 HUS-817211010
...
144
"J" Fastener HUS-532104755
...
145
Spring Cap HUS-532124238
...
xx
Decal, Hood L.H. Not Shown. HUS-532127620
...
xx
Decal, Hood R.H. Not Shown. HUS-532127621
...
xx
Decal, Grill and Fender Not Shown. HUS-532127622
...
xx
Decal, Chassis, Poulan Pro Not Shown. HUS-532127639
...
xx
Decal, Fender L.H. Not Shown. HUS-532127648
...
xx
Decal, Fender R.H. Not Shown. HUS-532127649
...
xx
Decal, Clutch/Brake Not Shown. HUS-532004900
...
xx
Decal, Instructions, Caution Not Shown. HUS-532108813
...
xx
Decal, Belt Instruction Not Shown. HUS-532121215
