Husqvarna PP14H44 (1991) Tractor

Model: PP14H44 (1991)

Back To Assemblies

Save Part Not Listed?
product name

MOWER

...
...
1
Locknut 3/8 x 16 HUS-873680600
...
2
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
3
Pulley, Idler HUS-532121316
...
4
Spacer HUS-532106902
...
6
Pulley, Idler HUS-532124858
...
7
Washer, Wear HUS-532106513
...
8
Arm, Idler HUS-532121425
...
9
Pin, Pivot HUS-532109776
...
10
Bar, Support, Idler HUS-532106523
...
11
Brace, Idler, Deck HUS-532106522
...
12
Spacer HUS-532121236
...
13
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
14
Mandrel, Secondary HUS-532121622
...
15
Guard HUS-532106214
...
16
V-Belt HUS-532106085
...
17
Nut, Hex 3/8 x 16 HUS-873220600
...
18
WASHER.3/8 HUS-539990118
...
19
Idler, Flat HUS-532102932
...
20
Arm, Idler, Deck HUS-532106526
...
21
SPRING HUS-532007644
...
22
Mandrel, Primary HUS-532121705
...
23
WASHER.3/8 HUS-539990118
...
24
Bracket, Lift, LH HUS-532109599
...
25
Link, Parallel HUS-532105662
...
26
Retainer, Spring HUS-532004921
...
27
Pin, Front, Hinge HUS-532105744
...
28
Pin, Rear, Hinge HUS-532109835
...
29
Bracket, Lift, RH HUS-532109600
...
30
Guard, Belt, RH HUS-532108119
...
32
Runner, RH HUS-532136321
...
33
MOWER HOUSING HUS-532144729
...
34
Cap, Sleeve HUS-532105304
...
35
Spring, Torsion Deflector HUS-532123713
...
36
Nut, Push HUS-532110452
...
37
Bracket Assembly, Deflector HUS-532137607
...
38
Guard, Discharge HUS-532109785
...
40
WASHER - 15X7.3X1.6 HUS-734116301
...
42
Rod, Hinge HUS-532106735
...
43
HUS-532025034
...
44
Bolt, Hex 3/8 -24 x 1 1/2 Gr.5 HUS-874610624
...
45
Washer 13/32 x 1 1/4 x 12 Ga. HUS-819132012
...
46
Runner, Mower LH HUS-532007631
...
47
Bracket, Suspension, Rear, RH HUS-532123807
...
48
Bracket, Suspension, Rear, LH HUS-532123808
...
51
Bolt, Carriage 3/8-16 x 1-3/4 HUS-872140614
...
52
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
53
Bolt, Carriage 3/8-16 x 1 1/2 HUS-872140612
...
54
Bolt, Hex 3/8-16 x 1-1/4 HUS-874760620
...
55
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
56
WASHER - 15X7.3X1.6 HUS-734116301
...
57
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
58
BOLT HUS-874780648
...
59
Screw, Flat Head 3/8-16 x 2 HUS-874110632
...
60
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
61
WASHER - 15X7.3X1.6 HUS-734116301
...
62
Bolt, Hex 5/16-18 x 5 HUS-874760580
...
63
Pin, Cotter HUS-876020412
...
64
Washer HUS-532052160
...
66
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
67
Bolt, Carriage 3/8-16 x 3/4 HUS-872140606
...
68
Spring, Extension HUS-532102727
...
69
Nut HUS-873680600
...
70
Bolt, Carriage 5/16-18 x 3/4 HUS-872110506
...
72
Locknut 5/16-18 HUS-532124949
...
73
Roller, Nose HUS-532109729
...
74
Washer HUS-532052160
...
75
Bolt, Carriage 3/8-16 x 2-1/2 HUS-872140620
...
76
WASHER HUS-734117201
...
77
WASHER HUS-734117201
...
78
Keeper, L.H. Mandrel HUS-532121352
...
79
Bolt, Carriage 5/16-18 x 5/8 HUS-872110505
...
80
Idler, Pulley HUS-532102403
...
xx
MOWER DECK COMPLETE NLA Not Shown. HUS-532131508
...
xx
Decal, Instruction Caution (Bloody Finger) (Eng/Fre) Not Shown. HUS-532105185
...
xx
Decal, Belt Instruction Not Shown. HUS-532108592
...
xx
Decal, Danger Warning (Rotating Blades) (Eng/Fre) Not Shown. HUS-532121349

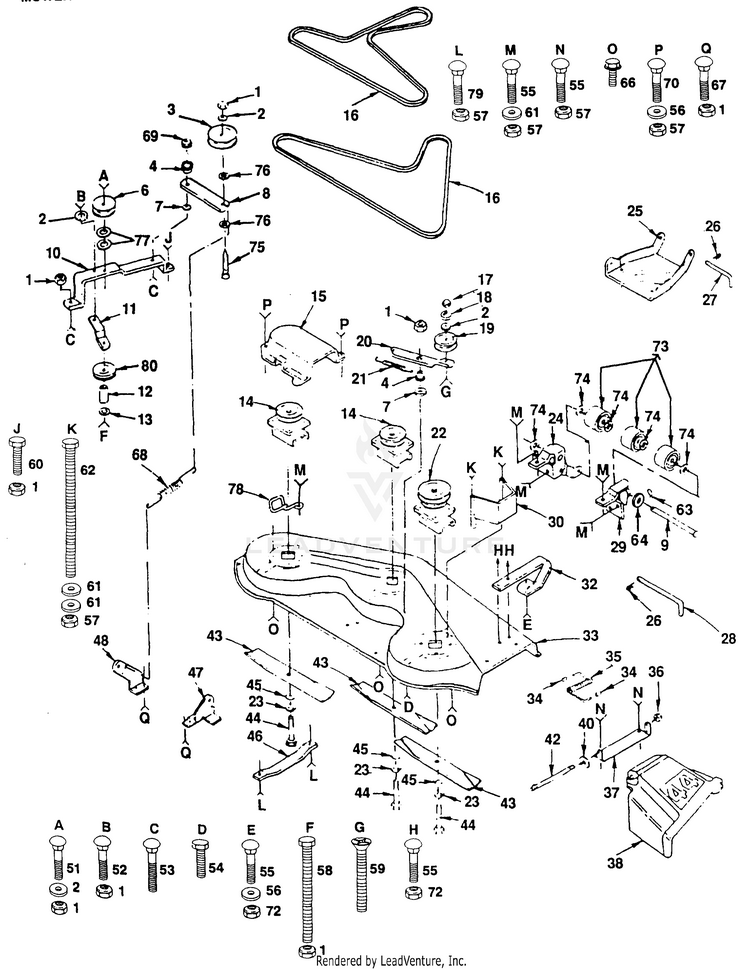

Schematic Image Zoomed
