Husqvarna PP14H44 (1991) Tractor

Model: PP14H44 (1991)

Back To Assemblies

Save Part Not Listed?
product name

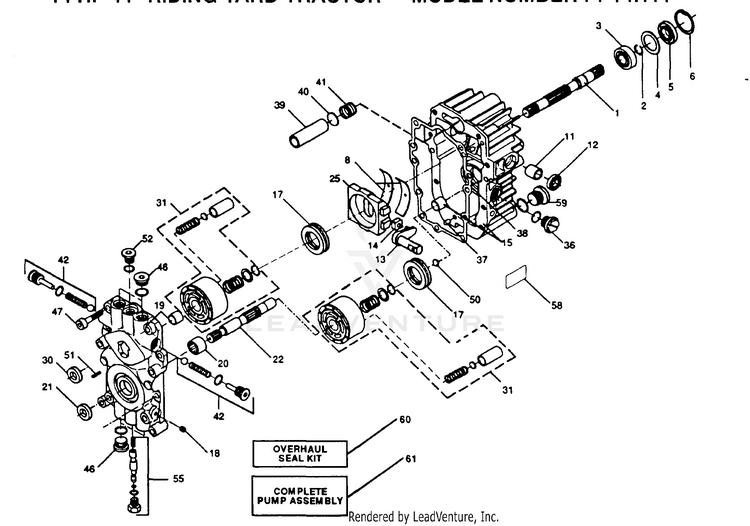

PUMP ASSEMBLY

...
...
1
Shaft, Pump Splined 36T HUS-122756X
...
2
Ring, Retaining HUS-122716X
...
3
Bearing, Ball HUS-122745X
...
4
Spacer HUS-122715X
...
5
Seal, Lip, Pump Shaft HUS-122700X
...
6
Ring, Retaining HUS-122699X
...
8
Bearing, Cradle HUS-122767X
...
9
Plug HUS-122729X
...
10
O-Ring HUS-122746X
...
11
Bearing, Journal Trunnion HUS-122747X
...
12
Seal, Lip HUS-122717X
...
13
Arm, Trunnion HUS-122748X
...
14
Guide, Slot HUS-122749X
...
15
Housing HUS-122768X
...
16
Bearing, Journal HUS-122769X
...
17
Bearing, Asm. Ball HUS-122770X
...
18
Plug, Pipe HUS-122771X
...
19
Section, Center HUS-122772X
...
20
Bearing, Needle HUS-122773X
...
21
Seal, Lip, Motor Shaft HUS-122722X
...
22
Shaft, Motor Splined 36 Tooth HUS-122750X
...
23
Washer HUS-122774X
...
25
Swashplate HUS-122775X
...
26
Guide, Bearing HUS-122776X
...
27
Washer, Thrust HUS-122777X
...
28
Roller, Thrust HUS-122778X
...
29
Plate, Thrust HUS-122779X
...
30
Seal, Lip, Thru Pump Shaft HUS-122723X
...
31
Cylinder, Block HUS-122780X
...
32
Cylinder Block HUS-122781X
...
33
Piston HUS-122782X
...
34
Piston, Spring HUS-122784X
...
35
Washer, Thrust HUS-122785X
...
37
Pin, St. Hdls. HUS-122786X
...
38
Gasket HUS-122718X
...
39
Filter HUS-122731X
...
40
Washer, Filter HUS-122730X
...
41
Spring, Filter HUS-122728X
...
42
Plug, Check Valve HUS-122706X
...
43
O-Ring HUS-122705X
...
44
Ball HUS-122702X
...
45
Check, Spring HUS-122704X
...
46
Plug, Std. Thd. HUS-122787X
...
47
Screw, Socket Hd. M8 X 35 HUS-122752X
...
48
Screw, Socket Hd. M8 X 20 HUS-122753X
...
50
Washer, Thrust HUS-122788X
...
51
Pin, Spiral HUS-122789X
...
52
Plug, St, Thd. HUS-122754X
...
53
O-Ring Bypass Valve HUS-122712X
...
54
Spring HUS-122708X
...
55
Bypass Spool HUS-122709X
...
56
Bypass Plug HUS-122712X
...
57
O-Rings, Bypass Valve HUS-122710X
...
58
Nameplate HUS-122727X
...
59
Plug, Plastic HUS-122790X
...
60
Spring HUS-122791X
...
61
Pump Assy. Complete HUS-121430X
Schematic Image Zoomed
