Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
1
Retainer, Belt HUS-532109070
...
2
Bracket, Switch HUS-532108236
...
3
Screw, Tapping, Hex Head 10-24 x 1/2 HUS-817021008
...
4
Keeper, Belt, Engine HUS-532105730
...
5
V-Belt, Drive HUS-532125907
...
6
WASHER HUS-734117201
...
8
Keeper, Belt, Engine HUS-532121218
...
11
Nut, Crownlock 3/8-16 HUS-873680600
...
15
Washer HUS-532052160
...
16
Arm Assembly, Suspension, L.H. HUS-532121599
...
17
Retainer, Spring HUS-532009135
...
18
Idler, Flat HUS-532123674
...
19
Nut Jam Hex 1/2-13 Unc HUS-873350800
...
20
Trunnion Blk Zinc HUS-532175689
...
22
Arm Assembly, Suspension, R.H. HUS-532121598
...
23
Bolt, Shoulder 3/8-16 HUS-532105848
...
24
Engine Pulley LT/YT HUS-532140189
...
25
HEX BOLT HUS-747810110
...
26
LOCKWASHER.7/16 HUS-539990247
...
27
Bolt, Hex 3/8-16 x 2-3/4 HUS-874760644
...
28
Spacer HUS-532124965
...
33
Retainer Spring HUS-532004921
...
35
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
36
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
37
KIT CLUTCH ELECT REPL HUS-532142600
...
38
Nut HUS-873680600
...
39
Washer 1-1/2 x 15/32 x 1/4 HUS-532126197
...
40
RETAINER KIT HUS-532109172
...
42
Washer, Spring HUS-532110739
...
43
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316

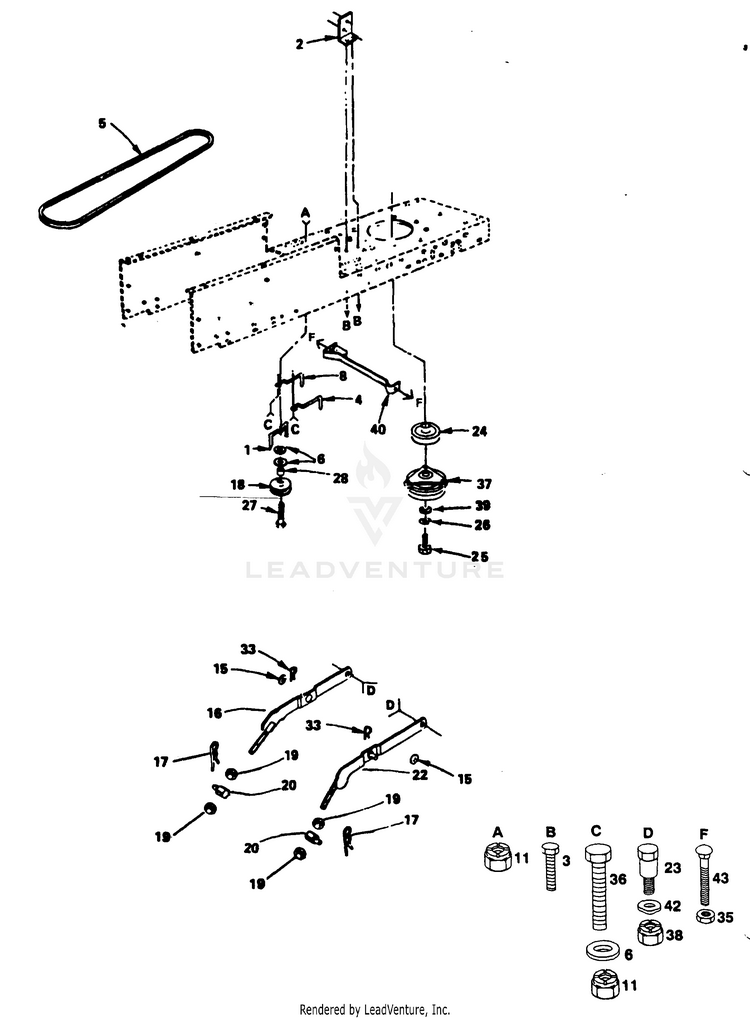

Schematic Image Zoomed
