Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

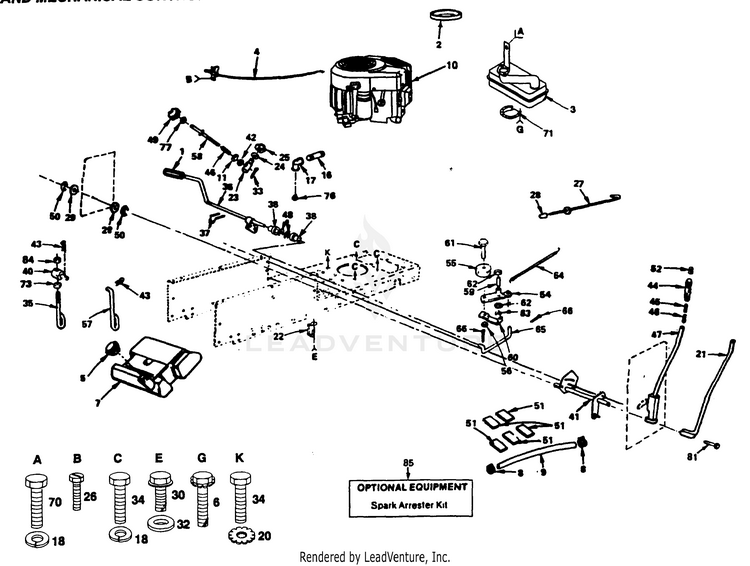

POWER AND MECHANICAL CONTROLS GROUP

...
...
1
Cover, Pedal HUS-532008883
...
2
Strip, Foam HUS-532127073
...
3
Muffler HUS-532124196
...
4
Control, Throttle HUS-532121275
...
5
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
6
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
7
Tank, Fuel HUS-532106020
...
8
Clamp, Hose HUS-532123487
...
9
LINE FUEL 7.5" HUS-532007833
...
10
Engine, 14 HP Kohler, Model No. CV145-1436 HUS-532127522
...
11
Washer 13/32 x 5/8 x 16 Gauge HUS-819131016
...
16
Pipe Nipple, Standard HUS-813280336
...
17
90ø Elbow 3/8 NPT HUS-813200300
...
18
Washer, Lock Heavy Helical Spring HUS-810040500
...
20
Washer Lock Hvy Hlcl Spr 5/16 HUS-810040500
...
21
Rod Assembly, Lever HUS-532121006
...
22
Keeper Belt Chassis Span Ctr HUS-532136715
...
23
Trunnion, Stop, Depth HUS-532110810
...
24
Washer 15/32 x 3/4 x 16 Gauge HUS-819151216
...
25
Ring, Klip HUS-812000037
...
26
HCS 1/4C X 5/8 HUS-539990072
...
27
Rod, Brake, Park HUS-532133261
...
28
Cap, Plunger HUS-532071673
...
29
Washer 29/32 x 1-1/4 x 16 Gauge HUS-819292016
...
30
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
32
Washer 13/32 x 1-3/16 x 12 Gauge HUS-819131316
...
33
COTTER PIN HUS-532003145
...
34
Screw M8 x 1.25 x 25 mm HUS-M010208025
...
35
Lift, Link, Adjustable HUS-532110448
...
36
Shaft, Pedal, Foot HUS-532122424
...
37
DRIVE PIN HUS-532002882
...
38
Bearing, Nylon HUS-532120183
...
40
LIFT TRUNION HUS-532132793
...
41
Shaft Assembly, Lift HUS-532121000
...
42
Nut, Hex, Special HUS-532110807
...
43
RETAINER SPRING HUS-532085902
...
44
GRIP, HANDLE HUS-532125631
...
45
PLUNGER BUTTON KIT HUS-532125925
...
46
SPRING HUS-532002876
...
47
LIFT LEVER HUS-532123096
...
48
Washer 21/32 x 1 x 16 Gauge HUS-819211616
...
49
Handle, Adjust, Lift HUS-532121891
...
50
E-Ring HUS-812000022
...
51
Pad, Spacer HUS-532106082
...
52
PLUNGER BUTTON KIT HUS-532125925
...
54
Arm Assembly, Idler HUS-532123789
...
55
Pulley, Idler V Groove HUS-532139245
...
56
Nut, Crownlock 3/8-16 HUS-873680600
...
57
Link, Lift HUS-532110029
...
58
Rod, Adjust, Lift HUS-532110729
...
59
Bearing HUS-532105706
...
60
Retainer, Belt HUS-532123205
...
61
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
62
Washer, Hardened HUS-532110812
...
63
Ring, Clip HUS-812000039
...
64
Spring, Return, Clutch HUS-532105709
...
65
LINK.CLUTCH.7.66.2005 HUS-532199652
...
66
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
70
Bolt, Hex Head 5/16-18 UNC x 1/2 HUS-874760508
...
71
Deflector, Muffler HUS-532101326
...
73
Nut, Hex 7/16-20 HUS-873610700
...
77
Nut, Hex 3/8-16 HUS-873220600
...
81
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
84
Nut, Hex 7/16-20 HUS-873610700
...
85
Spark Arrester Kit HUS-532122083
