Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

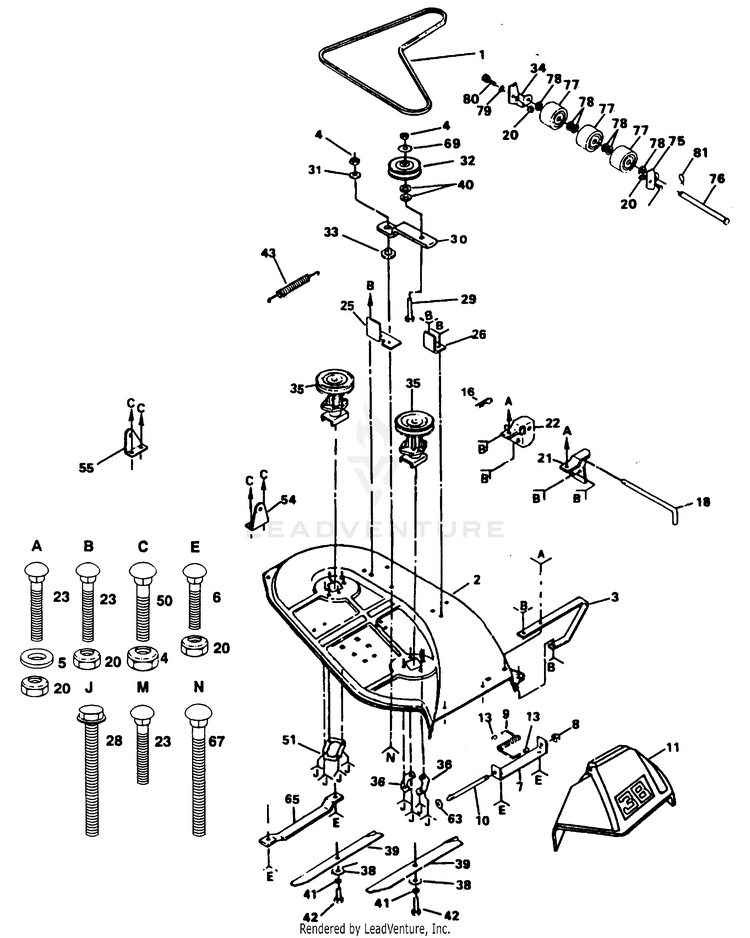

MOWER 38"

...
...
1
V-Belt HUS-532106085
...
2
HUS-532144726
...
3
DRIVE PIN HUS-532002882
...
4
Locknut 3/8-16 HUS-873680600
...
5
WASHER - 15X7.3X1.6 HUS-734116301
...
6
Bolt, Carriage 5/16-18 x 5/8 HUS-872140505
...
7
Bracket Assembly, Deflector HUS-532137607
...
8
Nut, Push HUS-532110452
...
9
Spring, Torsion Deflector HUS-532123713
...
10
Rod, Hinge HUS-532106735
...
11
Deflector, Shield HUS-532106736
...
13
Cap, Sleeve HUS-532105304
...
16
Retainer Spring HUS-532004921
...
18
Pin, Hinge, Rear HUS-532109835
...
20
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
21
Bracket, Lift, R.H. HUS-532109598
...
22
Bracket, Lift, L.H. HUS-532109597
...
23
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
25
Support, Arm HUS-532109503
...
26
Stop, Deck, Front HUS-532109504
...
28
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
29
Bolt 3/8-16 x 2 HUS-874760636
...
30
Arm, Idler HUS-532127162
...
31
Spacer HUS-532106902
...
32
Pulley, Idler, Flat HUS-532123674
...
33
Washer, Wear 1/16 HUS-532106513
...
34
Bracket, Nose Roller, L.H. HUS-532109646
...
35
JACKSHAFT.38"LT HUS-532121687
...
36
Plate, Support, Mandrel HUS-532100668
...
38
Washer 13/32 x 1-1/4 x 12 Ga. HUS-819132012
...
39
BLADE 38" HUS-532143978
...
40
WASHER HUS-734117201
...
41
WASHER.3/8 HUS-539990118
...
42
Bolt, Hex 3/8-24 x 1-1/2 Gr. 5 HUS-874610624
...
43
Spring, Extension HUS-532102727
...
50
Bolt, Carriage 3/8-16 x 3/4 HUS-872140606
...
51
Plate, Support HUS-532110445
...
54
Bracket, Suspension, Rear, R.H. HUS-532105857
...
55
Bracket, Suspension, Rear, L.H. HUS-532108673
...
63
WASHER - 15X7.3X1.6 HUS-734116301
...
65
Runner, Mower LH HUS-532007631
...
67
Bolt, Carriage 3/8-16 x 1-1/4 HUS-872140610
...
69
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
75
Bracket, Nose Roller, R.H. HUS-532109647
...
76
Pin, Pivot HUS-532109776
...
77
Roller, Nose HUS-532109729
...
78
Washer HUS-532052160
...
79
Washer HUS-532052160
...
80
HCS.5/16-18X3/4 HUS-539976934
...
81
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
xx
Mower, Deck Complete Not Shown. HUS-532123928
...
xx
Decal, V-Belt Schematic Not Shown. HUS-532108682
...
xx
Decal, Danger Warning HUS-532121343
...
xx
Decal, Instruction Caution HUS-532003713
