product name

Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

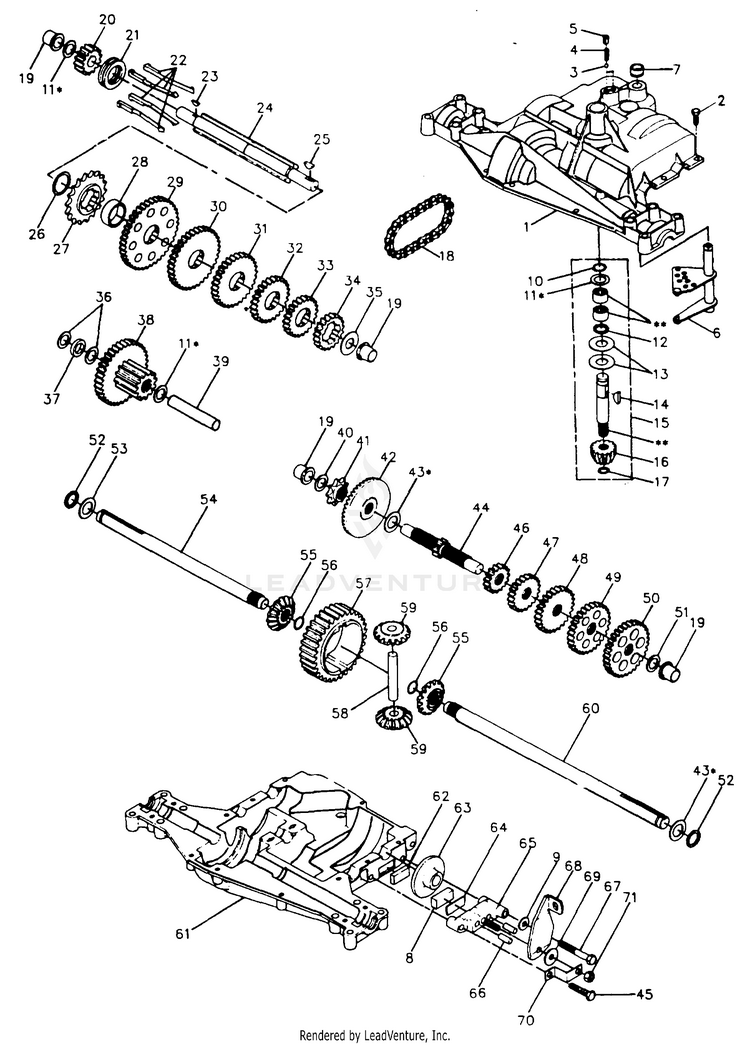

TRANSAXLE FOOTE DANA - MODEL NUMBER 4360-19

...
...
1
Housing, Upper HUS-124643X
...
2
Screw, Tapping 1/4-20 x .734 Lg. HUS-02274J
...
3
Ball, Detent HUS-530068003
...
4
Spring, Detent HUS-105904X
...
5
Screw, Set HUS-105905X
...
6
Assembly, Shifter HUS-124637X
...
7
V-Ring HUS-108727X
...
8
Puck, Friction HUS-120951X
...
9
Washer, Plain .325 x .750 x .059 HUS-120993X
...
10
Ring, Retaining HUS-02267J
...
11
Washer, Plain .632 x 1.00 x .010 Use in combinations to maintain proper clearances. HUS-03413J
...
xx
Washer, Plain .632 x 1.00 x .020 Use in combinations to maintain proper clearances. HUS-02233J
...
xx
Washer, Plain .632 x 1.00 x .026 Use in combinations to maintain proper clearances. HUS-02232J
...
xx
Washer, Plain .632 x 1.00 x .031 Use in combinations to maintain proper clearances. HUS-02231J
...
xx
Washer, Plain .632 x 1.00 x .036 Use in combinations to maintain proper clearances. HUS-02230J
...
xx
Washer, Plain .632 x 1.00 x .041 Use in combinations to maintain proper clearances. HUS-02229J
...
xx
Washer, Plain .632 x 1.00 x .046 Use in combinations to maintain proper clearances. HUS-02228J
...
xx
Washer, Plain .632 x 1.00 x .050 Use in combinations to maintain proper clearances. HUS-02227J
...
xx
Washer, Plain .632 x 1.00 x .060 Use in combinations to maintain proper clearances. HUS-02226J
...
xx
Washer, Plain .632 x 1.00 x .082 Use in combinations to maintain proper clearances. HUS-105906X
...
12
O-Ring HUS-06725J
...
13
Washer, Plain .632 x 1.38 x .046 HUS-120415X
...
14
Key, Woodruff # 9 HUS-02257J
...
15
Assembly, Kit, Input Shaft HUS-106846X
...
16
Pinion, Bevel, 14 T HUS-106095X
...
17
Ring, Retaining HUS-105909X
...
18
Chain, 24 Pitches HUS-105910X
...
19
Bearing, Flange HUS-105911X
...
20
Gear, Spur, 14T HUS-105912X
...
21
Collar, Clutch HUS-105913X
...
22
Key, Clutch HUS-120468X
...
23
Key, Woodruff # 3 HUS-02242J
...
24
Shaft, Intermediate HUS-124638X
...
25
Key, Woodruff # 61 HUS-02244J
...
26
Ring, Retaining HUS-105916X
...
27
Sprocket, 18 T HUS-120470X
...
28
Spacer HUS-110070X
...
29
Gear, Spur 40 T HUS-109253X
...
30
Gear, Spur 35 T HUS-109254X
...
31
Gear, Spur 30 T HUS-124644X
...
32
Gear, Spur 25 T HUS-108980X
...
33
Gear, Spur 22 T HUS-120406X
...
34
Gear, Spur 19 T HUS-108455X
...
35
Washer, Plain .640 x 1.37 x .061 HUS-105925X
...
36
Washer, Plain .632 x 1.00 x .026 HUS-02232J
...
37
Spacer .630 x 1.00 x .169 HUS-108978X
...
38
Assy., Gear, Comb. 12 T & 35 T HUS-108981X
...
39
Shaft, Idler HUS-124369X
...
40
Washer, Plain .631 x 1.00 x .015 HUS-03422J
...
41
Sprocket, 9 T HUS-105928X
...
42
Gear, Bevel, 42 T HUS-106605X
...
43
Washer, Plain .758 x 1.12 x .010 Use in combinations to maintain proper clearances. HUS-108983X
...
xx
Washer, Plain .758 x 1.12 x .015 Use in combinations to maintain proper clearances. HUS-105930X
...
xx
Washer, Plain .758 x 1.12 x .020 Use in combinations to maintain proper clearances. HUS-105931X
...
xx
Washer, Plain .758 x 1.12 x .025 Use in combinations to maintain proper clearances. HUS-105932X
...
xx
Washer, Plain .758 x 1.25 x .020 Use in combinations to maintain proper clearances. HUS-03417J
...
xx
Washer, Plain .758 x 1.25 x .025 Use in combinations to maintain proper clearances. HUS-106097X
...
xx
Washer, Plain .758 x 1.25 x .031 Use in combinations to maintain proper clearances. HUS-02264J
...
xx
Washer, Plain .758 x 1.25 x .035 Use in combinations to maintain proper clearances. HUS-106098X
...
xx
Washer, Plain .758 x 1.25 x .040 Use in combinations to maintain proper clearances. HUS-02265J
...
xx
Washer, Plain .758 x 1.25 x .045 Use in combinations to maintain proper clearances. HUS-106586X
...
xx
Washer, Plain .758 x 1.25 x .050 Use in combinations to maintain proper clearances. HUS-106587X
...
44
Shaft, Drive HUS-124640X
...
45
Screw, Tapping 5/16 x 18 x 1.44 Large HUS-106596X
...
46
Gear, Spur, 15 T HUS-106151X
...
47
Gear, Spur, 20 T HUS-124641X
...
48
Gear, Spur, 25 T HUS-106589X
...
49
Gear, Spur, 28 T HUS-120408X
...
50
Gear, Spur, 31 T HUS-105937X
...
51
Washer, Plain .632 x 1.00 x .060 HUS-02226J
...
52
Seal, Felt HUS-02272J
...
53
Washer, Plain .758 x 1.25 x .062 HUS-02263J
...
54
Axle, L.H. HUS-120474X
...
55
Gear, Miter, 15 T HUS-120409X
...
56
Ring, Retaining HUS-105941X
...
57
Gear, Spur, 32 T HUS-110071X
...
58
Shaft, Cross HUS-120952X
...
59
Gear, Miter, 15 T HUS-106592X
...
60
Axle, R.H. HUS-120475X
...
61
Housing, Lower HUS-124642X
...
62
Puck, Friction HUS-120961X
...
63
Disc, Brake HUS-07294J
...
64
Spacer HUS-108989X
...
65
Jaw, Brake HUS-120953X
...
66
Pin, Dowel HUS-120954X
...
67
Screw, Tapping 5/16-18 x 2.25 HUS-120955X
...
68
Lever, Actuating HUS-108992X
...
69
Washer, Plain .321 x 1.00 x .055 HUS-108996X
...
70
Bracket, Anti-Rotation HUS-120956X
...
71
Locknut 5/16-24 HUS-73810500
...
72
Grease HUS-120416X
