Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

ENCLOSURES

...
...
1
Knob Seat Adj. Wingnut HUS-532166369
...
2
Deflector, Heat HUS-532123665
...
3
Panel, Side, L.H. HUS-532124986
...
4
Dash, Plate HUS-532124990
...
5
Dash Black Yard Pro HUS-532140398
...
6
Dash Assembly, Lower HUS-532104805
...
7
Bolt, Hex Head 1/4-20 UNC x 3/4 HUS-874760412
...
8
Bracket Assembly, R.H. HUS-532110853
...
9
Plate, Support, Battery HUS-532106965
...
10
Support, Assembly, Dash HUS-532124130
...
11
Console, Shifter HUS-532127287
...
12
Washer, Lock Heavy Helical 1/4 HUS-810040400
...
13
Strap, Assembly, Hinge, Rear HUS-532106784
...
14
Strap, Assembly, Hinge, Front HUS-532104618
...
15
Hood HUS-532124938
...
16
Beze. Asem. HUS-532124392
...
17
Lens HUS-532106395
...
18
Support, Grill, L.H. HUS-532110855
...
19
Grill, Assembly HUS-532122100
...
20
Strap, Grill HUS-532124978
...
21
Support, Grill, R.H. HUS-532110854
...
22
Washer 9/32 x 7/8 x 16 Gauge HUS-819091416
...
23
Bracket Assembly, L.H. HUS-532110852
...
24
Panel, Side, R.H. HUS-532124989
...
25
Panel, Dash, R.H. HUS-532110828
...
26
Footrest, R.H. HUS-532124889
...
27
Chassis HUS-532127166
...
28
HUS-532145009
...
29
Washer 3/16 x 7/16 x 18 Gauge HUS-819060718
...
30
Bushing, Snap HUS-532121248
...
31
Panel, Dash, L.H. HUS-532124118
...
32
Footrest, L.H. HUS-532124888
...
33
Bolt, Shoulder 5/16-18 x.62 HUS-532127018
...
34
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
35
Cap, Spring HUS-532124238
...
36
SADDLE HUS-532123783
...
37
WASHER, LOCK 1/4 HUS-810040400
...
38
Washer, Lock #8 HUS-810100800
...
39
KIT/BUSH HUS-532155108
...
41
SRPING.SEAT HUS-539110300
...
42
Nut, Self-Retaining 1/4-20 HUS-532126850
...
43
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
44
Bolt, Carriage 1/4-20 x 1-1/4 HUS-872170410
...
45
Fender HUS-532123784
...
46
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
49
Nut Crownlock 1/4-20 unc HUS-873680400
...
50
Bolt, Hex 3/8-16 x 1-1/4 HUS-874760620
...
51
WASHER HUS-734117201
...
52
Nut, Crownlock 3/8-16 HUS-873680600
...
53
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
54
Screw #8-3/8 HUS-874640806
...
55
Screw, Hex Washer Head Tapping #10-16 x 5/8 HUS-817211010
...
56
"J" Fastener HUS-532104755
...
57
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
59
HCS.5/16-18X3/4 HUS-539976934
...
60
BOLT HUS-532007605
...
61
Stud 1/4 Turn HUS-532123650
...
62
Nut, Crownlock 1/4-20 HUS-873680400
...
63
Spring, Compression HUS-532121250
...
65
Screw, Hex Washer Head, Thread Forming 3/8 -16 x 1/2 Type TT HUS-817490608
...
66
Pan, Seat HUS-532124294
...
68
Retainer 1/4 Turn HUS-532105838
...
69
Receptacle 1/4 Turn HUS-532105839
...
70
Washer 9/32 x 5/8 x 16 HUS-819091016
...
72
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
...
73
HCS.5/16-18X3/4 HUS-539976934
...
74
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
75
SUB= 137113 HUS-532137113
...
76
Screw, Machine 5/16-18 x 3/4 HUS-874180512
...
78
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
81
Cover, Access HUS-532121794
...
82
Washer 17/32 x 1-3/16 x 12 Gauge HUS-819171912
...
84
Bolt, Carriage 3/8-16 x 3/4 HUS-872110606
...
85
Pad, Footrest HUS-532108256
...
86
Screw, Pan Hd. #10-24 UNC HUS-871191008
...
87
Washer, Lock #10 HUS-810071000
...
88
NUT.WELD.#10-24 HUS-532002029
...
89
Latch, Hood HUS-532109808
...
90
SCREW.PAN.HEAD HUS-874981024
...
91
Spacer, Split #10 x 3/4 HUS-532007206
...
92
NUT HUS-873271000
...
93
SUB= 140675 HUS-532140675
...
94
Bracket, Pivot, Seat HUS-532126656
...
95
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
97
WASHER HUS-734114601
...
100
Shield, Heat HUS-532105736
...
103
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
104
Grommet HUS-532124934
...
107
SNAP BUSHING T HUS-532009151
...
108
Strip Foam 18" HUS-532105037
...
110
KNOB BLK 1/2 NYLON HUS-532146525
...
111
WASHER.3/8 HUS-539990118
...
112
WASHER - M6 HUS-734115201
...
113
NUT.HEX..25-20.UNC HUS-532050675
...
115
WASHER - 15X7.3X1.6 HUS-734116301
...
117
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
118
WASHER - 15X7.3X1.6 HUS-734116301
...
119
Foam, Strip HUS-532121251
...
121
Spacer, Split 0.28 x 0.88 HUS-532121249
...
123
Nut Crownlock 1/4-20 unc HUS-873680400
...
124
Screw, Sltd. Pan Head #10-32 x 1/2 HUS-874641008
...
125
HUS-873161000
...
126
Clip, Insulated HUS-532124967
...
127
Bracket Mounting Switch HUS-532174648
...
xx
Decal, Belt Instructions (Under Footrest) Not Shown. HUS-532109199
...
xx
Decal, Hood, LH Not Shown. HUS-532127620
...
xx
Decal, Hood, RH Not Shown. HUS-532127621
...
xx
Decal, Caution (Front Fender) Not Shown. HUS-532120822
...
xx
Decal, Clutch/Brake Not Shown. HUS-532101892
...
xx
Decal, Grill and Fender Not Shown. HUS-532127622
...
xx
Decal, Speed/Deck Size, Chassis Not Shown. HUS-532127639
...
xx
Decal, Operating Not Shown. HUS-532109821
...
xx
Decal, LH Fender Not Shown. HUS-532127645
...
xx
Decal, RH Fender Not Shown. HUS-532127644

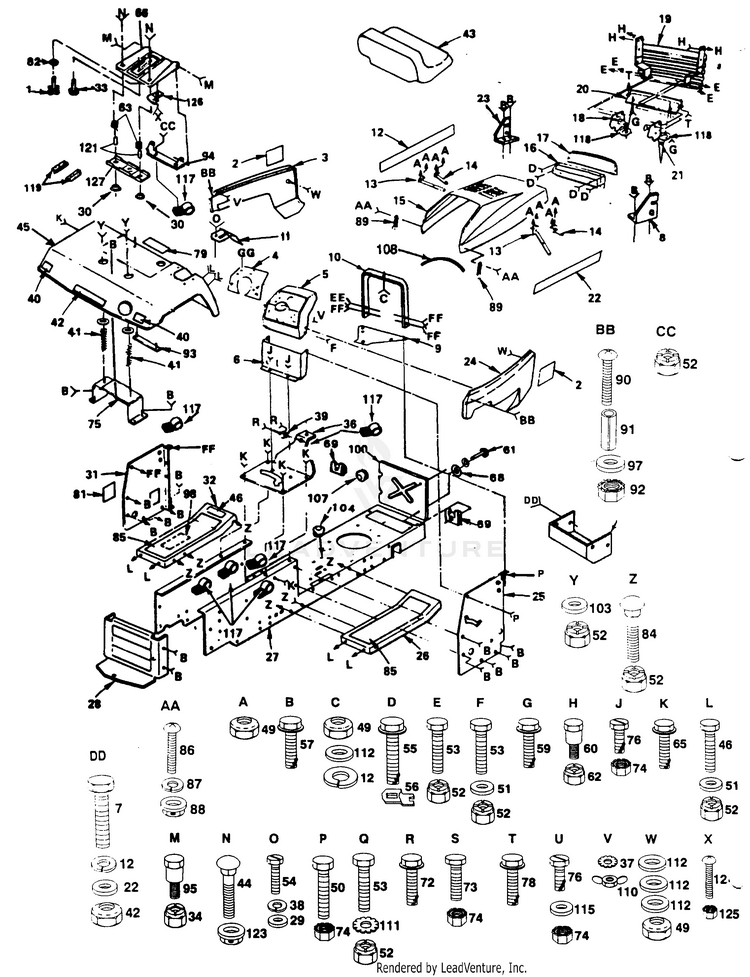

Schematic Image Zoomed
