Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

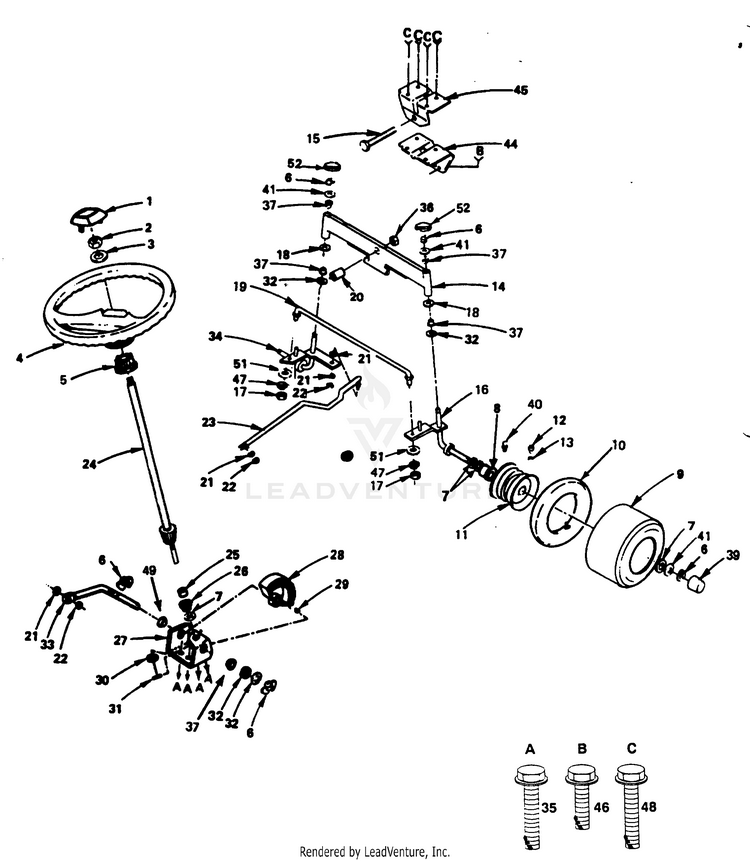

STEERING FRONT AXLES AND WHEELS

...
...
1
STEERING WHEEL NLA HUS-532150546
...
2
Nut, Hex, Toplock Jam 1/2-20 HUS-873940800
...
3
Washer 17/32 x 2-1/4 x .160 HUS-532100712
...
4
STEERING WHEEL NLA HUS-532150546
...
5
STEERING.WHEEL.ADAPTER HUS-532437747
...
6
Ring, Klip HUS-812000029
...
7
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
8
Bearing, Flange HUS-532009040
...
9
TIRE.FRONT (15X6-6) TURF SAVER HUS-532122073
...
10
Tube, Tire HUS-532059904
...
11
Rim Asm 6" Front Includes 2 each Key #8 HUS-532106732
...
12
Stem, Valve HUS-532065139
...
13
Cap, Valve HUS-532059192
...
14
Axle Assembly, Front HUS-532108075
...
15
Bolt, Hex 5/8-11 x 3-3/4 HUS-874761060
...
16
SPINDLE HUS-532130524
...
17
NUT HUS-873610500
...
18
Washer 27/32 x 1-1/4 x 16 Gauge HUS-819272016
...
19
ROD.ASM.TIE.BALL.JOINT.NOVAN HUS-532170162
...
20
KIT-AXLE HUS-532155134
...
21
WASHER.3/8 HUS-539990118
...
22
Nut HUS-873680600
...
23
Link Drag Sol Ball Jt 20 064 HUS-532130468
...
24
HUS-532156544
...
25
Washer HUS-532057079
...
26
SUPPORT SHAFT HUS-532160395
...
27
Bracket, Steering HUS-532124036
...
28
Gear Sector HUS-532136874
...
29
SCREW HUS-532165857
...
30
Washer 9/32 x 5/8 x 16 Ga HUS-819091016
...
31
Washer, Lock 1/4 HUS-810040400
...
32
WASHER THRUST HUS-532006266
...
33
PITMAN SHAFT ASSY HUS-532156365
...
34
Spindle Assembly, L.H. HUS-532105656
...
35
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
36
Nut, Crownlock HUS-873681000
...
37
BEARING.STEERING.COLUMN HUS-532003366
...
39
Cap, Axle HUS-532104757
...
40
Fitting, Grease HUS-532000278
...
41
Washer 25/32 x 1-5/8 x 16 Gauge HUS-532121748
...
44
Support, Saddle, Front HUS-532105664
...
45
Support, Saddle, Rear HUS-532105663
...
46
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
47
Washer, Lock 5/16 HUS-810040500
...
48
Screw, Special HUS-532122819
...
49
Nyliner, Snap In HUS-532109816
...
51
WASHER - 15X7.3X1.6 HUS-734116301
...
52
Cap, Spindle HUS-532121232
...
xx
Decal, Steering Wheel Not Shown. HUS-532127646
