Husqvarna PP1438B (1991) Tractor

Model: PP1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

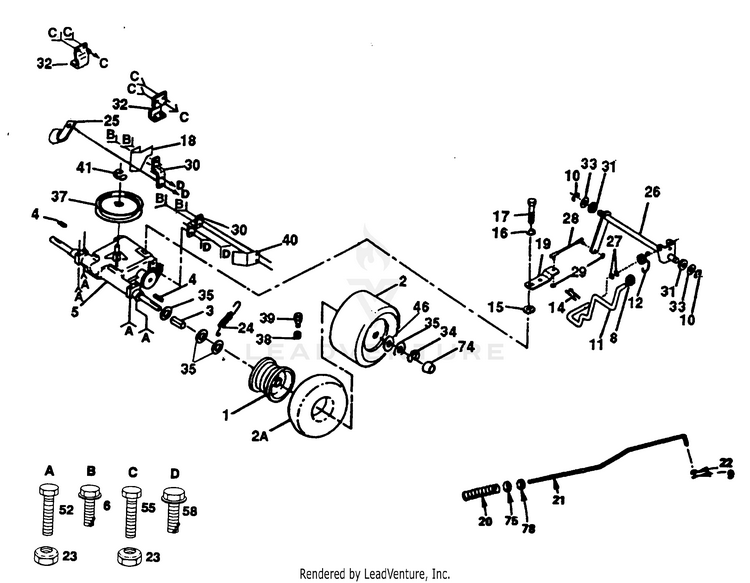

TRANSAXLE AND REAR WHEEL

...
...
1
Rim Asm 8" rear Service HUS-532125122
...
2
TIRE.18X9.5-8 TURF SAVER HUS-532420531
...
2A
Tube HUS-532007152
...
3
Spacer, Split HUS-532109502
...
4
Key, Square 2.5 x .1845/.1865 HUS-532123583
...
5
Transaxle, 6 Speed, Foot Dana HUS-532124162
...
6
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
8
Knob, Control HUS-532106933
...
9
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
10
Ring, E HUS-812000003
...
11
Rod Shifter HUS-532141002
...
12
Spring, Torsion HUS-532123782
...
14
Pin, Cotter 1/8 x 1 HUS-876020416
...
15
Washer, Shift Plate HUS-532105701
...
16
WASHER - M6 HUS-734115201
...
17
Bolt, Hex 1/4-28 x 3/4 Grade 8 HUS-871040412
...
18
Keeper, Belt, Transaxle, L.H. HUS-532127275
...
19
Arm, Shift HUS-532123794
...
20
SPRING, BRAKE ROD HUS-532151332
...
21
ROD HUS-532131867
...
22
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
23
Locknut 3/8-16 HUS-873680600
...
24
Spring Return Brake HUS-532146682
...
25
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
26
CROSS SHAFT KIT HUS-532136978
...
27
BUSHING HUS-734117771
...
28
LINK, TRANSAXLE HUS-532166230
...
29
NUT HUS-873610400
...
30
Strap, Torque HUS-532121520
...
31
Bushing, Pivot HUS-532127272
...
32
Bracket, Transaxle HUS-532109167
...
33
Washer .53 x 1.25 x .0598 HUS-532126591
...
34
E-Ring HUS-812000001
...
35
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
37
Pulley, Transaxle HUS-532123666
...
38
Cap, Valve HUS-532059192
...
39
Stem, Valve HUS-532065139
...
40
Keeper, Belt, Transaxle, R.H. HUS-532127274
...
41
Ring, Retaining HUS-532002267
...
46
Washer 25/32 x 1-5/8 x 16 Gauge HUS-532121748
...
52
Bolt, Hex 3/8-16 x 2-3/4 HUS-870460644
...
55
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
58
HCS.5/16-18X3/4 HUS-539976934
...
74
Cap, Axle HUS-532104757
...
75
Nut HUS-873680600
...
78
Nut, Hex 3/8-16 HUS-873220600
