Husqvarna PP1338D (2000) Tractor

Model: PP1338D (2000)

Back To Assemblies

Save Part Not Listed?
product name

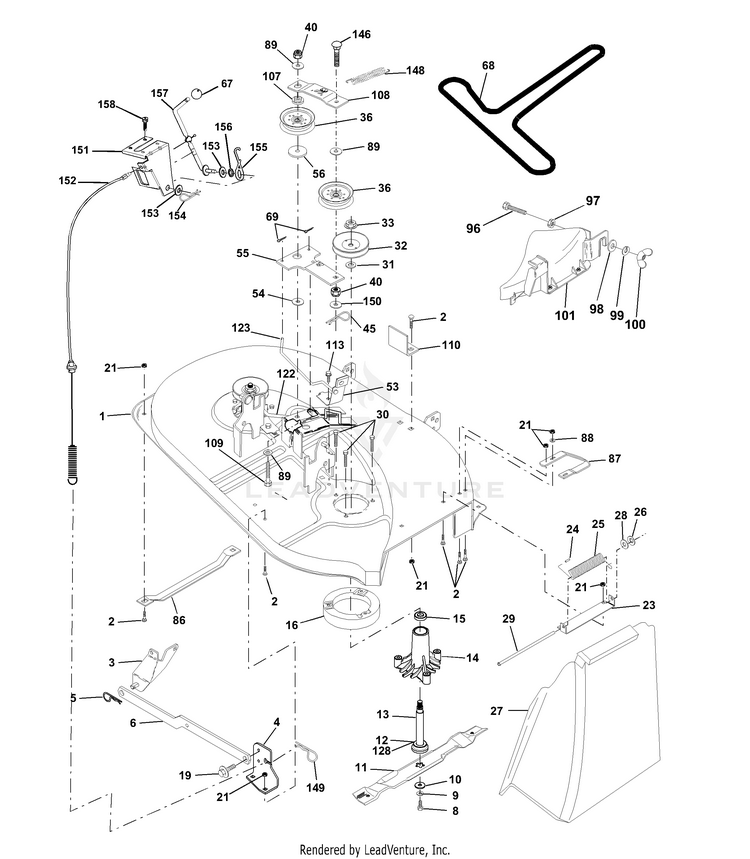

Mower Deck

...
...
1
Mower Housing Assembly HUS-170280
...
2
Bolt Carriage 5/16-18 x 3/4 HUS-72140506
...
3
Bracket Asm Fr. Sway Bar HUS-138017
...
4
Bracket Deck Sway Bar 38"/42" HUS-169970
...
5
Retainer Spring HUS-4939M
...
6
Arm, Suspension, Rear HUS-130832
...
8
Bolt 3/8-24 x 1.25 Grade 8 HUS-850857
...
9
Washer, Lock 3/8 HUS-10030600
...
10
Washer,Hardened HUS-140296
...
11
Blade Mower HUS-134148
...
12
Bearing, Ball HUS-129895
...
13
Shaft Assembly, Mandrel, Vented (Includes Key Number 6) HUS-137645
...
14
Housing, Mandrel, Vented HUS-128774
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Vented Mower Deck HUS-140329
...
19
Bolt, Shoulder HUS-132827
...
21
Nut HUS-73680500
...
23
Bracket, Mower Deflector HUS-137607
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Deflector HUS-123713X
...
26
Nut, Push HUS-110452X
...
27
Shield, Deflector HUS-106736X428
...
28
Washer 11/32 x 5/8 x 16 Gauge HUS-19111016
...
29
Rod, Hinge HUS-106735X
...
30
Screw Thdrol. Washer Head HUS-157722
...
31
Washer, Spacer HUS-129963
...
32
Pulley, Mandrel HUS-153532
...
33
Nut, Toplock 9/16 HUS-137266
...
36
Pulley, Idler, Flat HUS-131494
...
40
Nut, Crownlock 3/8-16 Unc HUS-73680600
...
45
Retainer HUS-4497H
...
53
Brake Assembly HUS-130840
...
54
Washer,Hardened HUS-133943
...
55
Idler Arm Assembly HUS-133840
...
56
Spacer, Retainer HUS-165723
...
67
Knob HUS-106932X
...
68
V-Belt, 42" Mower HUS-144200
...
69
Pin, Cotter 3/32 x 3/4 HUS-76020312
...
86
Runner,LH HUS-7631J
...
87
Runner,RH HUS-128772
...
88
Washer 11/32 x 3/4 x 16 Ga HUS-19111216
...
89
Washer 13/32 x 1 x 12 Ga. HUS-19131612
...
96
Bolt 3/8-16 x 1-1/4 Mulcher HUS-74930620
...
97
Nut Centerlock 3/8-16 Unc HUS-73930600
...
98
Washer 13/32 x 1-1/4 x 16 Ga. HUS-19132016
...
99
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
100
Nut Wing HUS-135651
...
101
Cover Asm Mulching 38" HUS-132803
...
107
Spacer Retainer HUS-133502
...
108
Stiffener, Idler Arm HUS-133503
...
109
Bolt, Hex Hd 3/8-16 x 2-1/2 HUS-74760640
...
110
Upstop Deck Front 38" HUS-142587
...
113
Screw 5/16-1/ x 3/4 HUS-17060512
...
122
Rod, Brake LH HUS-131289
...
123
Rod, Brake RH HUS-169971
...
128
Washer Felt HUS-153390
...
146
Bolt Carriage Idler HUS-165891
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow HUS-165898
...
150
Washer 9/32 x 3/4 x 16 Ga. HUS-19091216
...
151
Bracket Clutch Cable HUS-169670
...
152
Clutch Cable 38"/46" HUS-172758
...
153
Washer Flat 3/8" Type B HUS-169674
...
154
Spring Retainer HUS-169675
...
155
Spring Retention LVR CLTCH CAB HUS-169671
...
156
Spacer Clutch Cable HUS-169672
...
157
Rod Clutch Cable 3/8" HUS-169669
...
158
Screw Hex Thd Cut 1/4-20 x 5/8 HUS-17720410
...
xx
Mandrel Assembly (Includes Key Numbers 12-15, 17-19, 31 and 33) HUS-130794
...
xx
Mower Deck Complete HUS-171665
