Husqvarna PP1338A (1997) Tractor

Model: PP1338A (1997)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CONTROL-THROT/CHO HUS-157626
...
2
SCREW LT HUS-17720410
...
3
CHECK WITH SUPPLIER HUS-SUPPLIER
...
4
MUFFLER TEC. 13HP HUS-156700
...
13
GASKET ENG 1 313 LD TIN PLATED HUS-272293
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
23
SHIELD-HEAT HUS-156123
...
29
SUB= 532137180 HUS-137180
...
31
SUB= 161911 HUS-140280
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17490512
...
37
LINE FUEL HUS-137040
...
38
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
38
CHECK WITH SUPPLIER HUS-SUPPLIER
...
40
SUB= 532124028 HUS-124028X
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
62
LOCKWASHER HUS-10040500
...
78
SCREW HUS-17490620
...
81
NUT HUS-128861
...
85
SCREW HEX HD CAP HUS-123528X

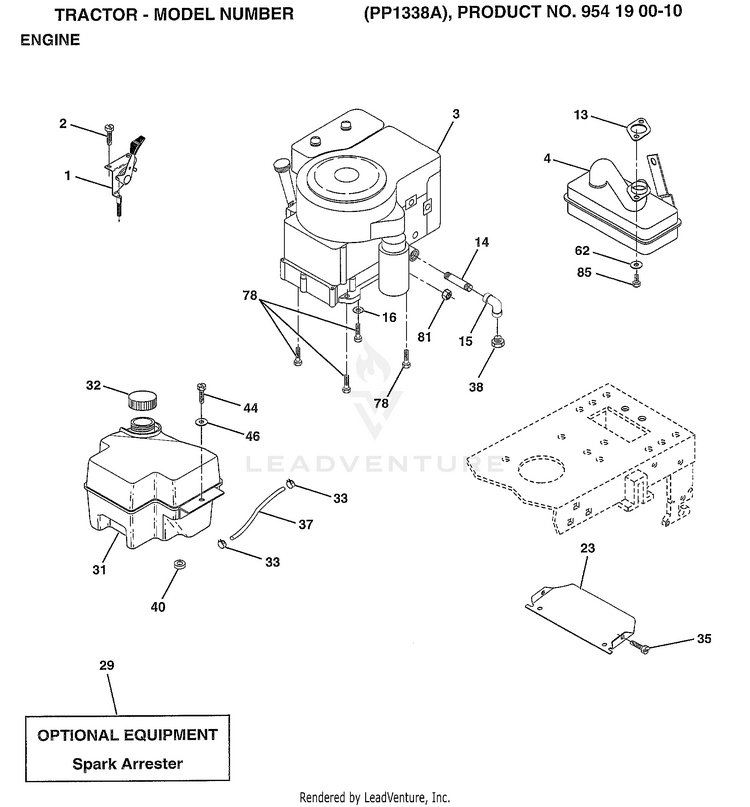

Schematic Image Zoomed
