product name

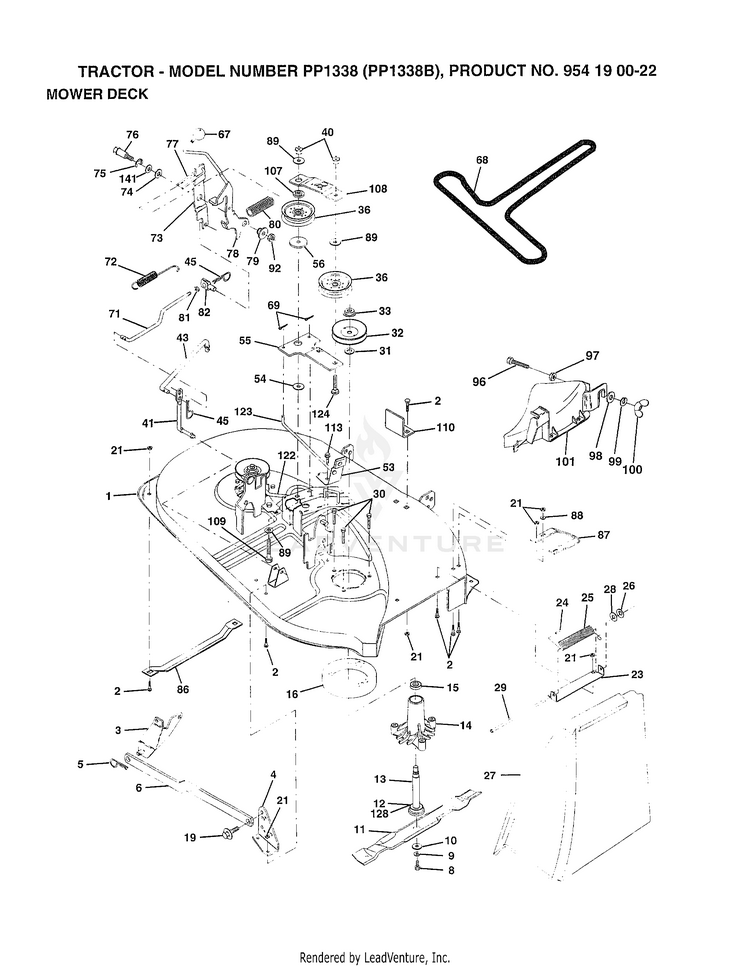

Husqvarna PP1338 (1999 & Before) Tractor

Model: PP1338 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

MOWER DECK

...
...
1
SUB= 145775 HUS-142829
...
2
BOLT HUS-71240506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRKT DECK SW BAR HUS-138440
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.38""V.MULCH" HUS-134148
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
19
BOLT SHD 5/16-18 HUS-132827
...
21
SUB= 73690500 HUS-73680500
...
23
BRKT DEFLECTOR HUS-137607
...
25
SPRING TORSION HUS-123713X
...
27
DEFLECTOR-SHLD T HUS-106736X
...
28
WASHER HUS-19111016
...
29
ROD-HINGE T HUS-106735X
...
30
"SCREW-THD ROLL,WA" HUS-157722
...
31
WASHER HUS-129963
...
32
PULLEY.MANDREL.38 HUS-153532
...
33
SUB= 139729 HUS-137266
...
36
FLAT IDLER PULLEY HUS-131494
...
40
SUB= 73690600 HUS-73680600
...
41
PIVOT ROD HUS-133551
...
43
CLUTCH ROD SECOND HUS-133504
...
53
BRAKE ASM HUS-130840
...
54
HARDENED WASHER HUS-133943
...
55
IDLER ARM ASSY HUS-133840
...
56
SPACER RETAINER HUS-122052X
...
67
KNOB.RD.7/16-14 HUS-162132
...
68
BELT.V.T-PATH HUS-144200
...
69
SUB= 3145 HUS-76020312
...
71
ROD CLUTCH 38/42 HUS-142427
...
72
RETURN SPRING HUS-131870
...
73
CLUTCH ARM SECOND HUS-127847
...
74
WASHER HUS-121748X
...
75
RING HUS-12000029
...
76
SHOULDER BOLT HUS-128903
...
77
SPRING KEEPER HUS-127845
...
78
ARM.ASM.CLUTCH. HUS-155190
...
79
BUSHING HUS-127498
...
80
SPRING.CLUTCH.MWR HUS-153701
...
81
NUT HUS-73350600
...
82
TRUNION ADJ HUS-142028
...
86
RUNNER-LH M HUS-7631J
...
87
RUNNER RH HUS-128772
...
88
WASHER M HUS-19111216
...
89
WASHER GT HUS-19131612
...
92
NUT HUS-73800600
...
96
HEX BOLT HUS-74930620
...
97
LOCKNUT HUS-73930600
...
98
SUB= 19132012 HUS-19132016
...
99
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
100
WINGNUT HUS-135651
...
101
COVER.MULCHER HUS-132803
...
107
RETAINER SPACER HUS-133502
...
108
IDLER ARM STIFF HUS-133503
...
109
BOLT HUS-74760640
...
110
UPSTOP DECK FT 38 HUS-142587
...
113
SCREW HUS-17490512
...
122
BRAKE ROD LH HUS-131289
...
123
BRAKE ROD RH HUS-131288
...
124
BOLT HUS-72110614
...
128
WASHER.FELT. HUS-153390
...
141
WASHER .T HUS-6266H
...
xx
MANDREL ASM HUS-130794
...
xx
DECK SER 38 TPATH HUS-142820
