Husqvarna PP12R38MIA (1993) Tractor

Model: PP12R38MIA (1993)

Back To Assemblies

Save Part Not Listed?
product name

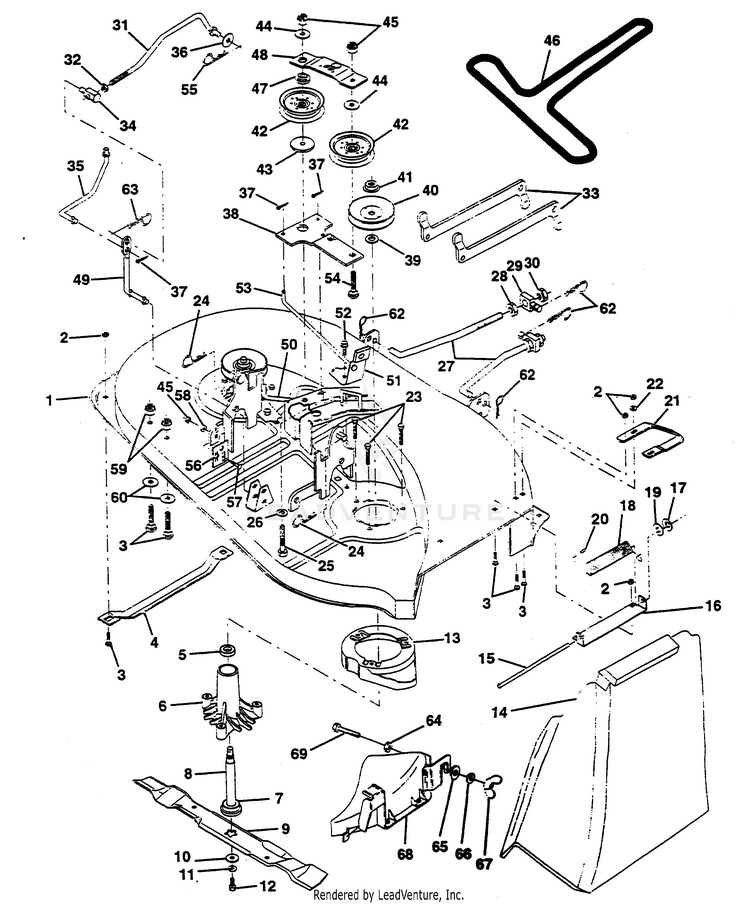

MOWER DECK

...
...
1
KIT.DECK.WLDMNT.38"LR HUS-532188249
...
2
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
3
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
4
Runner, Mower LH HUS-532007631
...
5
Bearing HUS-532110485
...
6
Housing, Mandrel HUS-532128774
...
7
BALL-BEARING 6204-2RS HUS-738220419
...
8
KIT MANDREL W/NUT HUS-532137646
...
9
Blade, Mulching HUS-532134148
...
10
Washer, Hard HUS-532140296
...
11
WASHER.3/8 HUS-539990118
...
12
Bolt, Hex 3/8-24 x 1-1/4 Grade 8 HUS-532850857
...
13
Stripper, Mower HUS-532174493
...
14
Shield, Deflector HUS-532106736
...
15
Rod, Hinge HUS-532106735
...
16
Bracket Assembly, Deflector HUS-532137607
...
17
Pushnut HUS-532110452
...
18
Spring, Deflector HUS-532123713
...
19
WASHER - 15X7.3X1.6 HUS-734116301
...
20
Cap, Sleeve HUS-532105304
...
21
Runner, R.H. HUS-532128772
...
22
WASHER - 15X7.3X1.6 HUS-734116301
...
23
BOLT.5/16-18X1.25 HUS-817580520
...
24
RETAINER SPRING HUS-532085902
...
25
Bolt, Hex 3/8-16 UNC x 2-1/4 HUS-874760636
...
26
Washer 13/32 x 1 x 12 Gauge HUS-819131612
...
27
Link Assembly, Front HUS-532132556
...
28
Nut, Hex, Jam 1/2-13 UNC HUS-873350800
...
29
Trunnion Blk Zinc HUS-532175689
...
30
NUT.1/2C.NYLOC HUS-539101331
...
31
Clutch Rod, Primary HUS-532132553
...
32
Nut, Hex 3/8-16 HUS-873220600
...
33
Arm, Suspension, Rear HUS-532132559
...
34
Trunnion 3/8-16 HUS-532133604
...
35
Clutch Rod, Secondary HUS-532132554
...
36
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
37
COTTER PIN HUS-532003145
...
38
Idler Arm HUS-532133840
...
39
SPACER, MANDREL HUS-532187690
...
40
MANDREL.PULLEY.38.YELLOW HUS-532173435
...
41
KIT.NUT.FLANGE HUS-532139729
...
42
PULLEY.IDLER.FLAT HUS-532173438
...
43
Spacer Retainer HUS-532165723
...
44
Washer 13/32 x 1 x 12 Gauge HUS-819131612
...
45
Nut, Crownlock 3/8-16 HUS-873680600
...
46
V-Belt Mower 42" HUS-532144200
...
47
Spacer, Idler Arm HUS-532133502
...
48
Stiffener, Idler Arm HUS-532133503
...
49
Rod, Pivot HUS-532133551
...
50
Rod, Brake, L.H. HUS-532131289
...
51
Brake Assembly HUS-532130840
...
52
HCS.5/16-18X3/4 HUS-539976934
...
53
Rod, Brake, R.H. HUS-532131288
...
54
Bolt, Carriage 3/8-16 x 1-3/4 Grade 5 HUS-872110614
...
55
Retainer Spring HUS-532004921
...
56
Adjustment Plate, Rear Link HUS-536136782
...
57
Bolt, Carriage 3/8-16 HUS-872140606
...
58
WASHER HUS-734117201
...
59
Locknut, Hex, with Washer Insert 5/16-18 HUS-873800500
...
60
Washer 11/32 x 11/16 x 16 Gauge HUS-819111112
...
62
SPRING RETAINER HUS-532003146
...
63
RETAINER M HUS-532004497
...
64
LOCKNUT 3/8-16 NLA HUS-873770600
...
65
Washer 13/32 X 1-1/4 X 12 Ga HUS-819132012
...
66
WASHER.3/8 HUS-539990118
...
67
Wing Nut HUS-532135651
...
68
Cover Assembly, Mulching HUS-532132803
...
69
Bolt, Hex Head 3/8-16 x 1-1/4 HUS-874930620
...
xx
Mandrel Assembly (Inc. 5-8, 10-12, 39 & 41); Not Shown. HUS-532130794
...
xx
DECK SERV 38 MWR Order Seperately Mulching Blade & Components, Key# 9,64-69); Not Shown. HUS-532142862
