Husqvarna PP12R38MI (1993) Tractor

Model: PP12R38MI (1993)

Back To Assemblies

Save Part Not Listed?
product name

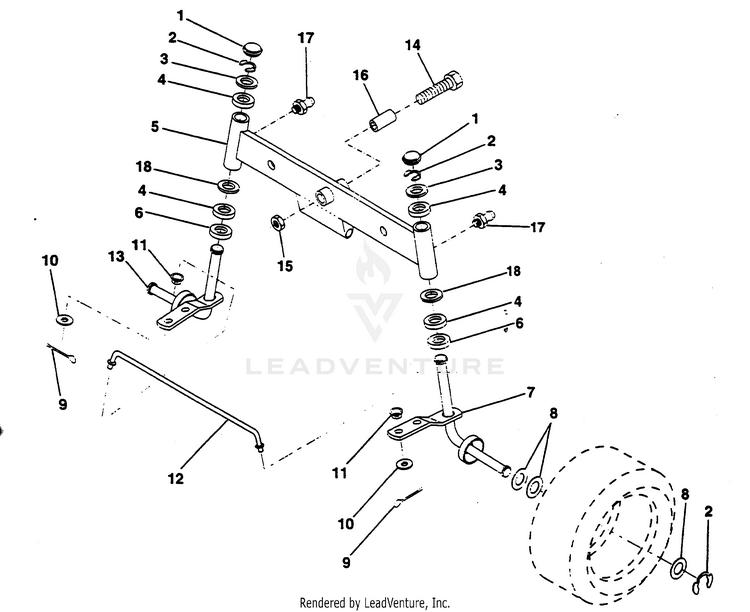

FRONT AXLE

...
...
1
Cap, Spindle HUS-532121232
...
2
Ring, Clip HUS-812000029
...
3
Washer 25/32 x 1-5/8 x 16 Gauge HUS-532121748
...
4
BEARING.STEERING.COLUMN HUS-532003366
...
5
Axle Asm Fr LT W/gzks 38/42 HUS-532142033
...
6
WASHER THRUST HUS-532006266
...
7
Spindle Assembly, R.H. HUS-532127062
...
8
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
9
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
10
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
11
Bushing HUS-532126847
...
12
ROD.TIE.WIRE.FORM HUS-532192757
...
13
Spindle Assembly, L.H. HUS-532137061
...
14
Bolt, Hex Head 5/8-11 x 3-1/2 HUS-874011056
...
15
Nut, Crownlock HUS-873681000
...
16
KIT-AXLE HUS-532155134
...
18
Washer 27/32 x 1-1/4 x 16 Gauge HUS-819272016
