Husqvarna PP12R38MI (1993) Tractor

Model: PP12R38MI (1993)

Back To Assemblies

Save Part Not Listed?
product name

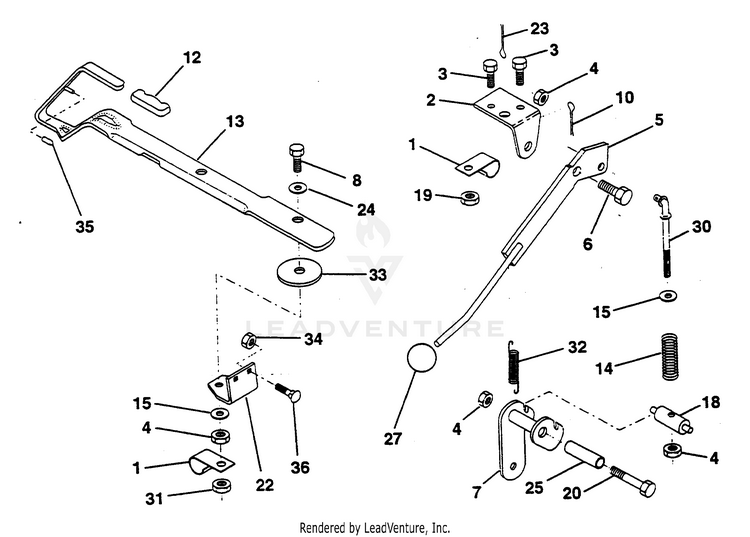

MOWER LIFT LEVER

...
...
1
Clip, Insulated HUS-532126470
...
2
Bracket, Mower Clutch HUS-532122018
...
3
HCS.1/4-20.X1/2 HUS-539990071
...
4
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
5
Assembly, Clutch Lever HUS-532132552
...
6
Bolt, Shoulder HUS-532106451
...
7
Assembly, Mower Clutch Arm HUS-532135110
...
8
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
10
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
12
Handle, Lift Lever HUS-532122027
...
13
Assembly, Lift Handle HUS-532136658
...
14
Spring, Compression HUS-532133939
...
15
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
18
Trunnion, Threaded 3/8-16 HUS-532135107
...
19
Nut, Crownlock 1/4-20 HUS-873680400
...
20
Bolt, Hex Head, Fin. 3/8-16 UNC x 2-3/4 HUS-874760644
...
22
Bracket, Lift Lever HUS-532132561
...
23
COTTER PIN HUS-532003145
...
24
Washer 25/64 x 1-1/4 x 12 Gauge HUS-532007672
...
25
Tube, Spacer HUS-532121933
...
27
Knob HUS-532121466
...
30
Rod, Tension, Clutch HUS-532135039
...
31
Nut HUS-873680600
...
32
Spring, Extension, Return HUS-532133435
...
33
Washer 13/32 x 2-3/8 x 8 Gauge HUS-532062333
...
34
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
35
Cap, Vinyl, Red HUS-532133603
...
36
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
