Husqvarna PP125R38J (1994) Tractor

Model: PP125R38J (1994)

Back To Assemblies

Save Part Not Listed?
product name

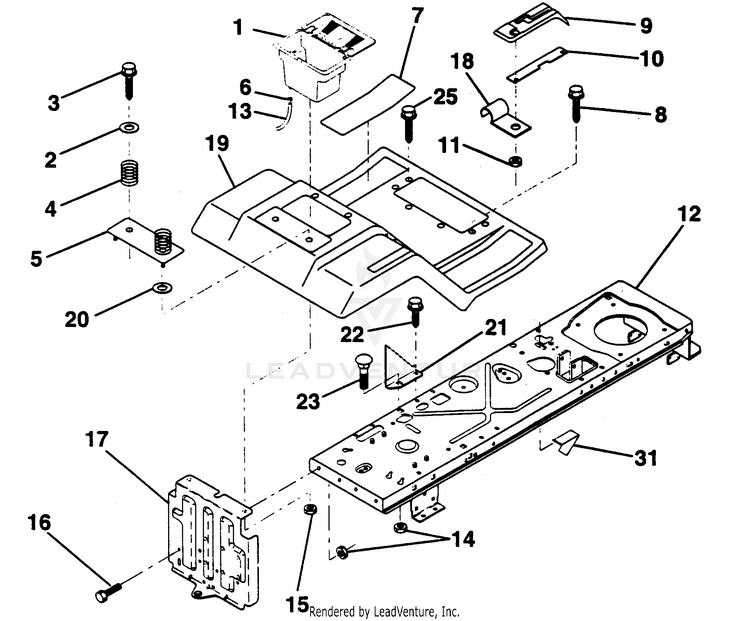

FENDER / CHASSIS

...
...
1
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
2
Washer 13/32 x 1-1/4 x 12 Ga. HUS-819132012
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
4
SRPING.SEAT HUS-539110300
...
5
Plate Asm. Pnt Battery Fender HUS-532125139
...
6
Clamp Hose Olive HUS-532109596
...
7
Pad Footrest HUS-532134214
...
8
HCS.5/16-18X3/4 HUS-539976934
...
9
Console Shf. 6sp W/Ign. HUS-532126995
...
10
Plate Lock Shift HUS-532139783
...
11
Nut Self Thd. Wsh-Hd 1/4 HUS-532124346
...
12
Chassis Asm. Weldment HUS-532140784
...
13
Tube Plastic HUS-532109238
...
14
Nut Lock Hex W/Ins 5/16-18 HUS-873800500
...
15
Nut Crownlock 1/4-20 unc HUS-873680400
...
16
HCS.5/16-18X3/4 HUS-539976934
...
17
Drawbar Asm. HUS-532140782
...
18
Clip Insulated HUS-532126470
...
19
Fender/Footrest HUS-532125394
...
20
Washer 9/32 X 7/8 X 16ga HUS-819091416
...
21
Bracket Stop Depth HUS-532140297
...
22
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
23
Bolt Rdhdsqnk. 5/16-18 x 3/4 HUS-872110506
...
25
BLT 5/16-18 X 1 THRD FORM ZD HUS-539113226
...
31
KIT/CLUTCH BRAKE ACTUATOR HUS-532146613
