Husqvarna PP125H42JA (1994) Tractor

Model: PP125H42JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

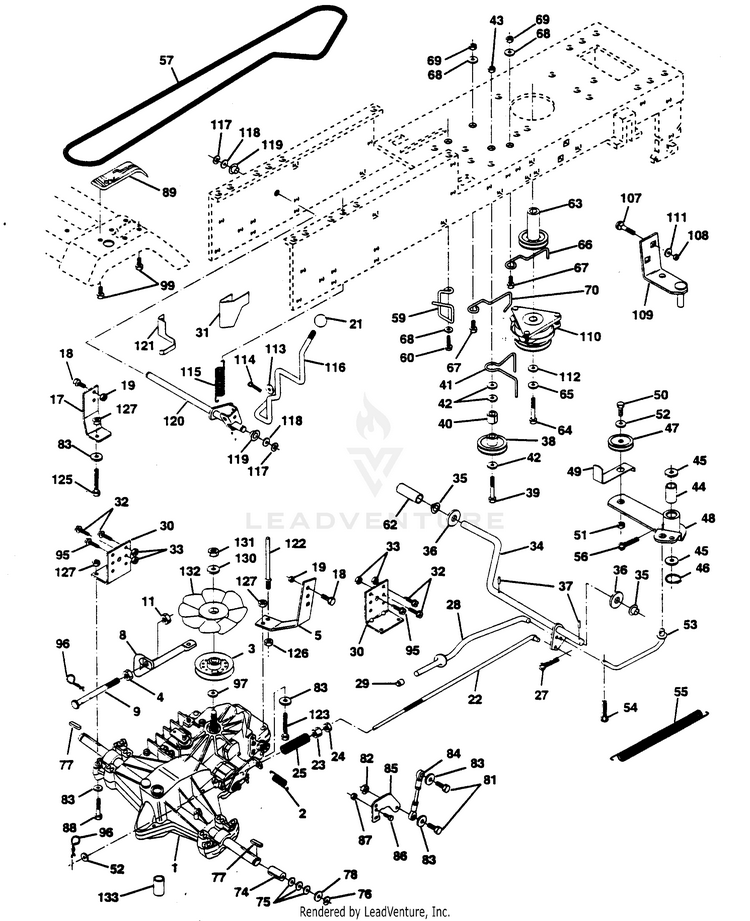

DRIVE

...
...
1
TRANSAXLE ASSEMBLY HUS-532150071
...
2
Spring, Return, Brake HUS-532142431
...
3
Pulley, Transaxle HUS-532143995
...
4
Hex, Nut 5/16-18 HUS-873220500
...
5
Strap Torque Rh Hydro 18/20" T HUS-532140157
...
8
HUS-532144832
...
9
HUS-532144832
...
11
Nut Lock Hex W/Ins 5/16-18 Unc P HUS-873800500
...
17
Strap Torque Lh Hydro 18/20" T HUS-532140158
...
18
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
19
Nut HUS-873680600
...
21
Knob, Duckhead 1/2-13 HUS-532121274
...
22
Rod, Brake Hydro HUS-532145627
...
23
Nut, Hex 3/8-16 HUS-873220600
...
24
Nut HUS-873680600
...
25
SPRING, BRAKE ROD HUS-532151332
...
27
Pin Cotter 1/8 x 3/4 CAD. HUS-876020412
...
28
Rod, Parking Brake HUS-502140448
...
29
Cap, Parking Brake HUS-532071673
...
30
Bracket, Transaxle HUS-532130807
...
31
Keeper Belt Lh HUS-532127275
...
32
HCS.5/16-18X3/4 HUS-539976934
...
33
Nut Lock Hex W/Ins. 5/16-18 Unc HUS-873800500
...
34
Shaft, Foot Pedal HUS-532122424
...
35
Bearing, Nylon HUS-532120183
...
36
Washer HUS-819211616
...
37
DRIVE PIN HUS-532002882
...
38
Pulley, Idler, Flat HUS-532123674
...
39
Bolt HUS-874760644
...
40
Spacer, Split HUS-532124965
...
41
Keeper, Belt Retainer HUS-532109070
...
42
WASHER HUS-734117201
...
43
Nut HUS-873680600
...
44
Bearing, Nylon HUS-532105706
...
45
Washer, Hardened HUS-532110812
...
46
Ring, Klip HUS-812000039
...
47
Pulley, Idler V Groove HUS-532139245
...
48
Bellcrank Assembly HUS-532123789
...
49
Retainer, Belt HUS-532123205
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
51
Nut HUS-873680600
...
52
Washer HUS-819131316
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
54
Pin HUS-876020412
...
55
Spring, Return, Clutch HUS-532105709
...
56
Pin HUS-876020412
...
57
V-Belt, Ground Drive HUS-532140294
...
59
Keeper, Center Span HUS-532169691
...
60
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
62
Cover, Pedal HUS-532008883
...
63
Pulley, Engine HUS-532140189
...
64
SUB= 150280 HUS-532150280
...
65
LOCKWASHER.7/16 HUS-539990247
...
66
Keeper Belt Engine HUS-532105730
...
67
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
68
WASHER HUS-734117201
...
69
Nut HUS-873680600
...
70
Keeper Belt Engine HUS-532121218
...
74
Spacer, Split HUS-532121199
...
75
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
76
E-Ring HUS-812000001
...
77
Key, Square HUS-532123583
...
78
Washer 25/32 x 1-5/8 x 16 Gauge HUS-532121748
...
81
Bolt 5/16-18 x 1-1/4 HUS-874520520
...
82
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
83
WASHER - 15X7.3X1.6 HUS-734116301
...
84
Rod, Tie Hydro 18" Tires HUS-532141392
...
85
Arm, Control Hydro HUS-532140156
...
86
Screw Cap Hex 5/16 x 18 x 1 HUS-871070516
...
87
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
88
Bolt Fin Hex 5/16-18 Unc HUS-874780544
...
89
HUS-532153764
...
95
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
96
RETAINER M HUS-532004497
...
97
Washer 21/32 x 1 x 16 Ga. HUS-819211616
...
99
Screw HUS-532142432
...
107
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
108
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
109
Bracket, Asm Mtg Clutch HUS-532137141
...
110
KIT CLUTCH ELECT REPL HUS-532142600
...
111
Washer 11/32 x 5/8 x 12 Ga. HUS-819111012
...
112
Washer 1-1/2 OD x 15/32 ID x .250 HUS-532126197
...
113
BUSHING HUS-734117771
...
114
Pin Cotter 1/8 x 1 CAD HUS-876020416
...
115
Spring Torsion T/A HUS-532123782
...
116
Rod Shift Fender YT HUS-532141003
...
117
Ring Klip #5304-62 HUS-812000008
...
118
Washer 21/32 x 1-1/4 x 16 Ga. HUS-819212016
...
119
Bushing Rod Steering 629/632 ID HUS-532071208
...
120
SHAFT ASSY HUS-532156046
...
121
Keeper Belt Lh Hydro 0750. 18/20" HUS-532140470
...
122
Keeper Belt Rh Hydro 0750. 18/20" HUS-532140469
...
123
Bolt Fin Hex 5/16-18 x 2-1/4 HUS-874780536
...
125
HCS.5/16-18X1 1/2.GR5 HUS-539976935
...
126
Nut Keps Hex 3/8-16 Unc HUS-873510600
...
127
Nut Lock Hex W/Ins 5/16-18 Unc P HUS-873800500
...
130
Washer Belleville .501D x 1.50D HUS-532141322
...
131
Nut Nylon Insert 1/2-20 Unf. HUS-532050831
...
132
Fan, Hydro 7" HUS-532140462
...
133
Line Fuel Hydro 4" HUS-532142564
