Husqvarna PP125H38KA (1995) Tractor

Model: PP125H38KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

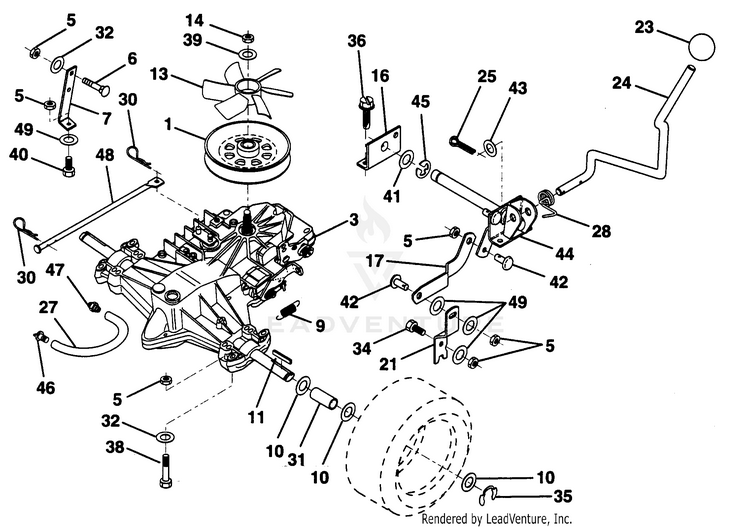

TRANSAXLE

...
...
1
Pulley HUS-532140779
...
3
Transaxle, Hydro 0310-0500 HUS-532140607
...
5
Nut Lock Hex w/Ins. 5/16-18 HUS-873800500
...
6
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
7
Strap, Torque HUS-532140774
...
9
Spring Return Brake HUS-532146682
...
10
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
11
Key, Square HUS-532123583
...
13
Fan, Transaxle, Hydro HUS-532140778
...
14
Nut Lock 1/2-20 UNF x 3/4 x 7/16 HUS-532009204
...
16
Support, Shift Handle HUS-532140763
...
17
Link, Shift HUS-532140767
...
21
Lever, Shift HUS-532140773
...
23
Knob, Shifter HUS-532106933
...
24
Rod, Shifter HUS-532140765
...
25
Pin, Cotter 1/8 x 1 HUS-876020416
...
27
Hose, Vent HUS-532142922
...
28
Spring, Torsion HUS-532140772
...
30
RETAINER M HUS-532004497
...
31
Spacer HUS-532121199
...
32
WASHER - 15X7.3X1.6 HUS-734116301
...
34
BOLT FIN HEX 5/16-18 X 1 HUS-874780516
...
35
E-Ring HUS-812000001
...
36
HCS.1/4-20.X1/2 HUS-539990071
...
38
Bolt, Hex Head 5/16-18 x 2-1/2 HUS-874760540
...
39
Washer 17/32 x 1-3/16 x 12 Ga. HUS-819171912
...
40
HCS.5/16-18X1 1/2.GR5 HUS-539976935
...
41
Washer 21/32 x 1-1/4 x 13 Ga. HUS-819212013
...
42
Pivot Pin HUS-532140769
...
43
BUSHING HUS-734117771
...
44
PIVOT SHAFT HUS-532156047
...
45
E-Ring HUS-812000002
...
48
Actuator, Bypass, Hydro HUS-532140912
...
49
WASHER - 15X7.3X1.6 HUS-734116301
