Husqvarna PP125H38K (1995) Tractor

Model: PP125H38K (1995)

Back To Assemblies

Save Part Not Listed?
product name

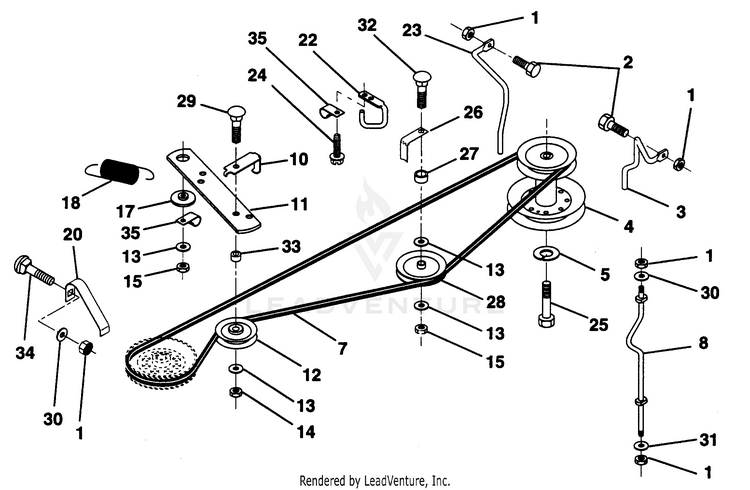

GROUND DRIVE

...
...
1
Nut, Lock Hx w/Ins 5/16-18 HUS-873800500
...
2
HCS.5/16-18X3/4 HUS-539976934
...
3
Keeper, Belt RH Front HUS-532140917
...
4
Pulley, Engine HUS-532138029
...
5
LOCKWASHER.7/16 HUS-539990247
...
7
V-Belt HUS-532140910
...
8
Keeper, Belt RH HUS-532140785
...
10
Keeper, Belt, Idler Pulley HUS-532140780
...
11
Arm, Idler HUS-532140911
...
12
Idler, Flat HUS-532123674
...
13
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
14
Nut HUS-873680600
...
15
Nut, Hex, Lock Hex w/wsh 3/8-16 HUS-873680600
...
17
Spacer Retainer HUS-532165723
...
18
Spring, Extension HUS-532131459
...
20
Keeper, Belt LH HUS-532140909
...
22
Keeper Frame Ground Drive Belt HUS-532123404
...
23
Keeper, Belt LH Front HUS-532142240
...
24
HCS.1/4-20.X1/2 HUS-539990071
...
25
Bolt, Hex 7/16-20 HUS-871170744
...
26
Keeper, Belt HUS-532140913
...
27
Spacer HUS-532140914
...
28
Pulley, V-Idler HUS-532139123
...
29
Bolt Rdhd Sq 3/8-16 x 2-1/4 HUS-872110618
...
30
WASHER - 15X7.3X1.6 HUS-734116301
...
31
WASHER - 15X7.3X1.6 HUS-734116301
...
32
Carriage Bolt HUS-872140620
...
33
Spacer HUS-532000160
...
34
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
35
Clip Insulator HUS-532126472
