Husqvarna PP12542JA (1994) Tractor

Model: PP12542JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

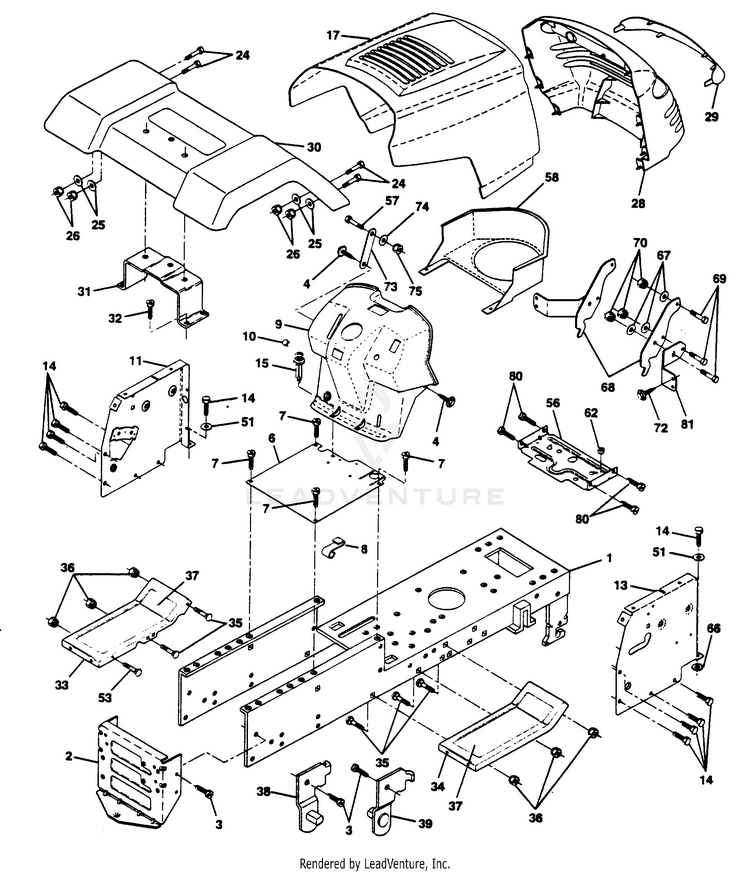

CHASSIS AND ENCLOSURES

...
...
1
Chassis Weldment 11ga HUS-532145501
...
2
HUS-532145009
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
4
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
6
Saddle LT Fender Shift HUS-532140169
...
7
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
8
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
9
Dash Private Label HUS-532140072
...
10
Plug Button HUS-532005479
...
11
Panel Pnt Dash Lh HUS-532140311
...
13
Panel Dash Rh Weldment HUS-532140178
...
14
Screw Thdrol 3/8-16x1/2 Ty-tt HUS-817490608
...
15
Rivet Push Plate D Pliastick Blk. HUS-532138096
...
17
Hood Paint Steel Private Label HUS-53214473
...
24
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 HUS-874780616
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
28
GRILL/LENS ASM. HUS-532179101
...
29
Lens Grille Private Label HUS-532140273
...
30
Fender Pnt HUS-532141324
...
31
Bracket Pnt Fender HUS-532136619
...
32
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
33
Footrest Pnt Lh HUS-532124888
...
34
Footrest Pnt Rh HUS-532124889
...
35
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 HUS-872110606
...
36
Nut HUS-873680600
...
37
Pad Footrest HUS-532133671
...
38
Bracket, Asm. Pivot, L.H., Mower Rear HUS-532139886
...
39
Bracket, Asm. Pivot, R.H., Mower Rear HUS-532139887
...
51
Washer 13/32 x 3/4 x 16 Ga. HUS-819131216
...
53
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
56
Support Battery HUS-532140281
...
57
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
58
SUB= 150127 HUS-532150127
...
62
Bushing HUS-532124028
...
66
WASHER.3/8 HUS-539990118
...
67
Washer 9/32 x 7/8 x 16 Ga. HUS-819091416
...
68
Hinge Pickoff Hood HUS-532140219
...
69
Bolt Hex Hd 1/4-20 HUS-874760412
...
70
Nut, Crownlock 1/4-20 HUS-873680400
...
72
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
73
Brace HUS-532142779
...
74
Washer 9/32 x 7/8 x 16 Ga. HUS-819091416
...
75
NUT.1/4C.NYLOC HUS-539976978
...
80
HCS.5/16-18X3/4 HUS-539976934
...
81
Bracket, Grill HUS-532143007
