product name

Husqvarna PP12542JA (1994) Tractor

Model: PP12542JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

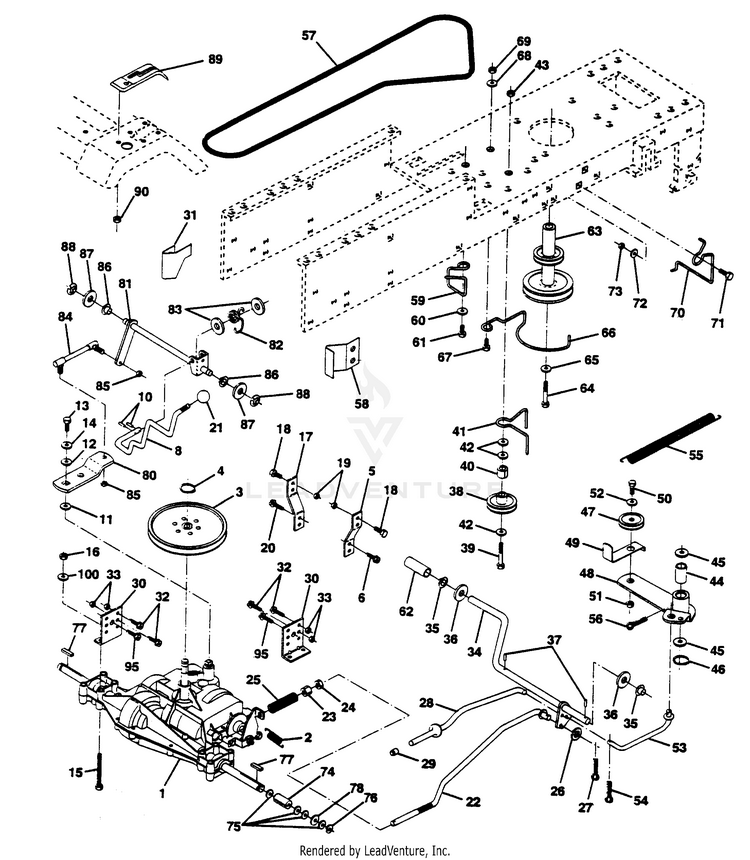

DRIVE

...
...
1
TRANSAXLE 6 SPEED HUS-532170269
...
2
Spring Return Brake HUS-532146682
...
3
Pulley Transaxle 18" tires HUS-532123666
...
4
Ring, Retaining HUS-532002267
...
5
Strap Torque 30 Degrees HUS-532121520
...
6
HCS.5/16-18X3/4 HUS-539976934
...
8
Rod Shifter HUS-532141003
...
10
Pin Cotter 1/8 X 1 Cad HUS-876020416
...
11
Washer Plate Shf 388 Sq Hole HUS-532105701
...
12
Washer 9/32 X 3/4 X 10 Ga HUS-819151216
...
13
Bolt Fin Hex 1/4-28unfx3/4 Gr8 HUS-871040412
...
14
Washer Lock Hvy Helical 1/4 HUS-810040400
...
15
Bolt Fin Hex 5/16 - 18 UNC x 2.75 HUS-874780544
...
16
Nut Hex W/Ins Lock 5/16-18 HUS-873800500
...
17
Strap Torque LT HUS-532121520
...
18
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 HUS-874780616
...
19
Nut HUS-873680600
...
20
HCS.5/16-18X3/4 HUS-539976934
...
21
Knob Duckhead 1/2-13 UNC HUS-532106933
...
22
Rod Brake Blk Zinc 27 326 HUS-532130804
...
23
Nut HUS-873680600
...
24
Nut, Hex 3/8-16 HUS-873220600
...
25
SPRING, BRAKE ROD HUS-532151332
...
26
Washer 13/32 X 13/16 X 16 Ga HUS-819131316
...
27
Pin Cotter 1/8 X 3/4 Cad HUS-876020412
...
28
Rod, Parking Brake HUS-532145204
...
29
Cap Brake Parking Black HUS-532071673
...
30
Bracket Mtg Transaxle HUS-532130807
...
31
Keeper Belt LH LT 14 Ga HUS-532127275
...
32
HCS.5/16-18X3/4 HUS-539976934
...
33
Nut Hex W/Ins Lock 5/16-18 HUS-873800500
...
34
Shaft Asm Pedal Foot 1 930 HUS-532122424
...
35
Bearing Nylon Blk 629 ld HUS-532120183
...
36
Washer 21/32 X 1 X 16 Ga HUS-819211616
...
37
DRIVE PIN HUS-532002882
...
38
Pulley Idler Flat HUS-532123674
...
39
Bolt Fin Hex 3/8-16unc X 2-3/4 HUS-874760644
...
40
Spacer Split 395 X 59 Bzp HUS-532124965
...
41
Keeper Belt Retainer HUS-532109070
...
42
WASHER HUS-734117201
...
43
Nut HUS-873680600
...
44
Bearing Nyl 503 X 628 X 1 25 HUS-532105706
...
45
Washer Hardened HUS-532110812
...
46
Ring Klip #t5304-50 HUS-812000039
...
47
Pulley, Idler V Groove HUS-532139245
...
48
Bellcrank Asm Clutch HUS-532123789
...
49
Retainer Belt Style Spring HUS-532123205
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
51
Nut Crownlock 3/8-16 Unc HUS-873680600
...
52
Washer 13/32 X 13/16 X 16 Ga HUS-819131316
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
54
Pin Cotter 1/8 X 3/4 Cad HUS-876020412
...
55
Spring Return Clutch 6 75 HUS-532105709
...
56
Pin Cotter 1/8 X 3/4 Cad HUS-876020412
...
57
BELT, V GROUND DRIVE 95 25 HUS-532138255
...
58
Keeper Belt RH LT Pnt/zinc 16g HUS-532127274
...
59
Keeper, Center Span HUS-532169691
...
60
WASHER HUS-734117201
...
61
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
62
Cover, Pedal HUS-532008883
...
63
Engine Pulley HUS-532140186
...
64
SUB= 150280 HUS-532150280
...
65
LOCKWASHER.7/16 HUS-539990247
...
66
Keeper Belt Engine LH LT HUS-532129921
...
67
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
68
WASHER HUS-734117201
...
69
Nut Crownlock 3/8-16 Unc HUS-873680600
...
70
Guide Belt Mower Drive RH HUS-532134683
...
71
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
72
Washer 13/32 X 1-1/4 X 12 Ga HUS-819132012
...
73
Nut Crownlock 3/8-16 Unc HUS-873680600
...
74
Spacer Axle HUS-532109502
...
75
Washer 25/32 X 1 1/4 X 16 Ga. HUS-532121749
...
76
E-ring #5133-75 HUS-812000001
...
77
Key Square 2 0 X 1845/ 1865 HUS-532123583
...
78
Washer 25/32 X 1-5/8 X 16 Ga. HUS-532121748
...
80
Arm Shift Transaxle HUS-532131488
...
81
Shaft Asm. Cross 18" + 42" Deck HUS-532136932
...
82
Spring Torsion T/A HUS-532123782
...
83
BUSHING HUS-734117771
...
84
Rod Shift Adj. Tie HUS-532132182
...
85
NUT HUS-873610400
...
86
Bushing Rod Strg. 629/632 ld HUS-532071208
...
87
Washer 21/32 x 1 - 1/4 x 16 Ga. HUS-819212016
...
88
Ring Klip #5304 - 62 HUS-812000008
...
89
Console Shift 6 st LT HUS-532139964
...
90
Nut Self-thd Wsh-hd 1/4 Zinc HUS-532124346
...
95
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
100
WASHER - 15X7.3X1.6 HUS-734116301
