Husqvarna PP12542JA (1994) Tractor

Model: PP12542JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

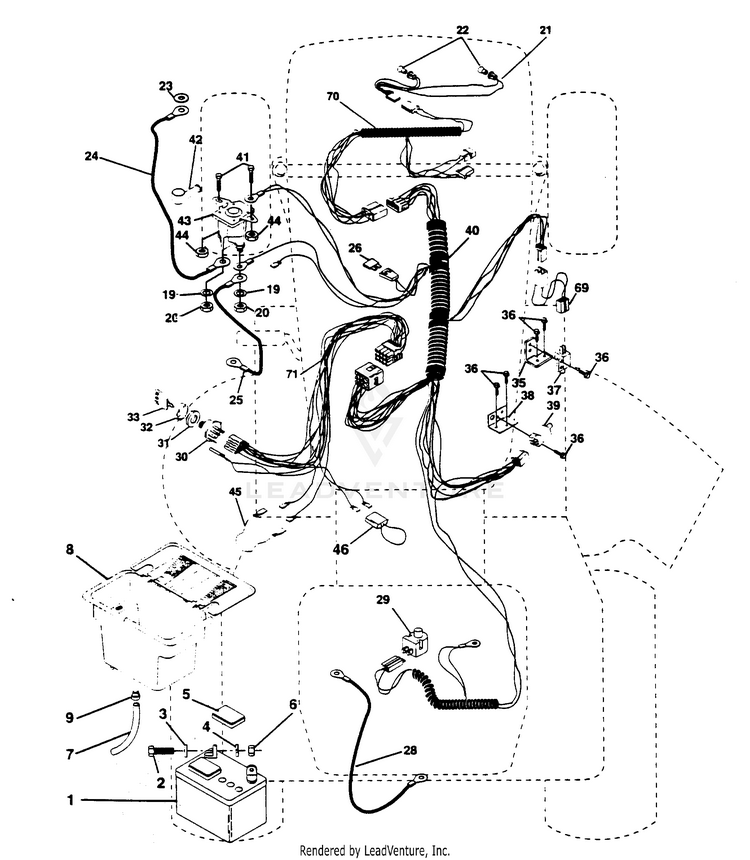

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-874760412
...
3
Washer 9/32 X 5/8 X 16 Ga. HUS-819091016
...
4
Washer Lock Hvy Helical 1/4 HUS-810040400
...
5
Caps Battery 20/25/30 AMP HUS-532121264
...
6
NUT.HEX..25-20.UNC HUS-532050675
...
7
Tube Plastic 12" HUS-532109238
...
8
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
9
Clamp Hose Olive HUS-532109596
...
19
WASHER, LOCK 1/4 HUS-810040400
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
Harness Asm Light W/4152j HUS-532136850
...
22
Bulb Light #1156 HUS-532004152
...
23
Washer Lock Internal Tooth 1/4 HUS-811150400
...
24
BATTERY CABLE HUS-532004799
...
25
Cable Battery 6 Ga 43" red HUS-532132202
...
26
Fuse 30 AMP Auto Green HUS-532108824
...
28
HUS-532004207
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
Switch Ign 4 pos w/lights HUS-532140301
...
31
Nut Ignition HUS-532124211
...
32
Cover Sw Ignition HUS-532141226
...
33
Key Ign Modleded Generic HUS-532122147
...
35
Bracket Switch Clutch HUS-532108236
...
36
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
37
Switch Intlk Clutch Red 2 Term HUS-532104445
...
38
Bracket, Switch, Interlock HUS-532140336
...
39
SWITCH.N.C *SUBS/1* HUS-539101080
...
40
Harness Chassis LT PL Mech HUS-532140707
...
41
HCS.1/4-20.X1/2 HUS-539990071
...
42
Cover, Terminal Red HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
44
Nut Keps Hex 1/4-20 Unc HUS-873640400
...
45
Adapter Ammeter Rectangular HUS-532140844
...
46
Protection Wire Loop HUS-532141940
...
69
Harness Adapter Serv Geardrive HUS-532140660
...
70
Harness, Eng. HUS-532141163
...
71
Harness Dash Lt Private Lbl HUS-532140710
