Husqvarna PP1242A (1993) Tractor

Model: PP1242A (1993)

Back To Assemblies

Save Part Not Listed?
product name

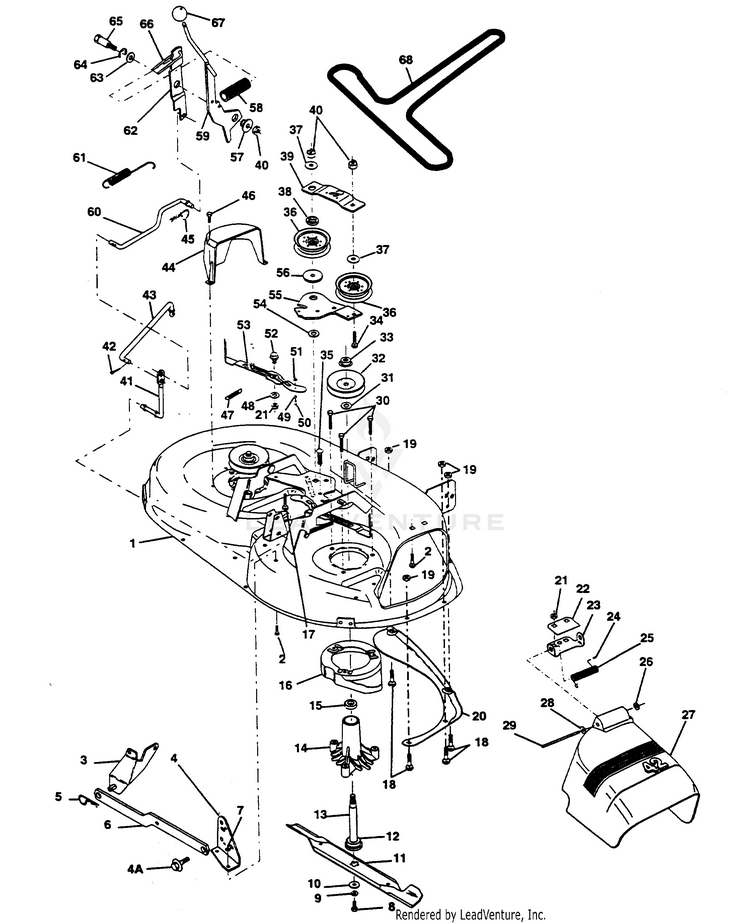

MOWER DECK 42"

...
...
1
KIT.DECK.42.TPATH HUS-532145338
...
2
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
3
Bracket Asm Fr Sway Bar 38/42 HUS-532138017
...
4
Bracket Asm Deck 42"sway Bar HUS-532138440
...
4a
Bolt Shoulder HUS-532132827
...
5
RETAINER SPRING HUS-532085902
...
6
Bar Sway Deck HUS-532178024
...
7
Locknut-hex W/ins 5/16-18unc P HUS-873800500
...
8
Bolt 3/8 - 24 X 1.25 Gr 8 HUS-532850857
...
9
WASHER.3/8 HUS-539990118
...
10
Washer, Hard HUS-532140296
...
11
Blade Mower High Perf 42" HUS-532138498
...
12
BALL-BEARING 6204-2RS HUS-738220419
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
Housing Mandrel Vented HUS-532128774
...
15
Bearing Ball Mandrel HUS-532110485
...
16
Stripper, Mower HUS-532174493
...
17
Bolt Rdhd Sqnk 3/8-16 X 2-1/4 HUS-872110618
...
18
Bolt Rdhd Sqnk 5/16-18 X 5/8 HUS-872140505
...
19
Locknut-hex W/ins 5/16-18unc P HUS-873800500
...
20
BAFFLE.VORTEX HUS-532159770
...
21
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
22
Bracket Deflector Mower 42" HUS-532177563
...
23
Bracket Deflector Mower 42" HUS-532177563
...
24
Cap Sleeve 80x 112 Blk Mower HUS-532105304
...
25
Spring Torsion Deflector 2 52 HUS-532123713
...
26
Nut Push Phos & Oil HUS-532110452
...
27
Shield Deflector Mower 42" Blk HUS-532130968
...
28
WASHER - 15X7.3X1.6 HUS-734116301
...
29
Rod Hinge 42"6 75 Wlg HUS-532131491
...
30
BOLT.5/16-18X1.25 HUS-817580520
...
31
SPACER, MANDREL HUS-532187690
...
32
Pulley, Mandrel HUS-532173436
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
Bolt Rdhd 3/8-16uncx1-3/4 Gr5 HUS-872110614
...
35
Fastner Christmas Tree HUS-532133835
...
36
PULLEY.IDLER.FLAT HUS-532173438
...
37
Washer 13/32 X 1 X 12 Ga HUS-819131612
...
38
Spacer Arm Idler Upper Hdn 42" HUS-532133502
...
39
Stiffener Arm Idler Upper 42" HUS-532133503
...
40
Nut Crownlock 3/8-16 Unc HUS-873680600
...
41
Rod Pivot W/nibs HUS-532133551
...
42
COTTER PIN HUS-532003145
...
43
Rod Clutch Secondary W/nibs HUS-532133504
...
44
Guard Mandrel LH Black HUS-532140088
...
45
RETAINER M HUS-532004497
...
46
Screw Thdrol 1/4-20x5/8 T HUS-532137729
...
47
SPRING HUS-532179748
...
48
Washer Hardened Smaller HUS-532133944
...
49
ROLLER ASM CAM FOLLOWER HUS-532174284
...
50
Bolt Shldr 10-24 Zinc Gr 5 42" HUS-532131340
...
51
Nut Lock #10-24 Unc HUS-532069180
...
52
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
53
ARM BRAKE ASSY HUS-532184907
...
54
Washer Hardened HUS-532178515
...
55
CAM ROLLER KIT HUS-532151785
...
56
Spacer Retainer HUS-532165723
...
57
Bushing 747 Od X 794 Lg Brass HUS-532127498
...
58
SUB= 153701 HUS-532153701
...
59
Arm Asm Clutch Primary HUS-532133573
...
60
ROD, CLUTCH ASM. HUS-532142655
...
61
Spring Return HUS-532131870
...
62
Arm Clutch Secondary HUS-532127847
...
63
Washer 25/32 X 1-5/8 X 16 Ga HUS-532121748
...
64
Ring Klip #t5304-75 HUS-812000029
...
65
Bolt Shoulder 3/8-16 Unc 1 44 HUS-532128903
...
66
Keeper Spring 4 000 HUS-532127845
...
67
Knob Rd 3/8-16 Plstc Thds Blk HUS-532106932
...
68
V-Belt Mower 42" 92 40 HUS-532130969
...
xx
Deck Serv 42"mch S Bar Eng/fr Not Shown. HUS-532138357
...
xx
Mandrel Asm Service (Includes Key Nos. 8-10, 12-15, 31 and 33) Not Shown. HUS-532130794
