Husqvarna PP1242 (1993) Tractor

Model: PP1242 (1993)

Back To Assemblies

Save Part Not Listed?
product name

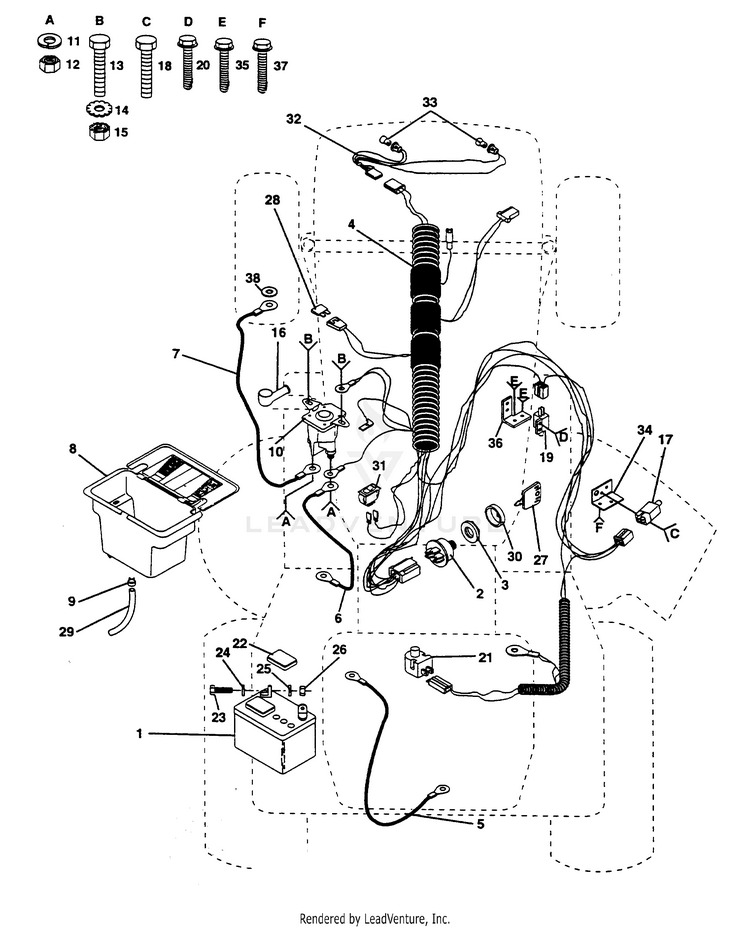

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
KIT.SWITCH.IGNITN HUS-532365402
...
3
Nut Ignition HUS-532124211
...
4
Harness Ign B&S Dash Hl HUS-532132017
...
5
HUS-532004207
...
6
Cable Battery 6 Ga 43"red HUS-532132202
...
7
BATTERY CABLE HUS-532004799
...
8
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
9
CLAMP Hose Olive HUS-532109596
...
10
KIT SOLENOID .95 HUS-532146154
...
11
WASHER, LOCK 1/4 HUS-810040400
...
12
NUT.HEX..25-20.UNC HUS-532050675
...
13
HCS.1/4-20.X1/2 HUS-539990071
...
14
WASHER, LOCK 1/4 HUS-810040400
...
15
Nut Crownlock 1/4-20 unc HUS-873680400
...
16
Cover, Terminal Red HUS-532154336
...
17
SWITCH.N.C *SUBS/1* HUS-539101080
...
18
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
19
Switch Intlk Clutch Red 2 Term HUS-532104445
...
20
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
21
SWITCH.SNAPMOUNT.NC HUS-532421062
...
22
Caps Battery 20/25/30 AMP HUS-532121264
...
23
Bolt Hex Hd 1/4-20unc X 3/4 HUS-874760412
...
24
Washer 9/32 X 5/8 X 16 Ga HUS-819091016
...
25
Washer Lock Hvy Helical 1/4 HUS-810040400
...
26
NUT.HEX..25-20.UNC HUS-532050675
...
27
Key Ign Molded Generic HUS-532122147
...
28
Fuse 30 AMP Auto Green HUS-532108824
...
29
Tube-Plastic 12" HUS-532109238
...
30
Cover, Key Ignition HUS-532141226
...
31
Switch Light Blk Blk Red HUS-532110712
...
32
Harness, Socket, Light (w/4152J) HUS-532136850
...
33
Bulb Light #1156 HUS-532004152
...
34
Bracket Switch Interlock HUS-532130890
...
35
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
36
Bracket Switch Clutch HUS-532108236
...
37
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
38
Washer Lock Internal Tooth 1/4 HUS-811150400
