Husqvarna PP1242 (1993) Tractor

Model: PP1242 (1993)

Back To Assemblies

Save Part Not Listed?
product name

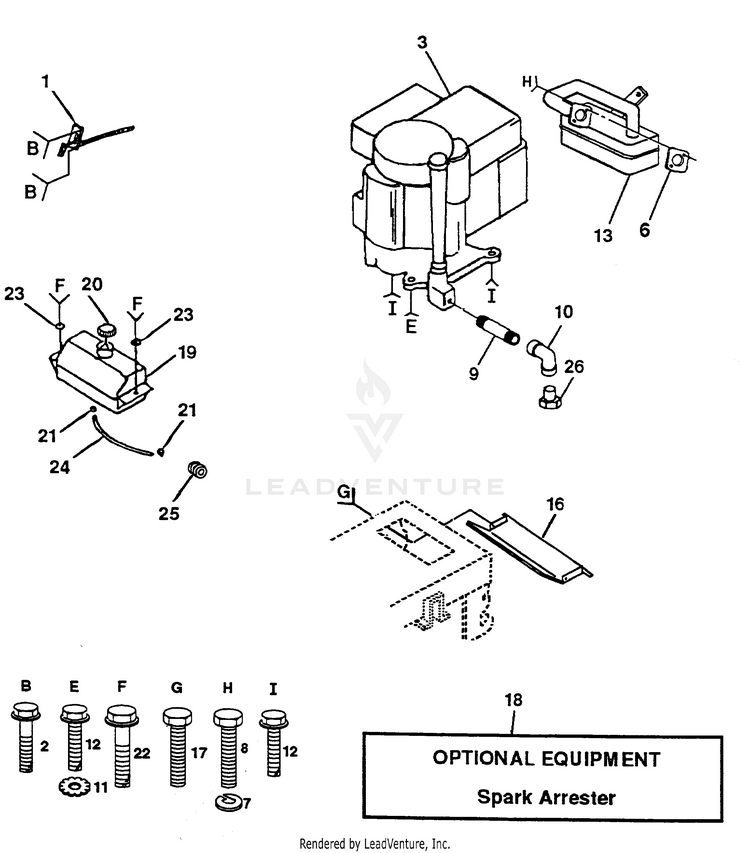

ENGINE

...
...
1
Control Th/ch RH Blk Tee 15 10 HUS-532132771
...
2
HCS 1/4C X 5/8 HUS-539990072
...
6
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
7
Washer Lock Hvy HlcI Spr 5/16 HUS-810040500
...
8
Screw Socket Hd 5/16-18 x .75 HUS-532192334
...
9
Nipple Pipe 3/8 Npt X 3" HUS-813280324
...
10
Elbow Std 90 Degree 3/8-18 Npt HUS-813200300
...
11
WASHER.3/8 HUS-539990118
...
12
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
13
Muffler LT B&S 12/12 5 HP HUS-532137348
...
16
Shield Heat Browning LT/YT HUS-532128953
...
17
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
18
Kit Spark Arrestor (Flat Scrn) HUS-532137180
...
19
TANK FUEL FRONT HUS-532184900
...
20
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
21
Clamp Hose Blk HUS-532123487
...
22
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
23
Washer 9/32 X 7/8 X 16 Ga HUS-819091416
...
24
Line Fuel 13" HUS-532008548
...
25
Bushing Snap Nyl Blk Fuel Line HUS-532124028
