Husqvarna PP1242 (1993) Tractor

Model: PP1242 (1993)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS AND ENCLOSURES

...
...
1
Chassis Wldmt 12 Ga 38/42 W/pvt HUS-532135034
...
2
HUS-532145009
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
6
Saddle Slk 6sp LT Flat HUS-532139806
...
7
Screw Thdrol 3/8-16x1/2 Ty-tt HUS-817490608
...
8
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
9
Dash Slkscr 1-pc M W/i N/c Sym HUS-532125447
...
10
Plug Button Blk 359 Dia Choke HUS-532005479
...
11
Panel Dash LH HUS-532122795
...
12
Cover Access Black Square HUS-532121794
...
13
Panel Slkscr Dash RH Wld Notch HUS-532124829
...
14
Screw Thdrol 3/8-16x1/2 Ty-tt HUS-817490608
...
15
Screw Mach TRHD 5/16-18uncx3/4 HUS-874180512
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
17
Hood Asm Pnt Weld HUS-532139809
...
18
Bumper Hood HUS-532126938
...
19
Lens Headlight Bar Clear HUS-532133954
...
20
Bezel Light HUS-532132257
...
21
WASHER - M6 HUS-734115201
...
22
Nut Pal HUS-532108067
...
24
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
25
WASHER HUS-734117201
...
26
Nut Crownlock 3/8-16 Unc HUS-873680600
...
27
Screw Thdrol 3/8-16x1/2 Ty-tt HUS-817490608
...
30
Fender Pnt HUS-532139810
...
31
Bracket Fender Repl 109873x HUS-532136619
...
32
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
33
Footrest Pnt LH (Husq Gray) HUS-532124899
...
34
FOOTREST LT/YT/GT RH HUS-532145243
...
35
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 HUS-872110606
...
36
Nut Crownlock 3/8-16 Unc HUS-873680600
...
37
Pad Footrest Ribbed HUS-532133671
...
38
Bracket Asm Pvt42 LH MWR Rear HUS-532134774
...
39
Bracket Asm Pvt42 RH MWR Rear HUS-532134775
...
40
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
50
Nut HUS-873680600
...
51
Washer 13/32 X 3/4 X 16 Ga HUS-819131216
...
53
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
54
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
58
WASHER.3/8 HUS-539990118

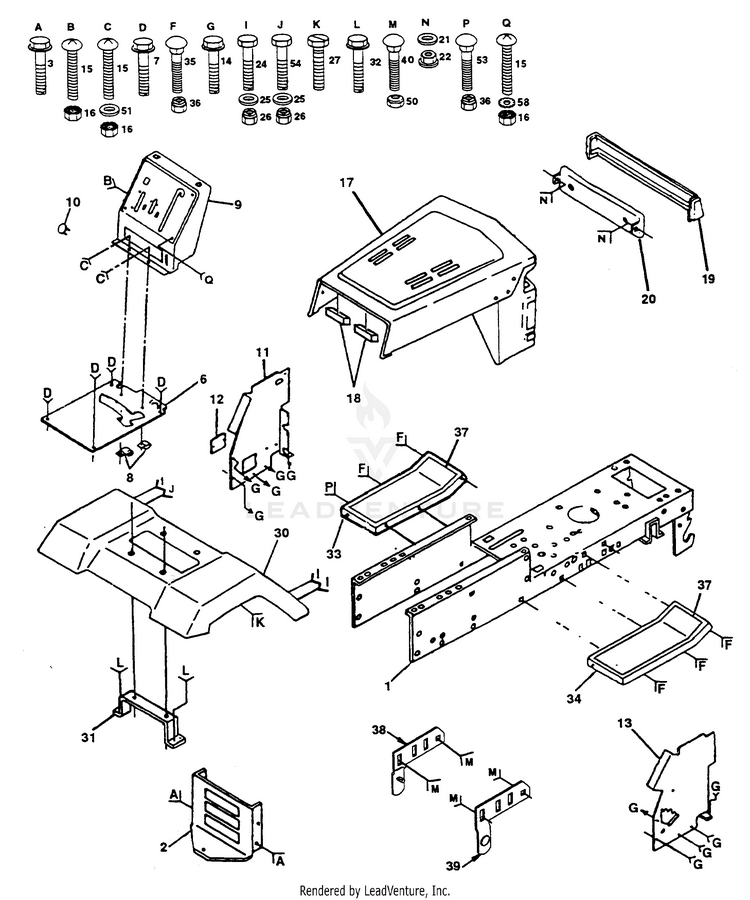

Schematic Image Zoomed
