Husqvarna PP1242 (1993) Tractor

Model: PP1242 (1993)

Back To Assemblies

Save Part Not Listed?
product name

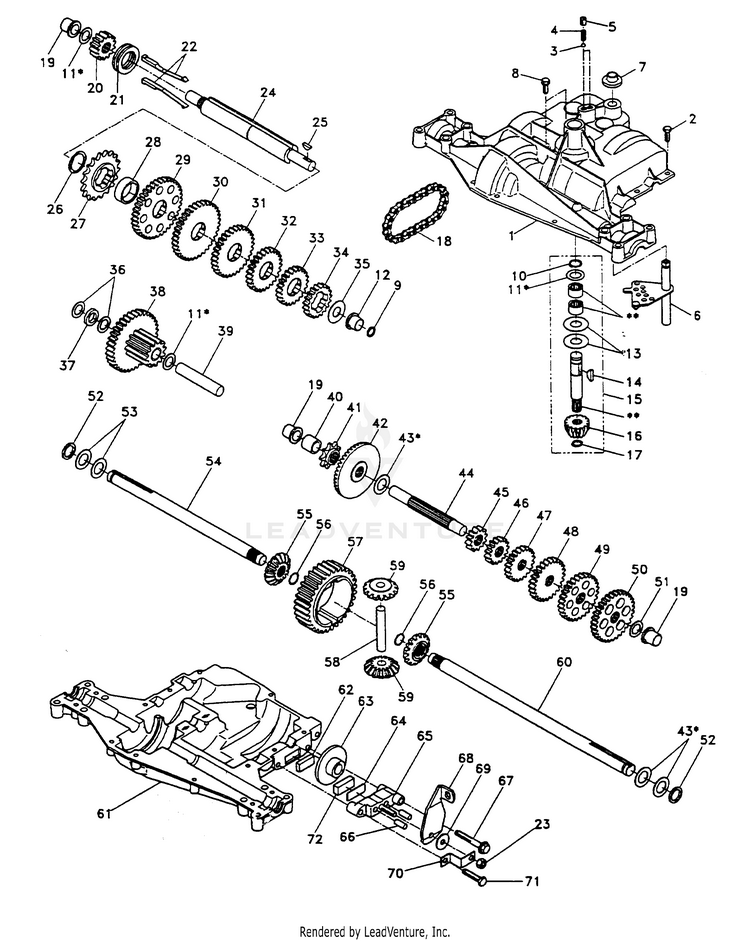

TRANSAXLE DANA - MODEL NUMBER 4360-48

...
...
1
Housing, Upper HUS-138248
...
2
Screw, Self-Tapping, Large 1/4-20 x .734 HUS-02274J
...
3
Ball, Detent HUS-134400
...
4
Spring, Detent HUS-105904X
...
5
Screw, Set HUS-105905X
...
6
Kit, Shifter Assembly HUS-138235
...
7
Boot, Shifter HUS-134399
...
8
Screw, Tapping w/Sealer HUS-134791
...
9
Square Ring HUS-138241
...
10
Ring, Retaining HUS-02267J
...
11
Assembly, Kit, Shim .625 Shaft Use in combinations to maintain proper clearances. HUS-134793
...
12
Bearing, Flange HUS-138240
...
13
Washer, Plain .632 x 1.38 x .046 HUS-120415X
...
14
Key, Woodruff, #9 HUS-02257J
...
15
Assembly, Kit, Input Shaft HUS-138234
...
16
Pinion, Bevel, 14 Teeth HUS-110078X
...
17
Ring, Retaining HUS-105909X
...
18
Chain, 24 Pitches HUS-105910X
...
19
Bearing, Flange HUS-105911X
...
20
Gear, Spur, 14 Teeth HUS-138242
...
21
Collar, Clutch HUS-138246
...
22
Assembly, Kit, Clutch Keys HUS-138236
...
23
Locknut 5/16-24 HUS-73810500
...
24
Shaft, Intermediate HUS-138243
...
25
Key, Woodruff, #61 HUS-02244J
...
26
Ring, Retaining HUS-105916X
...
27
Sprocket, 18 Teeth HUS-120470X
...
28
Spacer HUS-110070X
...
29
Gear, Spur, 37 Teeth HUS-108977X
...
30
Gear, Spur, 35 Teeth HUS-109254X
...
31
Gear, Spur, 30 Teeth HUS-120405X
...
32
Gear, Spur, 25 Teeth HUS-108980X
...
33
Gear, Spur, 22 Teeth HUS-120406X
...
34
Gear, Spur, 19 Teeth HUS-134796
...
35
Washer, Plain .640 x 1.37 x .061 HUS-105925X
...
36
Washer, Plain .632 x 1.00 x .026 HUS-02232J
...
37
Spacer .630 x 1.00 x .169 HUS-108978X
...
38
Assembly, Gear, Combination of 12 Teeth and 35 Teeth HUS-110079X
...
39
Shaft, Idler HUS-124639X
...
40
Spacer .635 x .875 x .755 HUS-120472X
...
41
Sprocket, 9 Teeth HUS-105928X
...
42
Gear, Bevel, 42 Teeth HUS-110084X
...
43
Assembly, Kit, Shim .750 Shaft Use in combinations to maintain proper clearances. HUS-134394
...
44
Shaft, Drive HUS-120473X
...
45
Gear, Spur, 12 Teeth HUS-105933X
...
46
Gear, Spur, 15 Teeth HUS-106151X
...
47
Gear, Spur, 20 Teeth HUS-120407X
...
48
Gear, Spur, 25 Teeth HUS-106589X
...
49
Gear, Spur, 28 Teeth HUS-120408X
...
50
Gear, Spur, 31 Teeth HUS-105937X
...
51
Washer, Plain .632 x 1.00 x .060 HUS-02226J
...
52
Washer, Neoprene HUS-502134401
...
53
Washer, Plain .758 x 1.25 x .031 HUS-02264J
...
54
Axle, L.H. HUS-120474X
...
55
Gear, Miter, 15 Teeth HUS-110081X
...
56
Ring, Retaining HUS-105941X
...
57
Gear, Spur, 32 Teeth HUS-110071X
...
58
Shaft, Cross HUS-120952X
...
59
Gear, Miter, 15 Teeth HUS-110082X
...
60
Axle, R.H. HUS-120475X
...
61
Housing, Lower HUS-138247
...
62
Puck, Friction HUS-120961X
...
63
Disc, Brake HUS-07294J
...
64
Spacer HUS-108989X
...
65
Jaw, Brake HUS-120953X
...
66
Pin, Dowel HUS-120954X
...
67
Screw, Self-Tapping, Large 5/16-18 x 2.25 HUS-134799
...
68
Lever, Actuating HUS-138244
...
69
Washer, Plain .321 x 1.00 x .055 HUS-108996X
...
70
Bracket, Anti-Rotation HUS-120956X
...
71
Screw, Self-Tapping, Large 5/16-18 x 1.44 HUS-106596X
...
72
Puck, Friction HUS-120951X
...
73
Grease HUS-120416X
