Husqvarna PP1242 (1993) Tractor

Model: PP1242 (1993)

Back To Assemblies

Save Part Not Listed?
product name

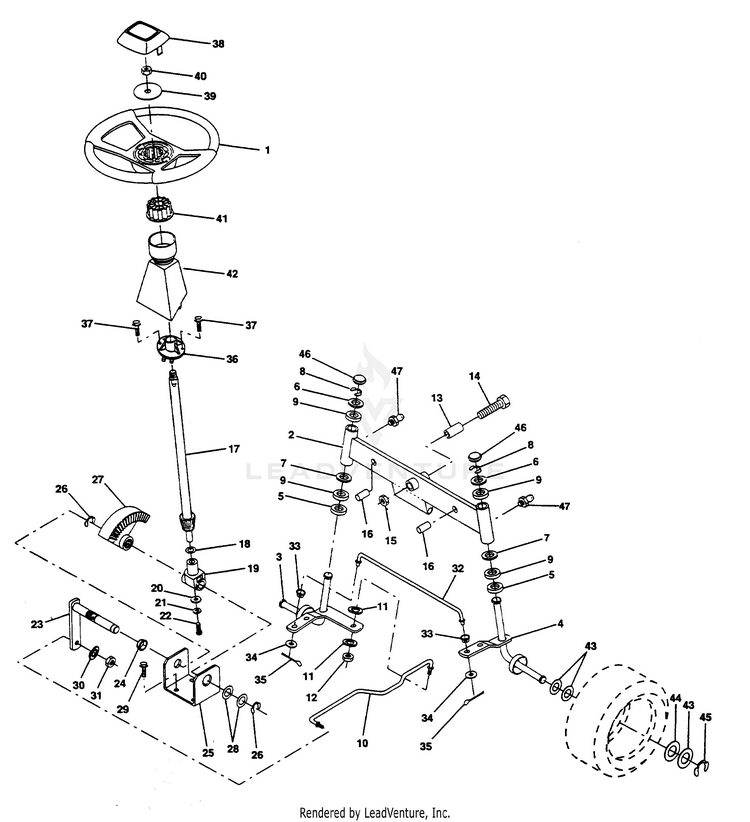

STEERING ASSEMBLY

...
...
1
STEERING WHEEL NLA HUS-532150546
...
2
Axle Asm Fr LT W/gzks 38/42 HUS-532142033
...
3
Spindle Asm LH HUS-532135227
...
4
Spindle Asm RH HUS-532135228
...
5
WASHER THRUST HUS-532006266
...
6
Washer 25/32 X 1-5/8 X 16 Ga HUS-532121748
...
7
Washer 27/32 X 1-1/4 X 16 Ga HUS-819272016
...
8
Ring Klip #t5304-75 HUS-812000029
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
10
Link Drag Sol Ball Jt 20 064 HUS-532130468
...
11
WASHER.3/8 HUS-539990118
...
12
Nut HUS-873680600
...
13
KIT-AXLE HUS-532155134
...
14
Bolt Hex 5/8-11 Unc X 3-1/2 HUS-874011056
...
15
Nut, Crownlock HUS-873681000
...
16
Pin Axle 5/8 X 1 55/1 54 Lg HUS-532132624
...
17
Shaft Asm Strg 5/8 X 15 19 LT HUS-532132614
...
18
Washer Thrust 515x 750x 033 HUS-532057079
...
19
SUPPORT SHAFT HUS-532160395
...
20
Washer 9/32 x 5/8 x 16 Ga HUS-819091016
...
21
Washer Lock Hvy Helical 1/4 HUS-810040400
...
22
SCREW HUS-532165857
...
23
PITMAN SHAFT ASSY HUS-532156365
...
24
Nyliner Snap In HUS-532109816
...
25
Bracket Steering HUS-532124036
...
26
Ring Klip #t5304-75 HUS-812000029
...
27
Gear Sector HUS-532136874
...
28
WASHER THRUST HUS-532006266
...
29
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
30
WASHER.3/8 HUS-539990118
...
31
Nut HUS-873680600
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
33
Bushing Link Drag Blk LR HUS-532126847
...
34
Washer Flat 13/32 x 7/8 x 14 Ga. HUS-819131414
...
35
Pin Cotter 1/8 X 3/4 Cad HUS-876020412
...
36
Bushing Strg 5/8 Id Dash HUS-532132196
...
37
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
...
38
STEERING WHEEL NLA HUS-532150546
...
39
Washer 13/32 x 2 3/8 x 12 Ga. HUS-819133812
...
40
Nut HUS-873680600
...
41
Adaptor Wheel Strg 640/ 635id HUS-532104820
...
42
Boot Shaft Steering Blk HUS-532124418
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-532121749
...
44
Washer 25/32 X 1-5/8 X 16 Ga HUS-532121748
...
45
Ring Klip #t5304-75 HUS-812000029
...
46
Cap Spindle Fr Top Blk HUS-532121232
...
47
Fitting, Grease HUS-532183226
Schematic Image Zoomed
