Husqvarna PP1238 (1991) Tractor

Model: PP1238 (1991)

Back To Assemblies

Save Part Not Listed?
product name

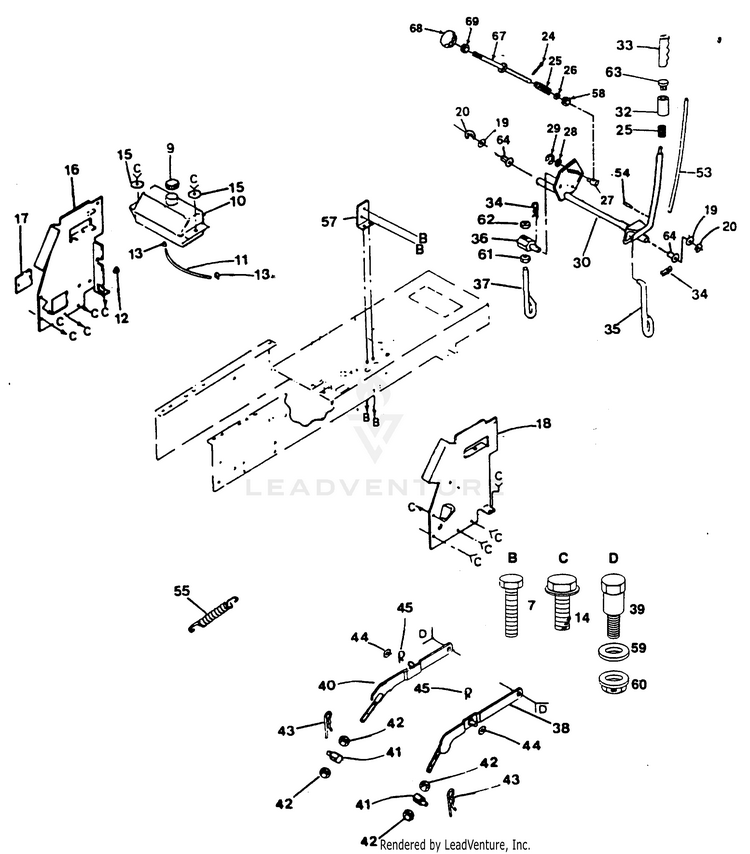

LIFT ADJUSTMENT

...
...
7
Screw, Hex., Tapping, #10-24 x 1/2 HUS-817021008
...
9
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
10
TANK FUEL FRONT HUS-532184900
...
11
Line, Fuel HUS-532008548
...
12
Grommet HUS-532124934
...
13
Clamp, Hose HUS-532123487
...
14
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
15
Washer 9/32 x 7/8 x 16 Ga. HUS-819091416
...
16
Panel, Dash, L. H. HUS-532122795
...
17
Cover, Access HUS-532121794
...
18
Panel, Dash, R. H. HUS-532126276
...
19
Washer 21/32 x 1-1/4 x 16 Ga. HUS-819212016
...
20
E-Ring HUS-812000022
...
24
COTTER PIN HUS-532003145
...
25
Spring HUS-532122512
...
26
Washer 13/32 x 5/8 x 16 Ga. HUS-819131016
...
27
Trunnion, Depth Stop HUS-532110810
...
28
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
29
Ring, Klip #T5304-37 HUS-812000037
...
30
Shaft, Lift HUS-532122507
...
32
PLUNGER BUTTON KIT HUS-532125925
...
33
GRIP, HANDLE HUS-532125631
...
34
RETAINER SPRING HUS-532085902
...
35
Link, Lift HUS-532110029
...
36
LIFT TRUNION HUS-532132793
...
37
Link, Lift, Adjustable HUS-532110448
...
38
Arm, Suspension, R. H. HUS-532121598
...
39
Bolt, Shoulder 3/8-16 HUS-532105848
...
40
Arm, Suspension, L. H. HUS-532121599
...
41
Trunnion Blk Zinc HUS-532175689
...
42
Nut Jam Hex 1/2-13 Unc HUS-873350800
...
43
Retainer, Spring HUS-532009135
...
44
Washer HUS-532052160
...
45
Retainer, Spring HUS-532004921
...
53
Lever, Rod HUS-532121006
...
54
Pin, Groove HUS-532105767
...
55
Spring, Extension HUS-532124446
...
57
Bracket, Switch HUS-532108236
...
58
Nut, Special HUS-532110807
...
59
Washer, Spring HUS-532110739
...
60
Nut HUS-873680600
...
61
Nut, Hex 7/16-20 HUS-873610700
...
62
Nut, Hex 7/16-20 HUS-873610700
...
63
PLUNGER BUTTON KIT HUS-532125925
...
64
Washer, Nylon HUS-532120183
...
67
Lever, Assembly HUS-532105768
...
68
Knob HUS-532100734
...
69
Rod, Lift Adjust HUS-532110809
