product name

Husqvarna PP1238 (1991) Tractor

Model: PP1238 (1991)

Back To Assemblies

Save Part Not Listed?
product name

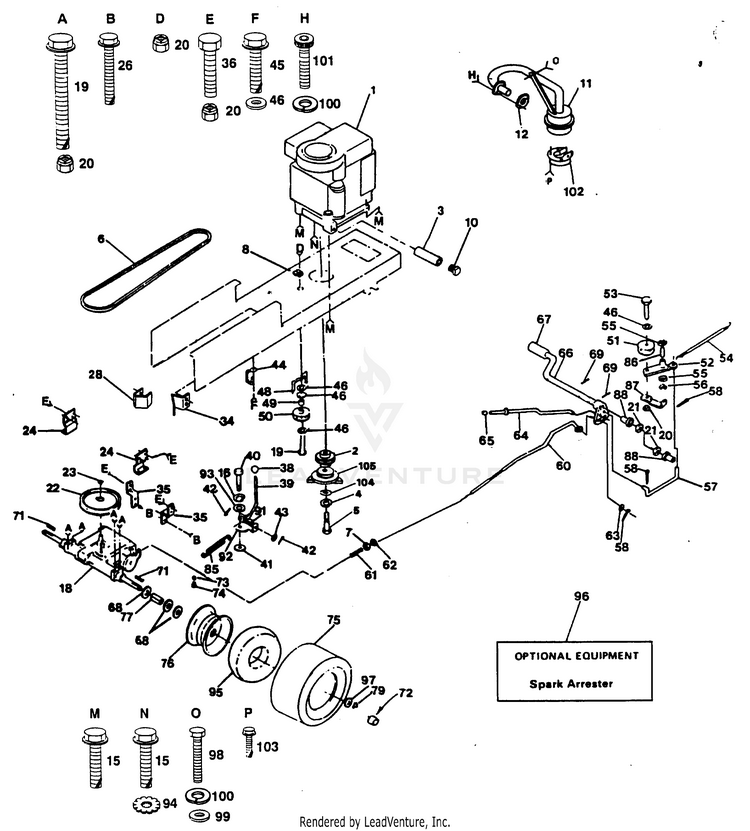

DRIVE

...
...
1
Engine 12 HP, Briggs & Stratton Model No. 281707, Type No. 0413-01 HUS-532124149
...
2
Engine Pulley LT/YT HUS-532140189
...
3
Pipe, Drain, Oil HUS-532127222
...
4
LOCKWASHER.7/16 HUS-539990247
...
5
Bolt, Hex 7/16-20 x 1-1/4 HUS-871130720
...
6
V-Belt, Drive HUS-532125907
...
7
Nut HUS-873680600
...
8
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
11
Muffler HUS-532125610
...
12
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
15
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
16
Washer, Lock 1/4 HUS-810040400
...
18
Transaxle Foote, 6 Speed, Model No. 4360-7 HUS-532120898
...
19
Bolt, Hex 3/8-16 x 2-3/4 HUS-874760644
...
20
Nut, Crownlock 3/8-16 HUS-873680600
...
21
Washer 21/32 x 1 x 16 Ga HUS-819211616
...
22
Pulley, Transaxle HUS-532123666
...
23
Ring, Retaining HUS-532002267
...
24
Bracket, Transaxle HUS-532109167
...
26
HCS.5/16-18X3/4 HUS-539976934
...
28
Keeper, Belt, L.H. HUS-532127275
...
34
Keeper, Belt, R.H. HUS-532127274
...
35
Strap, Torque, Transaxle HUS-532121520
...
36
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
38
Knob, Shift HUS-532106933
...
39
Rod, Shift HUS-532124461
...
40
Bolt, Shift Plate HUS-871040412
...
41
Washer, Shift Plate HUS-532105701
...
42
Pin, Cotter 1/8 x 1 HUS-876020416
...
43
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
44
Keeper Belt Chassis Span Ctr HUS-532136715
...
45
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
46
WASHER HUS-734117201
...
48
Retainer, Belt HUS-532109070
...
49
Spacer, Split HUS-532124965
...
50
Idler, Flat HUS-532123674
...
51
Pulley, Idler V Groove HUS-532139245
...
52
Arm,Idler HUS-532123789
...
53
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
54
Spring, Return Clutch HUS-532105709
...
55
Washer, Hardened HUS-532110812
...
56
Ring, Klip HUS-812000039
...
57
LINK.CLUTCH.7.66.2005 HUS-532199652
...
58
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
60
ROD HUS-532131867
...
61
SPRING, BRAKE ROD HUS-532151332
...
62
Nut, Hex 3/8-16 HUS-873220600
...
63
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
64
Rod, Brake, Parking HUS-532125638
...
65
Cap, Plunger HUS-532071673
...
66
Shaft, Foot Pedal HUS-532122424
...
67
Cover, Pedal HUS-532008883
...
68
Washer 25/32 x 1-1/4 x 16 HUS-532121749
...
69
DRIVE PIN HUS-532002882
...
71
Key, Square 2.5 x .1845/.1865 HUS-532123583
...
72
Cap, Hub HUS-532104757
...
73
Cap, Valve HUS-532059192
...
74
Stem, Valve HUS-532065139
...
75
Tire, Rear HUS-532123969
...
76
Rim Asm 8" rear Service HUS-532125122
...
77
Spacer HUS-532109502
...
79
E-Ring HUS-812000001
...
85
Spring Return Brake HUS-532146682
...
86
Bearing HUS-532105706
...
87
Retainer, Belt HUS-532123205
...
88
Bearing, Nylon HUS-532120183
...
91
Spring HUS-532105700
...
92
Plate, Shift HUS-532106919
...
93
WASHER - M6 HUS-734115201
...
94
WASHER.3/8 HUS-539990118
...
95
Tube HUS-532007152
...
96
Spark Arrester HUS-532123110
...
97
Washer 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
98
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
99
Washer 9/32 x 5/8 x 16 Ga. HUS-819091016
...
100
Washer, Lock, Heavy Helical Spring HUS-810040500
...
101
Screw, Hex Head Cap 5/16-18 x 5/8 HUS-871070510
...
102
Deflector, Muffler HUS-532101326
...
103
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
104
Washer 1-1/2 x 15/32 x 1/4 HUS-532126197
...
105
KIT CLUTCH ELECT REPL HUS-532142600
...
xx
Decal, Engine Maintenance Not Shown. HUS-532121120
...
xx
Decal, HP, Engine Not Shown. HUS-532120601
...
xx
Decal, V-Belt, Ground Drive Not Shown. HUS-532109199
