Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

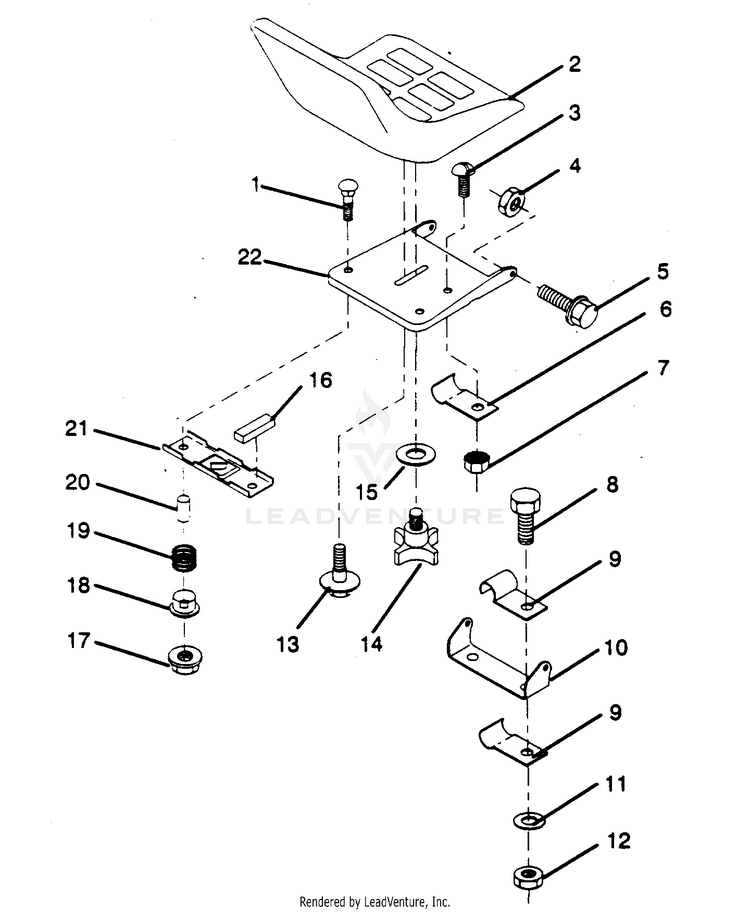

SEAT

...
...
1
Bolt, Carriage 1/4-20 x 1-1/4 HUS-872170410
...
2
Seat HUS-532127423
...
3
Screw, Slotted Pan Head #10-32 x 1/2 HUS-874641008
...
4
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
5
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
6
Clip, Insulated HUS-532124967
...
7
HUS-873161000
...
8
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
9
Clip, Insulated HUS-532126471
...
10
Bracket, Pivot, Seat HUS-532126656
...
11
WASHER HUS-734117201
...
12
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
13
Bolt, Shoulder HUS-532127018
...
14
Knob Seat Adj. Wingnut HUS-532166369
...
15
Washer 17/32 x 1-3/16 x 12 Ga. HUS-819171912
...
16
Strip, Foam HUS-532121251
...
17
Nut Crownlock 1/4-20 unc HUS-873680400
...
18
Bushing, Snap HUS-532121248
...
19
Spring, Compression HUS-532121250
...
20
Spacer, Split 28 ld. x .88 Large HUS-532121249
...
21
Bracket Mounting Switch HUS-532174648
...
22
Pan, Seat HUS-532124294
