Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

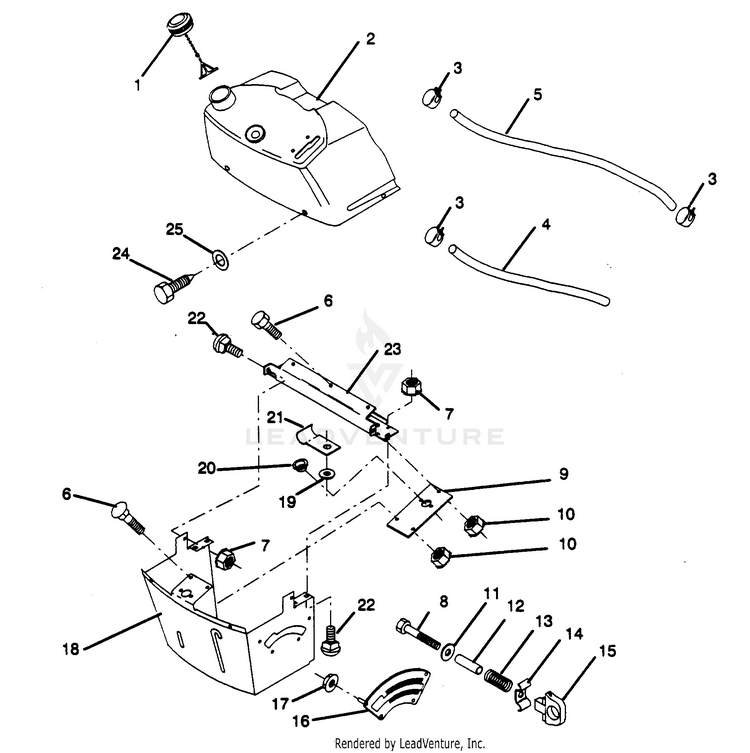

DASH

...
...
1
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
2
Assembly, Dash & Fuel Tank HUS-532124540
...
3
Clamp, Hose HUS-532123487
...
4
Line, Fuel HUS-532008548
...
5
FUEL LINE HUS-532000295
...
6
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
7
Nut Crownlock 1/4-20 unc HUS-873680400
...
8
Bolt, Fin. Hex 1/4-20 x 1 1/2 HUS-874760432
...
9
Plate, Support HUS-532130051
...
10
Nut Crownlock 1/4-20 unc HUS-873680400
...
11
WASHER - 15X7.3X1.6 HUS-734116301
...
12
Spacer, Split HUS-532123494
...
13
SPRING HUS-532002876
...
14
Knob, Height Retainer HUS-532123493
...
15
Knob, Height Stop HUS-532126115
...
16
Adjustment, Quadrant Height HUS-532122023
...
17
Nut, Self Thread 3/16-18 HUS-532124346
...
18
Support, Dash HUS-532121789
...
19
WASHER - M6 HUS-734115201
...
20
SNAP BUSHING T HUS-532009151
...
21
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
22
Bolt, Carriage 1/4-20 x 1/2 Gr.5 HUS-872110404
...
23
Brace, Cross HUS-532122016
...
24
Screw, Self-Tapping 1/4-20 x 1/2 HUS-818000408
...
25
WASHER HUS-734115301
