Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

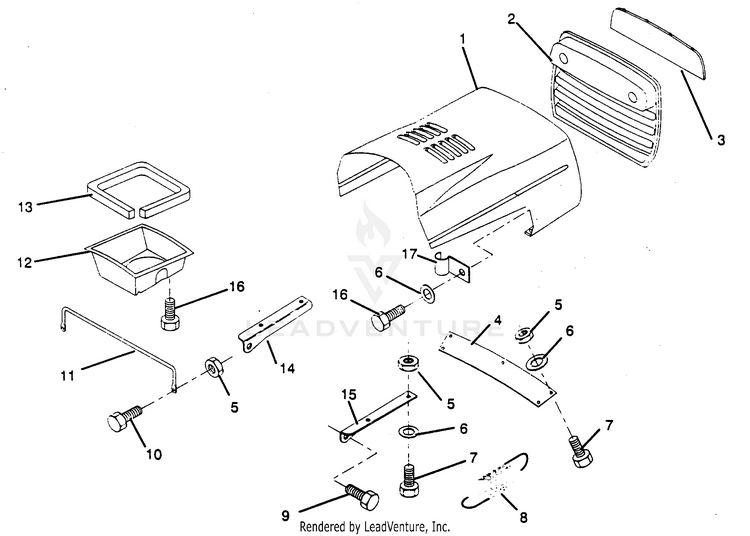

HOOD

...
...
1
Hood HUS-532124816
...
2
Grill HUS-532127029
...
3
Lens HUS-532122035
...
4
Strap, Grill HUS-532124851
...
5
Nut Crownlock 1/4-20 unc HUS-873680400
...
6
Washer 9/32 x 5/8 x 16 Ga. HUS-819091016
...
7
HCS 1/4C X 5/8 HUS-539990072
...
8
Spring, Extension HUS-532124657
...
9
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
10
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
11
Brace, Hood HUS-532123693
...
12
Duct, Air HUS-532123840
...
13
Strip, Foam HUS-532120537
...
14
Bracket, Hood, L.H. HUS-532122548
...
15
Bracket, Hood, R.H. HUS-532122549
...
16
Screw, Fin. Hex #13-16 Hi-Lo x 5/8 HUS-817411310
...
17
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
xx
Decal Stripe (Hood L.H.) Not Shown. HUS-532127642
...
xx
Decal Stripe (Hood R.H.) Not Shown. HUS-532127643
...
xx
Decal, Grill Not Shown. HUS-532127630
...
xx
Decal (Light Box) Not Shown. HUS-532126860
...
xx
Decal, Grill and Fender, Bottom Left Grill Not Shown. HUS-532127622
