Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
Pulley HUS-532123385
...
2
Ring, Retaining HUS-532002267
...
3
Transaxle, Foote 6 Speed, Model No. 4360-18 HUS-532123655
...
4
Key, Woodruff #9 HUS-532125096
...
5
Nut, Crownlock 3/8-16 HUS-873680600
...
6
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
7
Strap, Torque HUS-532123378
...
8
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
9
Spring Return Brake HUS-532146682
...
10
Cap, Valve HUS-532059192
...
11
Stem, Valve HUS-532065139
...
12
Tube HUS-532008134
...
13
TIRE.FRT.(16X6).TURF.SAVER HUS-532122075
...
14
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
15
Washer 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
16
E-Ring HUS-812000001
...
17
Cap, Axle HUS-532104757
...
18
Rim HUS-532124844
...
19
Spacer HUS-532123409
...
20
Key, Square HUS-532123583
...
21
Bolt, Fin, Hex 3/8-16x 2-3/4 HUS-874760644
...
22
Bracket, Transaxle HUS-532123377
...
23
HCS.5/16-18X3/4 HUS-539976934
...
24
Pin, Cotter 1/8 X 1 HUS-876020416
...
25
Extension, Spring HUS-532128085
...
26
Link, Shift HUS-532123632
...
27
Washer, Lock Hvy. Helical Spring 1/4 HUS-810040400
...
28
Bolt, Fin, Hex 1/4-28 UNF x 3/4 Gr.8 HUS-871040412
...
29
WASHER - M6 HUS-734115201
...
30
Knob, Shift Contol HUS-532122011
...
31
Retainer, Knob HUS-532123692
...
32
Assembly, Shift Handle HUS-532125976
...
33
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
34
Washer, Shift Plate HUS-532105701
...
35
Arm, Shift HUS-532123539
...
36
NUT HUS-873610500
...
37
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500

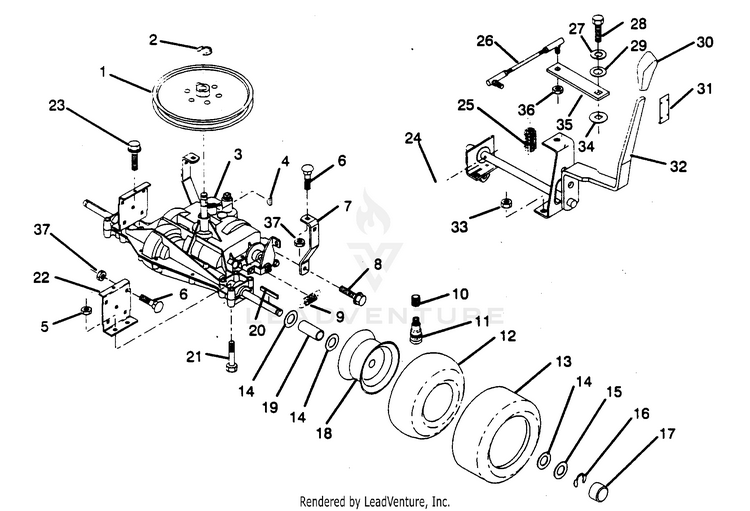

Schematic Image Zoomed
