Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

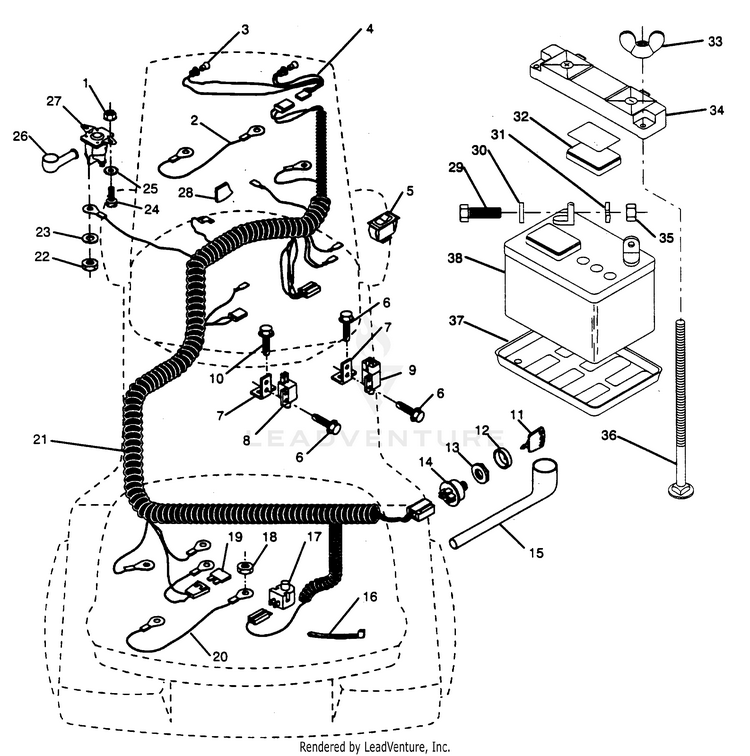

ELECTRICAL

...
...
1
Nut Crownlock 1/4-20 unc HUS-873680400
...
2
Assembly, Cable HUS-532105002
...
3
Bulb Light #1156 HUS-532004152
...
4
Harness, Socket, Light (w/4152J) HUS-532136850
...
5
Switch, Light HUS-532110712
...
6
Screw, Tap Hex #10-24 x 1/2 HUS-817021008
...
7
Bracket, Switch HUS-532108236
...
8
Switch, Interlock (Clutch/Brake) HUS-532104445
...
9
SWITCH.N.C *SUBS/1* HUS-539101080
...
10
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
...
11
Key, Molded HUS-532122147
...
12
Cover, Key Ignition HUS-532141226
...
13
Nut, Ignition HUS-532124211
...
14
KIT.SWITCH.IGNITN HUS-532365402
...
15
Cover, Ignition Switch HUS-532124083
...
16
WIRE TIE HUS-532007192
...
17
SWITCH.SNAPMOUNT.NC HUS-532421062
...
18
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
19
Fuse HUS-532108824
...
20
CABLE HUS-532002955
...
21
Harness, Ignition HUS-532124190
...
22
NUT.HEX..25-20.UNC HUS-532050675
...
23
WASHER, LOCK 1/4 HUS-810040400
...
24
HCS.1/4-20.X1/2 HUS-539990071
...
25
WASHER, LOCK 1/4 HUS-810040400
...
26
Cover, Terminal Red HUS-532154336
...
27
KIT SOLENOID .95 HUS-532146154
...
28
Stop, Choke HUS-532125760
...
29
Bolt, Hex 1/4-20 UNC x 3/4 HUS-874760412
...
30
Washer 9/32 x 5/8 x 16 Ga. HUS-819091016
...
31
Washer, Lock Hvy. Helical Spring 1/4 HUS-810040400
...
32
Cap, Battery HUS-532121264
...
33
KNOB BLK 1/2 NYLON HUS-532146525
...
34
SUB= 150109 HUS-532150109
...
35
NUT.HEX..25-20.UNC HUS-532050675
...
36
Bolt, Carriage 1/4-20 UNC x 7-1/2 HUS-872240460
...
37
TRAY.BATTERY HUS-532007603
...
38
BATTERY.DRY.30.AMP HUS-532123899
...
xx
Briggs & Stratton, Operating and Maintenance Manual Not Shown. HUS-MS-9250
...
xx
Sheet, Instruction 15ø Slope Not Shown. HUS-532101539
...
xx
Manual, Operators Not Shown. HUS-532127735
...
xx
Decal, Battery Not Shown. HUS-532121549
...
xx
Manual, Parts Not Shown. HUS-532127756
