Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

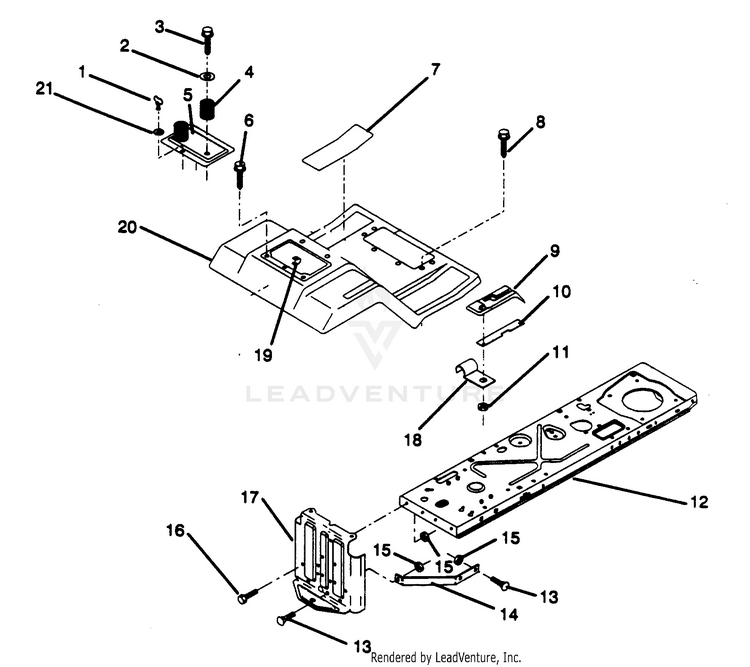

FENDER/CHASSIS

...
...
1
Stud 1/4 Turn HUS-532123650
...
2
Washer 13/32 x 1-1/4 x 12 Ga. HUS-819132012
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
4
SRPING.SEAT HUS-539110300
...
5
Door, Fender HUS-532124852
...
6
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
7
Pad, Footrest HUS-532124144
...
8
HCS.5/16-18X3/4 HUS-539976934
...
9
Console, Shift Control HUS-532126995
...
10
Bar, Shift Lock HUS-532124307
...
11
Nut, Self-Thd Wsh-Hd 3/16 HUS-532124346
...
12
Assembly, Frame HUS-532123645
...
13
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
14
Brace, Drawbar HUS-532123379
...
15
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
16
HCS.5/16-18X3/4 HUS-539976934
...
17
Drawbar HUS-532127880
...
18
Clip, Insulated HUS-532126470
...
19
Receptacle, 1/4 Turn HUS-532105839
...
20
Fender/Footrest HUS-532124881
...
21
Retainer, 1/4 Turn HUS-532105838
...
xx
Decal, Belt Installation (under footrest) Not Shown. HUS-532123408
...
xx
Decal, Inst. Oper. Not Shown. HUS-532138269
...
xx
Decal, Caution (rear of fender) Not Shown. HUS-532120822
...
xx
Decal, Speed/Deck Size, Chassis Not Shown. HUS-532127638
...
xx
Decal, Fender, L.H. Not Shown. HUS-532127633
...
xx
Decal, Fender, R.H. Not Shown. HUS-532127634
...
xx
Decal, Grill and Fender, Rear Fender Not Shown. HUS-532127622
