Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

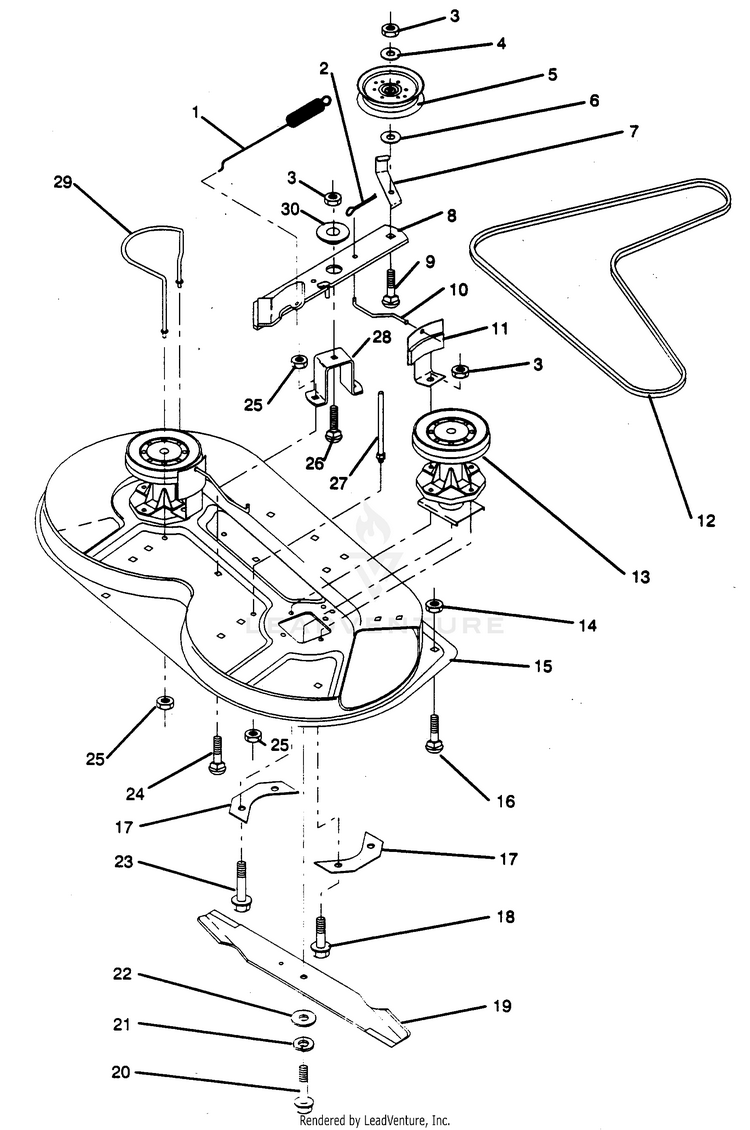

MOWER DECK (CONTINUED)

...
...
1
Spring, Mower Clutch HUS-532140064
...
2
COTTER PIN HUS-532003145
...
3
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
4
Washer 13/32 x 7/8 x 12 Ga. HUS-819131412
...
5
Idler, Flat HUS-532121316
...
6
Washer 13/32 x 1-3/8 x 3 Ga. HUS-819132203
...
7
Guide, Belt HUS-532126756
...
8
Assembly, Mower Idler Arm HUS-532123702
...
9
Bolt, Carriage 3/8-16 x 2 1/4 HUS-872110618
...
10
Rod, Brake HUS-532122049
...
11
Assembly, Brake HUS-532106578
...
12
V-Belt HUS-532124293
...
13
MANDREL ASS'Y HUS-532124208
...
14
Nut, Crownlock 1/4-20 HUS-873680400
...
15
HUS-532144727
...
16
Bolt, Carriage 1/4-20 x 1/2 HUS-872140404
...
17
Support, Plate Jackshaft HUS-532100668
...
18
Screw Hex Thdrol. 3/8-16 x 7/8 HUS-817490614
...
19
BLADE 36" NONVENT HUS-532143969
...
20
Bolt, Fin. Hex 3/8-24 UNF x 1-1/2 Gr. 5 HUS-874610624
...
21
WASHER.3/8 HUS-539990118
...
22
Washer 13/32 x 1-1/4 x 12 Ga. HUS-819132012
...
23
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
24
Bolt, Carriage 5/16-18 UNC x 5/8 HUS-872140505
...
25
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
26
Bolt, Carriage 3/8-16 UNC x 1 Gr. 5 HUS-872110608
...
27
Guide, R.H. Rear Belt HUS-532123439
...
28
Support, Idler Arm HUS-532122051
...
29
Guide, L.H. Belt HUS-532123673
...
30
Spacer Retainer HUS-532165723
