Husqvarna PP1236 (1991) Tractor

Model: PP1236 (1991)

Back To Assemblies

Save Part Not Listed?
product name

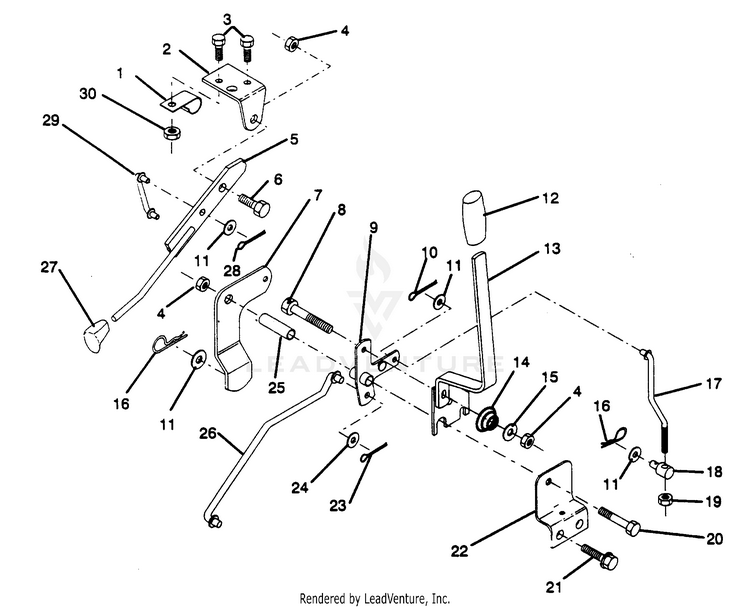

MOWER LIFT LEVER

...
...
1
Clip, Insulated HUS-532126470
...
2
Bracket, Mower Clutch HUS-532122018
...
3
HCS.1/4-20.X1/2 HUS-539990071
...
4
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
5
Assembly, Clutch Lever HUS-532145187
...
6
Bolt, Shoulder HUS-532106451
...
7
Assembly, Mower Clutch Arm HUS-532123491
...
8
Bolt, Hex 3/8-16 UNC x 2-1/4 HUS-874760636
...
9
Assembly, Bellcrank Lift HUS-532121930
...
10
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
11
Washer, 13/32 x 13/16 x 16 Ga. HUS-819131316
...
12
Grip, Handle HUS-532122027
...
13
Assembly, Lift Handle HUS-532127028
...
14
Spring, Compression HUS-532123496
...
15
WASHER HUS-734117201
...
16
Retainer, Spring HUS-532004921
...
17
Link, Front Lift HUS-532123654
...
18
Trunnion Adj 94 HUS-532142028
...
19
Nut, Hex 3/8-16 HUS-873220600
...
20
Bolt, Fin. Hex 3/8-16 UNC x 2-3/4 HUS-874760644
...
21
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
22
Bracket, Mower Height HUS-532121929
...
23
Pin, Cotter 1/8 x 1 HUS-876020416
...
24
Washer HUS-532052160
...
25
Tube, Spacer HUS-532121933
...
26
Rod, Mower Lift HUS-532141470
...
27
Knob HUS-532121466
...
28
COTTER PIN HUS-532003145
...
29
Link, Mower Clutch HUS-532123671
...
30
Nut, Crownlock 1/4-20 HUS-873680400
