Husqvarna PP11536KA (1995) Tractor

Model: PP11536KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
Pulley HUS-532123385
...
2
Ring, Retaining HUS-532002267
...
3
Transaxle, Dana 5 Spd. Model No. 4360-78 HUS-532142602
...
4
Key, Woodruff #9 HUS-532125096
...
5
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
6
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
7
Strap, Torque HUS-532123378
...
8
HCS.5/16-18X3/4 HUS-539976934
...
9
Spring Return Brake HUS-532146682
...
10
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
11
Key, Square HUS-532123583
...
12
Bolt, Fin Hex 3/8-16 UNC 2-3/4 HUS-874760644
...
15
Washer HUS-532052160
...
16
Support Handle Shift LH HUS-532124600
...
17
Link, Shift HUS-532123632
...
18
Bolt, Shift Plate HUS-871040412
...
19
Washer, Lock 1/4 HUS-810040400
...
20
WASHER - M6 HUS-734115201
...
21
Arm, Shift HUS-532123484
...
22
Washer, Shift Plate HUS-532105701
...
23
Knob, Rd 1/2-13 HUS-532106933
...
24
Rod Shift HUS-532128215
...
25
Pin, Cotter 1/8 x 1 HUS-876020416
...
26
NUT HUS-873610500
...
28
Extension, Spring HUS-532128085
...
29
Support Handle Shift RH HUS-532128084
...
31
Spacer Axle HUS-532109502
...
33
Nut, Crownlock 3/8-16 HUS-873680600
...
35
E-Ring HUS-812000001
...
36
HCS.1/4-20.X1/2 HUS-539990071

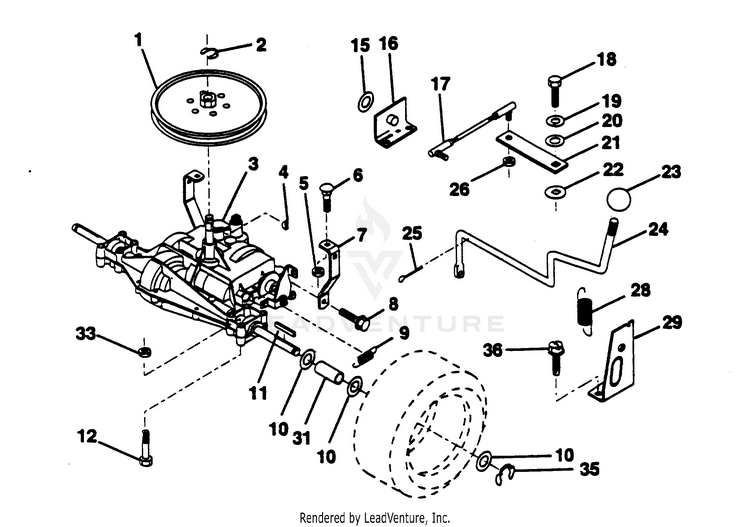

Schematic Image Zoomed
